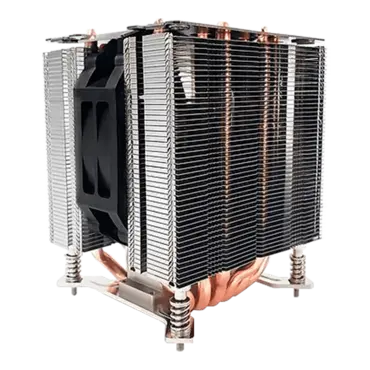

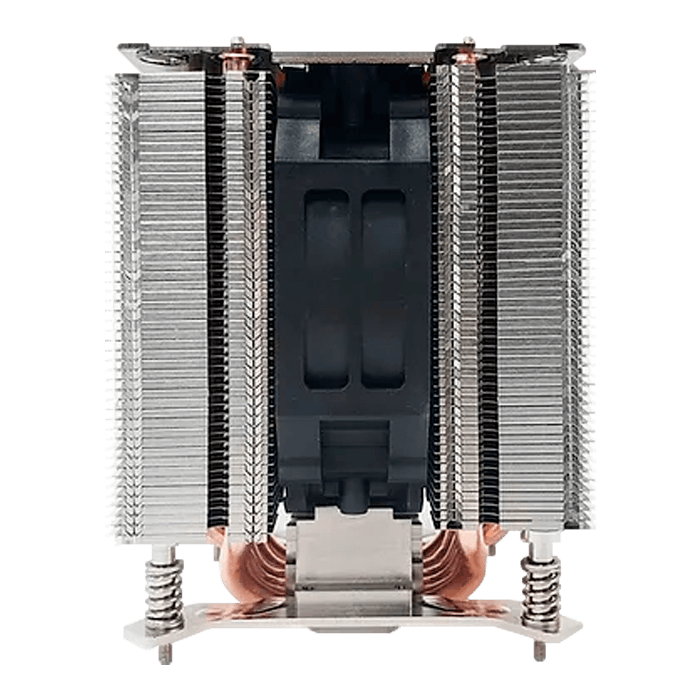

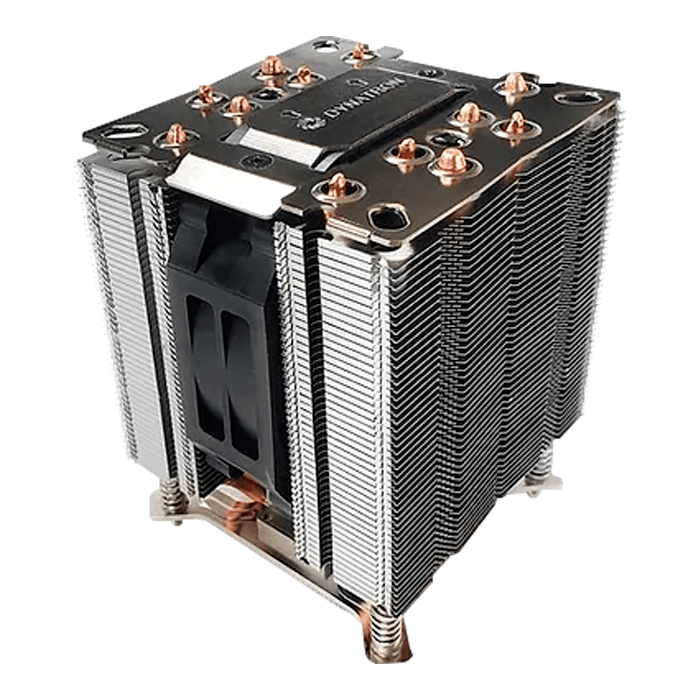

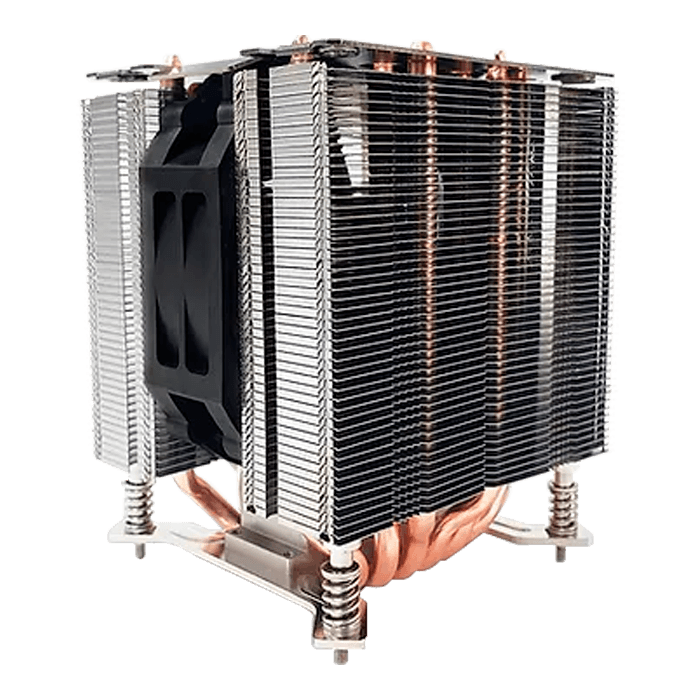

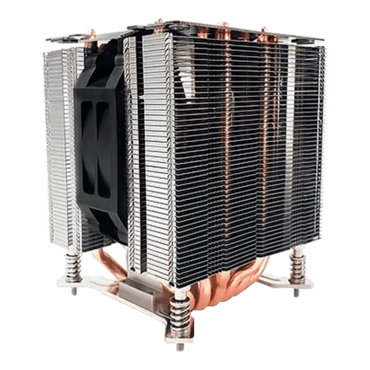

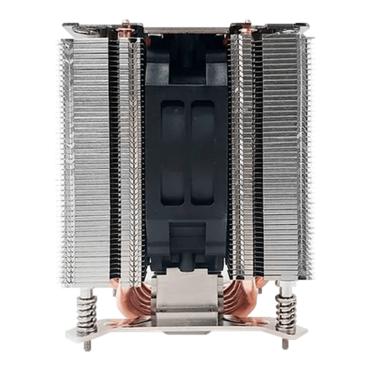

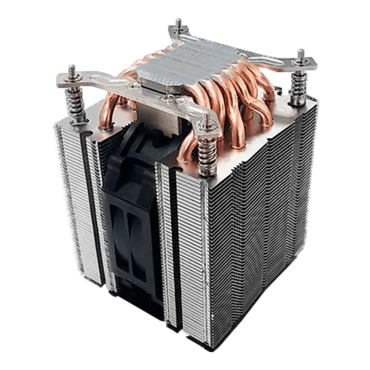

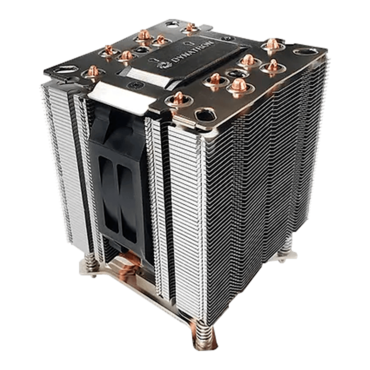

Q11, 130mm Height, 125W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 16160210
- Manufacturer: DYNATRON
- MPN: Q11
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$37.44
Q11, 130mm Height, 125W TDP, Copper/Aluminum CPU Cooler
The Dynatron Q11 CPU cooler is designed for Q11- 4U Active cooler
The Dynatron Q11 CPU cooler is designed for Q11- 4U Active cooler
| CPU Support | Intel |
| CPU Socket | Socket LGA 1700 |
| Weight | 710 g |
| Material | Heatpipes with Aluminum Base and Aluminum Fin Stack |
| Solution | 4U Server and Up |
| Dimensions | 95 x 95.0 x 130 mm |
| Fan Dimension | 103 x 103 x 30 mm |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Speed |
At Duty Cycle 0~20%: 800± 200 RPM At Duty Cycle 50%: 1300± 10% RPM At Duty Cycle 100%: 1800 ± 10% RPM |
| Power |
At Duty Cycle 0~20%: 0.3 W At Duty Cycle 50%: 0.48 W At Duty Cycle 100%: 0.96 W |
| Air Flow |
At Duty Cycle 0~20%: 14.88 CFM At Duty Cycle 50%: 25.26 CFM At Duty Cycle 100%: 35.03 CFM |
| Air Pressure |
At Duty Cycle 0~20%: 0.44 mm-H2O At Duty Cycle 50%: 1.16 mm-H2O At Duty Cycle 100%: 2.06 mm-H2O |
| Acoustical Noise |
At Duty Cycle 0~20%: 10.8 dBA At Duty Cycle 50%: 15.2 dBA At Duty Cycle 100%: 21.3 dBA |
| Lead Wir Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
