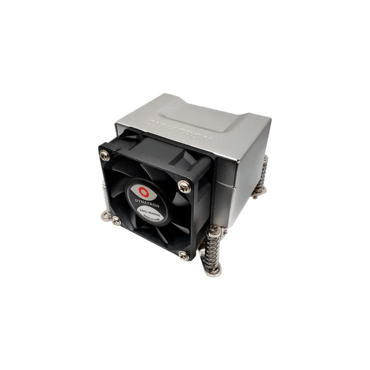

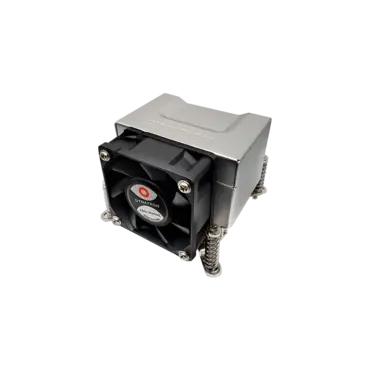

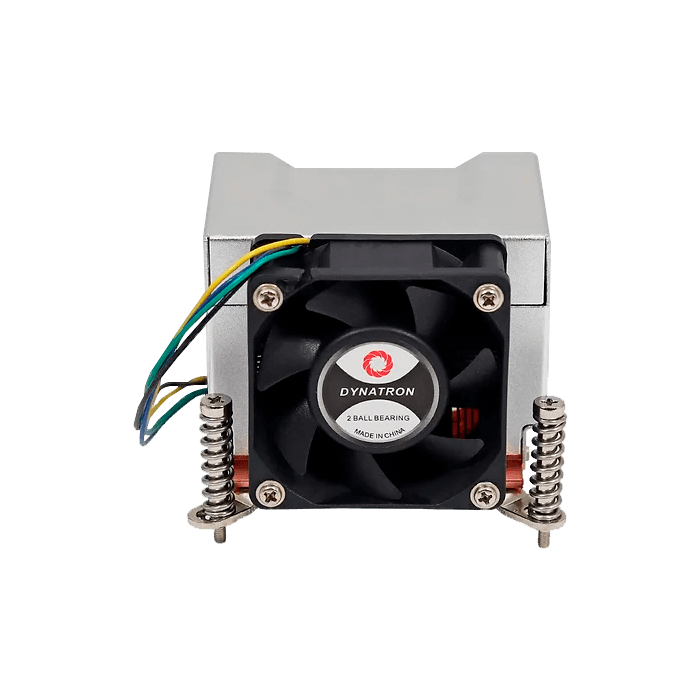

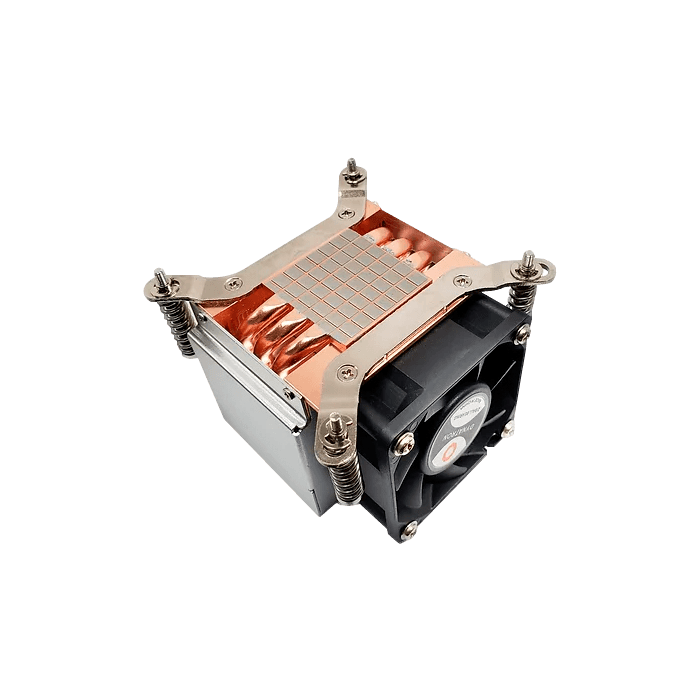

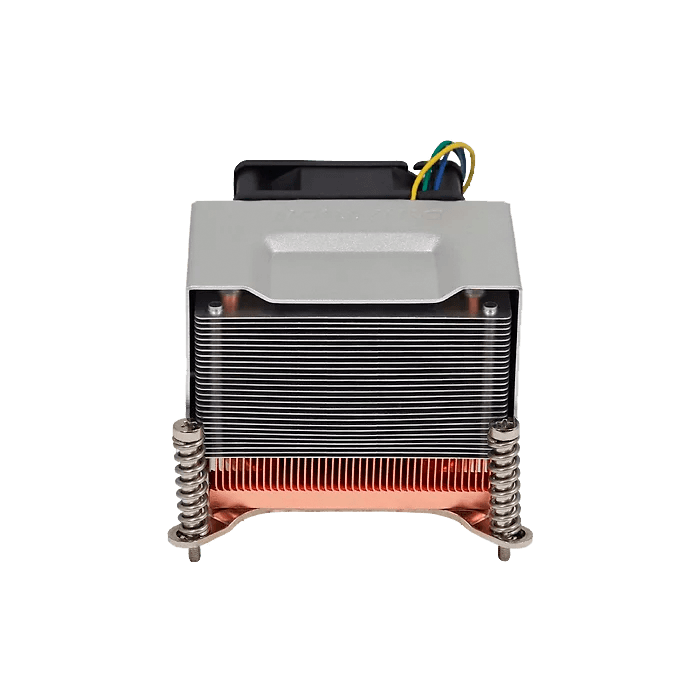

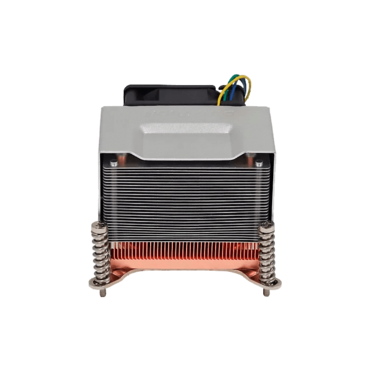

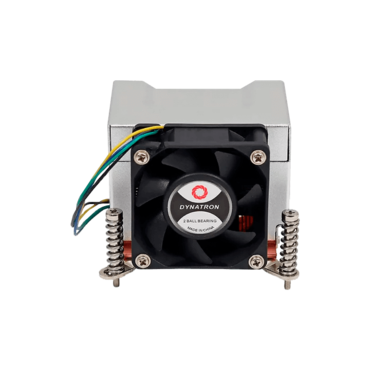

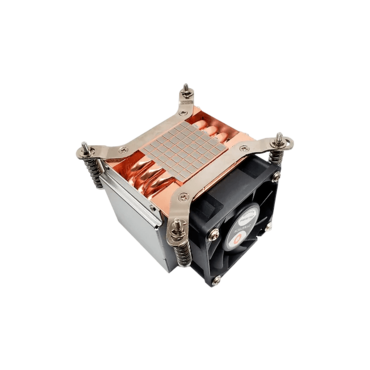

Q5, Socket LGA 1700, 65.1mm Height, 125W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 14795244
- Manufacturer: DYNATRON
- MPN: Q5
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$59.12
| CPU Support | Intel |
| CPU Socket | Socket LGA 1700 |
| Weight | 515.2g |
| Material | Copper Base & Aluminum Fins with Heat Pipe embedded |
| Solution | 2U Server and Up |
| Dimensions | 90.7 x 85.0 x 65.1 mm |
| Fan Dimension | 60 x 60 x 25 mm |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Speed |
At Duty Cycle 0~20%: 1600± 200 RPM At Duty Cycle 50%: 4000± 10% RPM At Duty Cycle 100%: 8000± 10% RPM |
| Power |
At Duty Cycle 0~20%: 1.20 W At Duty Cycle 50%: 2.28 W At Duty Cycle 100%: 7.20 W |
| Air Flow |
At Duty Cycle 0~20%: 9.28 CFM At Duty Cycle 50%: 23.21 CFM At Duty Cycle 100%: 46.41 CFM |
| Air Pressure |
At Duty Cycle 0~20%: 0.76 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 19.04 mm-H2O |
| Acoustical Noise |
At Duty Cycle 0~20%: 18 dBA At Duty Cycle 50%: 37.89 dBA At Duty Cycle 100%: 52.94 dBA |
| Lead Wir Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
