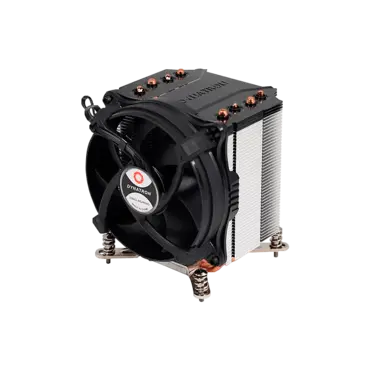

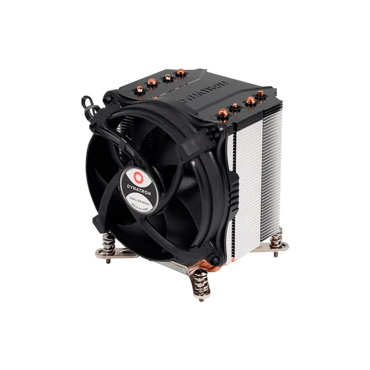

Q6, Socket LGA 1700, 110mm Height, 195W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 14675816
- Manufacturer: DYNATRON
- MPN: Q6
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$29.71
Q6, Socket LGA 1700, 110mm Height, 195W TDP, Copper/Aluminum CPU Cooler
The Dynatron Q6 CPU cooler is designed for Q6- 3U & Up Active with heatpipe
The Dynatron Q6 CPU cooler is designed for Q6- 3U & Up Active with heatpipe
| CPU Support | Intel |
| CPU Socket | LGA 1700 |
| Solution | 3U and Up, Workstation |
| Dimensions | 91.0 x 91.0 x 110.0 mm |
| Weight | 530 ± 5 g |
| Material | Aluminum Fins, 4x Heat Pipes with H.C.C. Technology |
| Fan Dimension | 92 x 25 mm |
| Speed |
At Duty Cycle 0~20%: 1600± 200 RPM At Duty Cycle 50%: 2850±10% RPM At Duty Cycle 100%: 6000 ±10% RPM |
| Rated Voltage | 12V |
| Bearing | 2 Ball Bearing |
| Power |
At Duty Cycle 0~20%:0.72 W At Duty Cycle 50%: 1.48 W At Duty Cycle 100%: 9.60 W |
| Air Flow |
At Duty Cycle 0~20%: 21.45 CFM At Duty Cycle 50%: 48.83 CFM At Duty Cycle 100%: 107.25 CFM |
| Noise Level |
At Duty Cycle 0~20%: 16.00 dBA At Duty Cycle 50%: 33.20 dBA At Duty Cycle 100%: 50.40 dBA |
| Air Pressure |
At Duty Cycle 0~20%: 0.68 mm-H2O At Duty Cycle 50%: 5.34 mm-H2O At Duty Cycle 100%: 17.10 mm-H2O |
| Lead Wire Pin Out |
Pin#1- Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
