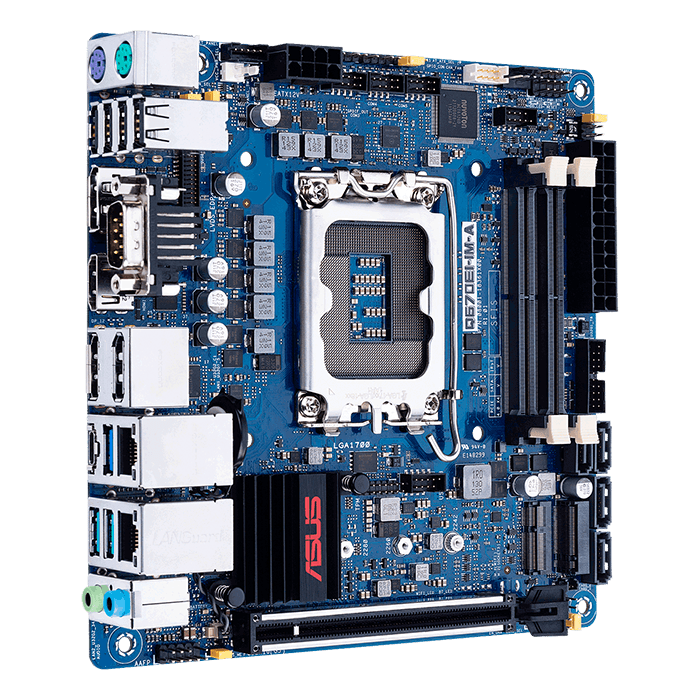

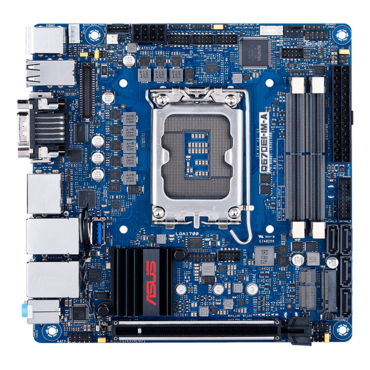

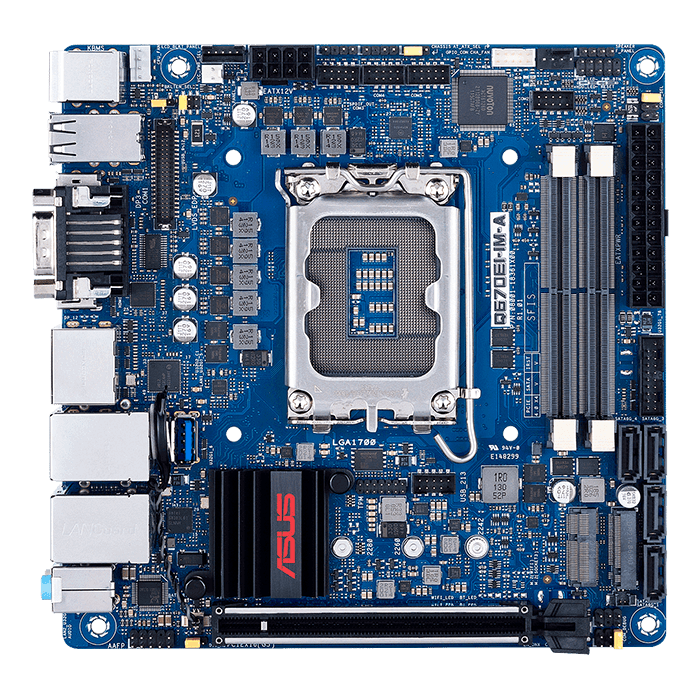

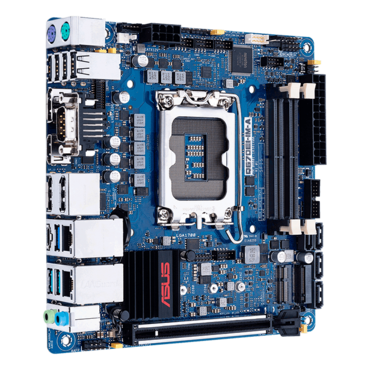

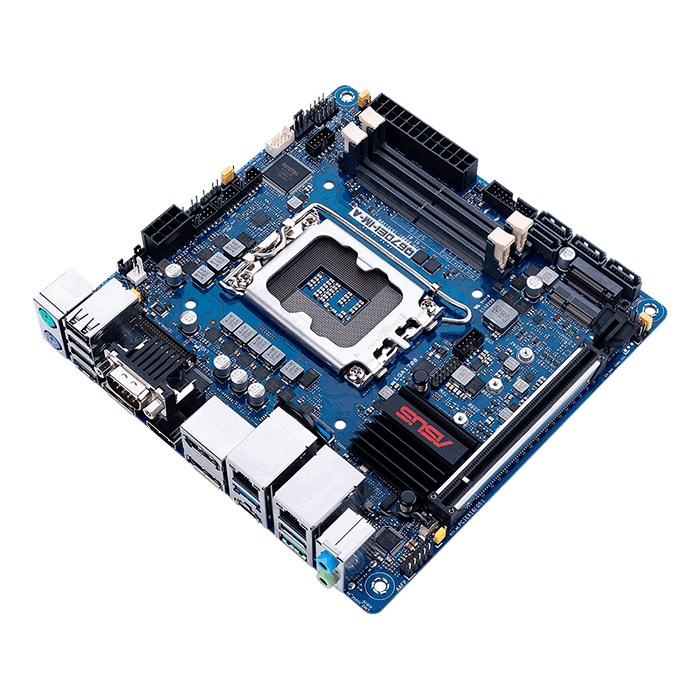

Q670EI-IM-A, Intel® Q670E Chipset, LGA 1700, 5x COM, 2x 2.5 GbLAN, mini-ITX Motherboard
Quantity:
- SKU: 15064463
- Manufacturer: ASUS
- MPN: Q670EI-IM-A
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$276.08
- Support up to 65W Intel® 12th Gen. CPU
- Dual DDR5 SO-DIMM
- Support PCIe Gen 5 *16 slot
- Up to four displays: DP*3/HDMI
- M.2 M key, M.2 E key
- Up to 7-year longevity supply
| Processor System | CPU | LGA1700 for Intel® 12th Gen. Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors Max. 65W TDP |
| Chipset | Intel® Q670E Chipset | |
| Memory | Technology | Up to DDR5 4800 MHz |
| Max. | 2 x 32GB (Total 64GB) | |
| Socket | 2 x SO-DIMM | |
| Display | Display Port | 3, Supports DP 1.4, up to 8K resolution |
| HDMI | 1 | |
| eDP/LVDS | 1 x Header (Support either eDP or LVDS ; switched by BIOS) | |
| Expansion Slot | PCIe | 1 x PCIe 5.0 x16 Slot (Bifurcation Support: 16x to 8x+8x) |
| M.2 | 1 x M.2 E key, Type 2230 for WIFI/BT device (PCIe & CNVi) 1 x M.2 M key, Type 2242/2260/2280 (PCIe x4 & SATA mode) |
|
| Ethernet | Speed | 10/100/1000/2500 Mbps |
| Controller | 1 x Intel® i210AT (co-lay i211AT), 1 x Intel® I225LM (Intel vPro supported) | |
| Teaming | Yes | |
| Connector | 2 x RJ-45 | |
| Audio | Codec | Realtek ALC897 High Definition Audio |
| Connector | Line-Out, Line-In | |
| Storage | SATA port | 4 x SATA Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10 |

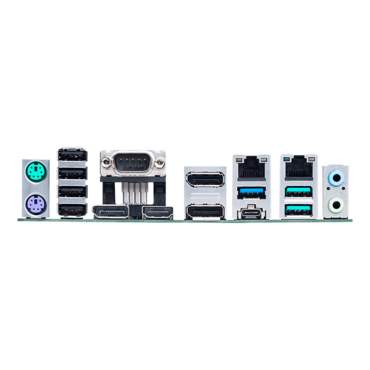

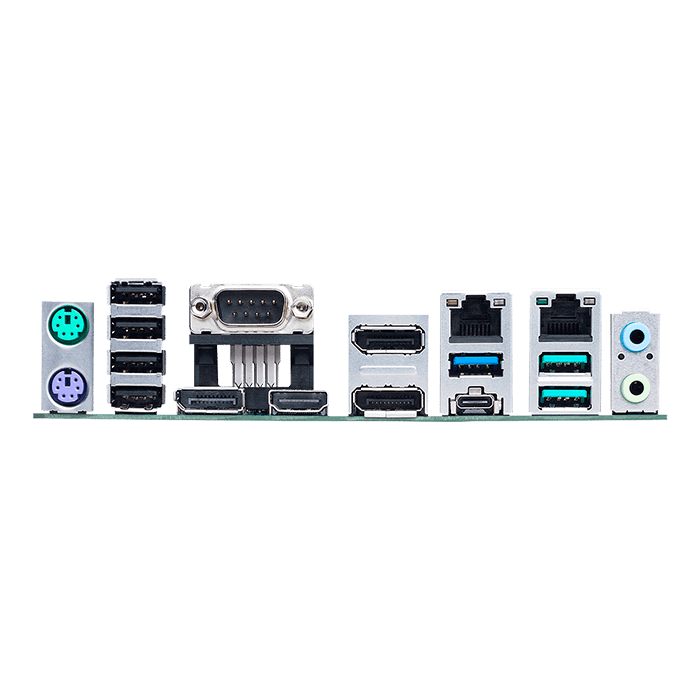

| Rear I/O | Display Port | 3 |
| HDMI | 1 | |
| USB3.2 Gen2 | 3 (2*Type A, 1*Type C) | |
| USB3.2 Gen1 | 1 (Type A) | |
| USB2.0 | 4 (Type A) | |
| Ethernet | 2 x RJ45 | |
| Serial Port | 1 (RS232/422/485) | |
| Audio jack | 2 | |
| PS/2 | 1 x Keyboard, 1x Mouse | |
| Internal Connector | Serial Port Header | 4 x COM Header (1 x RS232/422/485, 3 x RS232) |
| USB3.2 Gen1 | 1 x USB3.2 Gen1 Stick Connector 1 x Header Support Additional 2 x USB3.2 Gen1 Ports |
|
| USB2.0 | 1 x Header Support Additional 2 x USB2.0 Ports | |
| CPU Fan/ Chassis Fan | 1 x Header (PWM Mode) / 1 x Header (PWM Mode) | |
| Disable ME | 1 x Header | |
| LVDS/ eDP selection | 1 x Header | |
| Panel SW | 1 x Header/td> | |
| Front Panel Audio (AAFP) | 1 x Header | |
| System Panel | 1 x Header (10-1 Pin) | |
| SP/DIF | 1 x Header | |
| Chassis Intrusion | 1 x Header | |
| Speaker | 1 x Header | |
| Clear CMOS | 1 x Header | |
| LPC Debug | 1 x Header | |
| GPIO | 1 x Header (8 bit) | |
| H/W | YES | |
| TPM | 1 x SPI TPM header | |
| IAMT/vPRO | Yes | |
| Power Type | ATX 12V DC-IN (supported by additional cable) |
|
| Microsoft Windows | Windows® 10 (64bit) | |
| Linux | Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE | |
| Operating Temperature | 0~60° C | |
| Non-Operating Temperature | -40~85° C | |
| Relative Humidity | 5%~95% | |
| Form Factor | Mini-IX, 170 x 170 mm | |
| Safety | CE (CLASS B), FCC (CLASS B) | |
