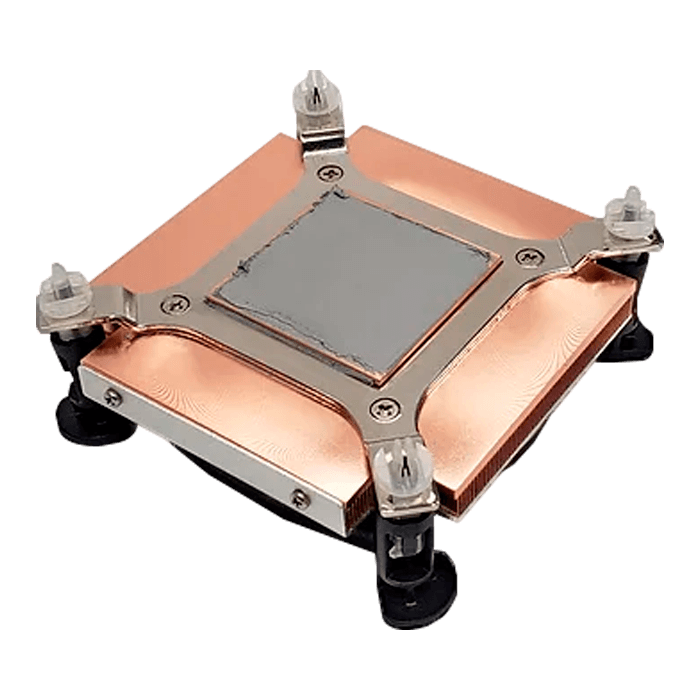

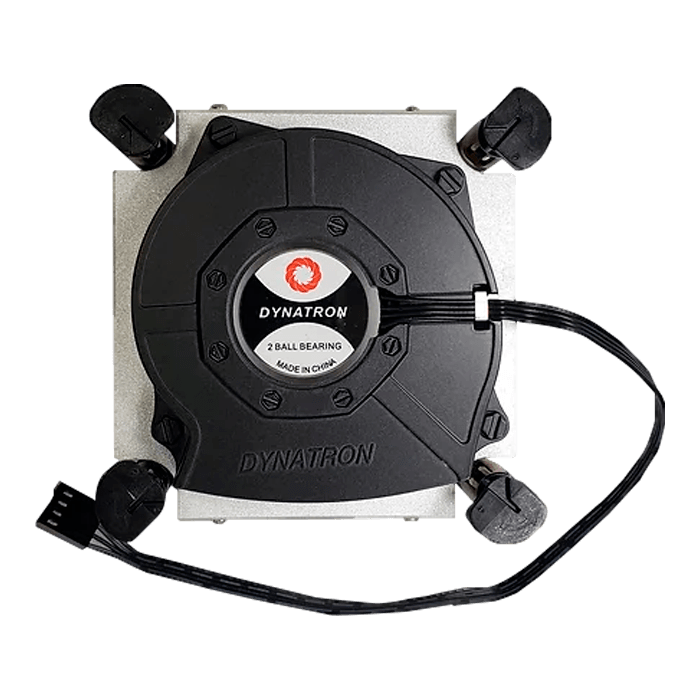

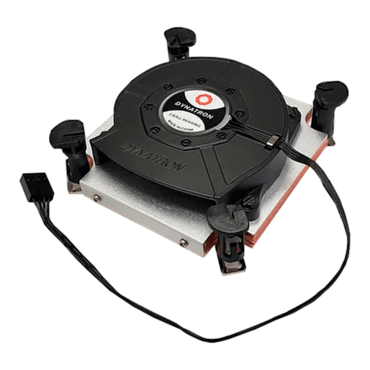

Q8, 28mm Height, 125W TDP, Copper CPU Cooler
Quantity:
- SKU: 16160300
- Manufacturer: DYNATRON
- MPN: Q8
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$34.29
Q8, 28mm Height, 125W TDP, Copper CPU Cooler
The Dynatron Q8 CPU cooler is designed for Q8- 1U Active with push pin
The Dynatron Q8 CPU cooler is designed for Q8- 1U Active with push pin
| CPU Support | Intel |
| CPU Socket | LGA1700 |
| Solution | 1U Server and Up |
| Dimensions | 90 x 95 x 28 mm |
| Weight | 420 ± 5 g |
| Material | Copper Heat Sink with Skiving Fins |
| Fan Dimension | Ø 80 x 15 mm |
| Speed |
At Duty Cycle 0~20%: 1000±200 RPM At Duty Cycle 50%: 3500±10% RPM At Duty Cycle 100%: 7000 RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power |
At Duty Cycle 0~20%: 0.60 W At Duty Cycle 50%: 3.84 W At Duty Cycle 100%: 19.2 W |
| Air Flow |
At Duty Cycle 0~20%: 6.5 CFM At Duty Cycle 50%: 11.2 CFM At Duty Cycle 100%: 22.28 CFM |
| Noise Level |
At Duty Cycle 0~20%: 21.5 dBA At Duty Cycle 50%: 43.0 dBA At Duty Cycle 100%: 59.14 dBA |
| Air Pressure |
At Duty Cycle 0~20%: 2.27 mm-H2O At Duty Cycle 50%: 18.56 mm-H2O At Duty Cycle 100%: 74.18 mm-H2O |
| Lead Wire Pin Out |
Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Techometer/Signal output) Pin4-Blue (PWM) |
