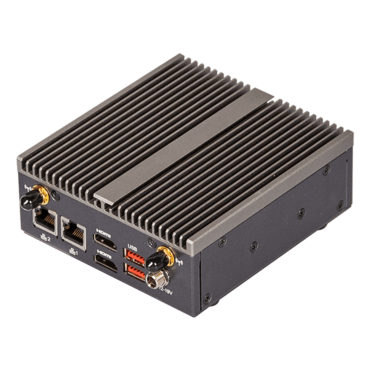

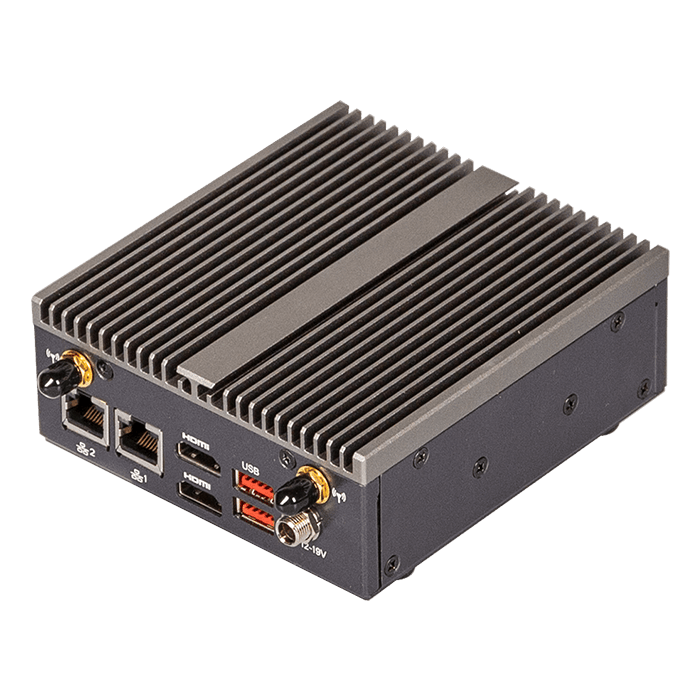

QBiX-EHLA6412-A1, Intel® Celeron® J6412 Processor, 1x DDR4 SO-RDIMM, M.2, Embedded Industrial PC

Quantity:
  • SKU: 15045463
  • Manufacturer: GIGABYTE
  • MPN: QBIX-EHLA6412-A1
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$273.69
Quantity:
  • System Size : 118W x 109.4D x 44.4H (mm)
  • Intel® Celeron® J6412 Processor
  • 1 x COM Port (RS-232)
  • Single Channel DDR4, 1 x SO-DIMM
  • 2 x HDMI for Dual display
  • 2 x GbE LAN Ports
Dimension 118W x 109.4D x 44.4H(mm)
CPU Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Chipset SoC
Memory 1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB
Support Single Channel DDR4 3200 MHz memory modules
Ethernet 2 x GbE LAN Ports (Intel® I211AT)
Graphic Support Integrated Graphics Processor - Intel® UHD Graphics for 10th Gen Intel® Processors :
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)
Audio Realtek® Audio Codec
Expansion Slots 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Front I/O 2 x USB 3.2 Gen 2x1
1 x COM Port (RS-232)
1 x Headphone Jack
1 x Power button with LED
Rear I/O 2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x HDMI
2 x External Antenna Holes (Optional)
1 x Screw Type DC Jack
Power +12V~19VDC
Operation Temperature Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging Content Box size: 258 x 191 x 130 (mm)
