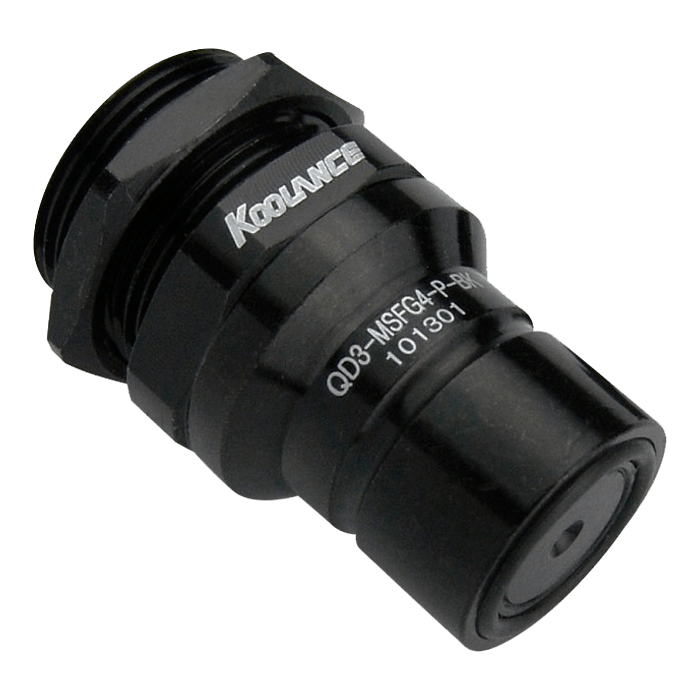

QD3 Male Quick Disconnect No-Spill Coupling, Panel Female Threaded G 1/4 BSPP *Black*
- SKU: 16224920
- Manufacturer: Koolance
- MPN: QD3-MSFG4-P-BK
- Availability: CONTACT US
Price
$23.12
| Weight | 0.11 lb (0.05 kg) |
| Fitting Thread | G 1/4 BSPP |
| Max No-Spill Pressure | 0.5kgf/cm2 (7psi) |
| Max Pressure Tolerance @ 25°C | 8kgf/cm2 (113.8psi) |
| Max Temperature Tolerance | 80°C (176°F) |
| Min Pressure Tolerance @ 25°C | -1.0kgf/cm2 (-14psi) |
| Min Storage Temperature (*No Freezing) | -20ºC (-4ºF) |
| Seal Material | EPDM (Water/Glycol Liquids) |
| Wetted Materials | Brass, Stainless Steel, EPDM |
