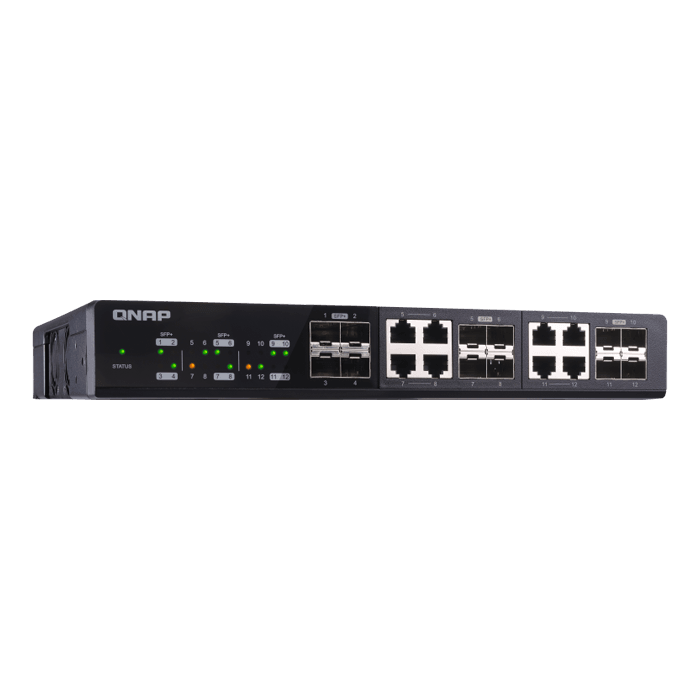

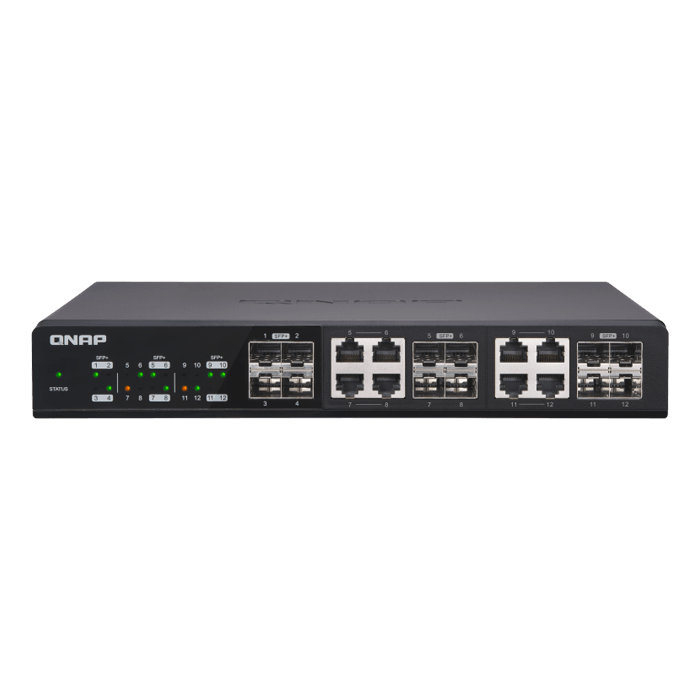

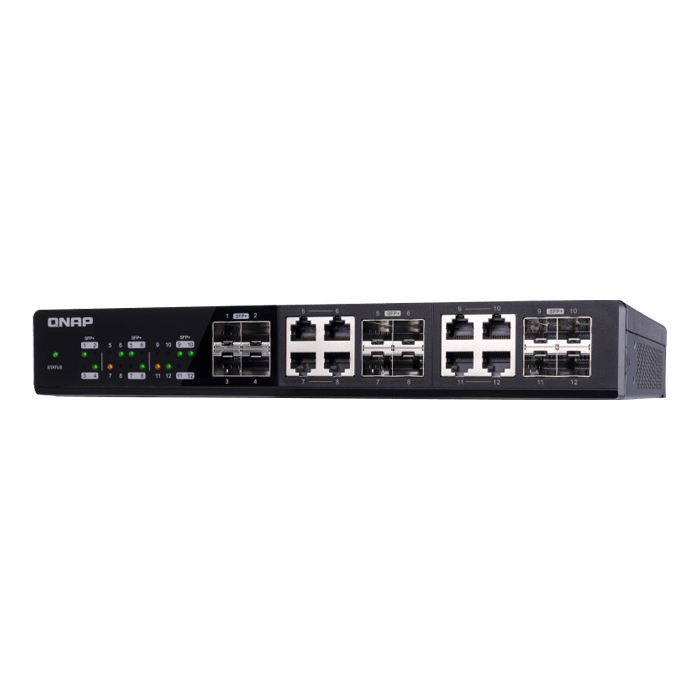

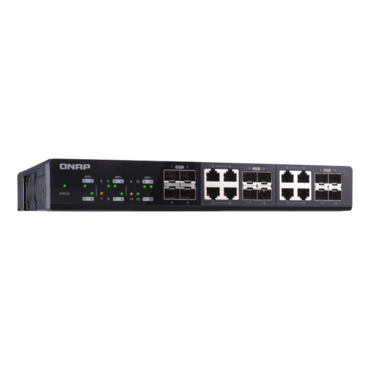

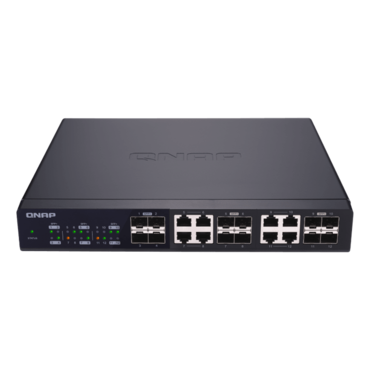

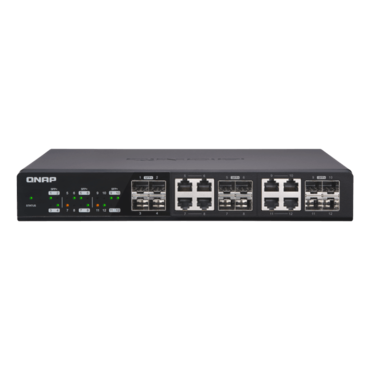

QSW-1208-8C 12-Port Unmanaged 10GbE Switch

  • SKU: 11883283
  • Manufacturer: QNAP
  • MPN: QSW-1208-8C-US
Starting At
QSW-1208-8C 12-Port Unmanaged 10GbE Switch
The QNAP QSW-1208-8C is a 12-port 10GbE unmanaged switch, allowing you to instantly upgrade your network environment at a cost-effective price. The QSW-1208-8C supports 10GBASE-T and NBASE-T standards, allowing you to take advantage of higher network speeds with your existing Cat 5e and 6a cables. Both SFP+ (fiber) and RJ45 (copper) ports are available (with 8 combo ports) for servicing a range of network needs. Compliant with IEEE 802.3az (Energy Efficient Ethernet, EEE), the QSW-1208-8C is energy efficient as well. With high performance, low latency and superb functionality, the QSW-1208-8C is the ideal choice for upgrading your home or business network to support 10GbE connections.
Management Type Unmanaged
Supported Standards IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet
IEEE 802.3an 10GBASE-T 10G Ethernet
IEEE 802.3ae 10GBASE-SR
IEEE 802.3ae 10GBASE-LR
IEEE 802.3x Full-duplex flow control
Jumbo Frames 9k
Electromagnetic Compliance CLASS A, UL62368
Certifications CE, FCC, VCCI, BSMI RCM
Relative Humidity 10% to 85% RH non-condensing
Operating Temperature 0°C to 40°C (32°F to 104°F)
Weight (Gross) 4.85 lbs
Weight (Net) 4.74 lbs
Dimensions (HxWxD) 1.69 × 11.22 × 9.17 inch
LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status
Form Factor Desktop

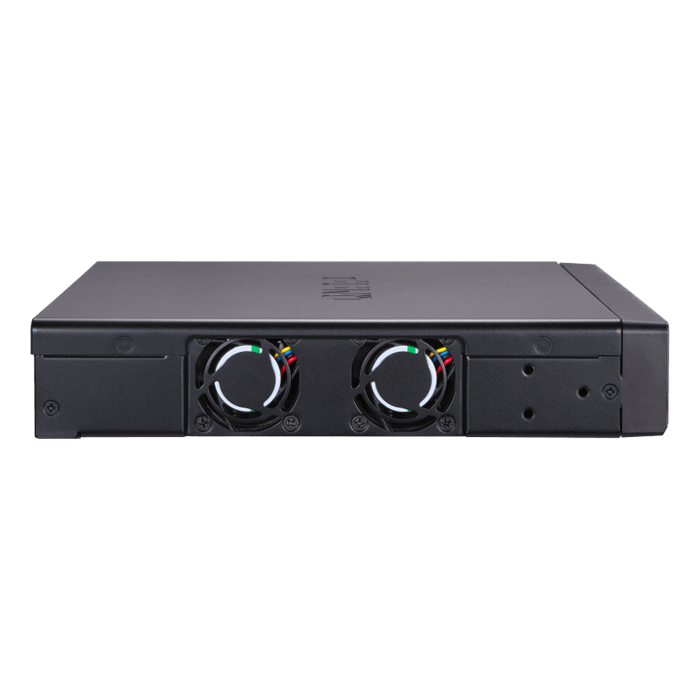

Fan System: 2 x 4 cm (12V DC)
Number of Ports 12
Console (Opt.) RS232
Switching Capacity 240Gbps
Total Non-Blocking Throughput 120Gbps
MAC Address Table 27K
Input Voltage Range 100-240VAC, 50/60 Hz
Input Power Type AC
Max. Power Consumption 50W
Power Supply Description Internal Open Frame
10GbE SFP+/RJ45 Combo Ports 8
Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
10GbE SFP+ 4
Warranty 2 Years
