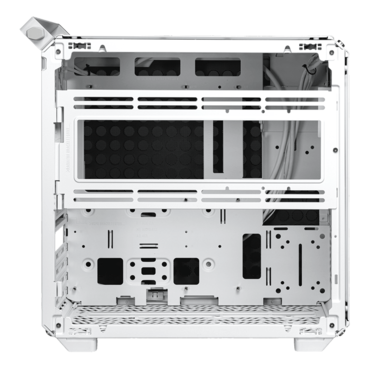

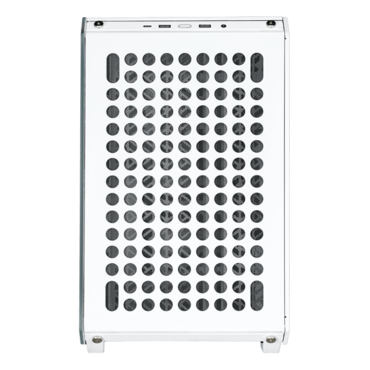

QUBE 500 Flatpack, Tempered Glass, No PSU, ATX, White, Mid Tower Case

Quantity:
  • SKU: 17207929
  • Manufacturer: COOLER MASTER
  • MPN: Q500-WGNN-S00
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$116.74
Quantity:
Model Number QUBE 500 Flatpack: Q500-WGNN-S00
Exterior Color White
Materials - Exterior Steel, Plastic, Tempered Glass
Materials - Left Side Panel Grey TG + Steel
Dimensions (L x W x H) 406 x 231 x 415mm (Incl. Protrusions), 380 x 231 x 381mm (excl. Protrusions)
Volume 33.44L (excl. Protrusions)
Motherboard Support ITX, Micro ATX, ATX, E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)
Expansion Slots 7
3.5" Drive Bays 4
2.5" Drive Bays 3
I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C
I/O Panel - Audio In / Out 1x 3.5mm Combo
Pre-installed Fans - Rear QUBE 500 Flatpack White: 1x 120mm (1800 RPM) SF White PWM
Fan Support - Front 1x 120/140mm (x2 if PSU is mounted in bottom)
Fan Support - Top 2x 120/140mm
Fan Support - Rear 1x 120mm
Fan Support - Bottom 2x 120/140mm
Fan Support - Left side 2x 120/140mm
Radiator Support - Front 120mm, 140mm, (240/280mm w/ PSU in bottom)
Radiator Support - Top 120mm, 140mm, 240mm, 280mm, (280mm can be used within 53mm thickness)
Radiator Support - Rear 120mm
Radiator Support - Bottom 120mm, 140mm, 240mm, 280mm
Radiator Support - Left side 120mm, 140mm, 240mm, 280mm
Clearance - CPU Cooler 164mm-172mm (Remove the water cooling bracket)
Clearance - PSU 173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space)
Clearance - GFX 365mm
Cable Routing - Behind Motherboard Tray 29-32mm
Handle QUBE 500 Flatpack: Grey x 1
Gem Mini QUBE 500 Flatpack: Grey x 1
Dust Filters Front, Top, Bottom, Right side
Power Supply Support SFX, SFX-L, ATX
Warranty 2 years
Series QUBE Series
Size Mid Tower
