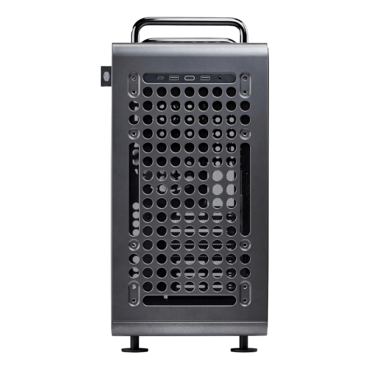

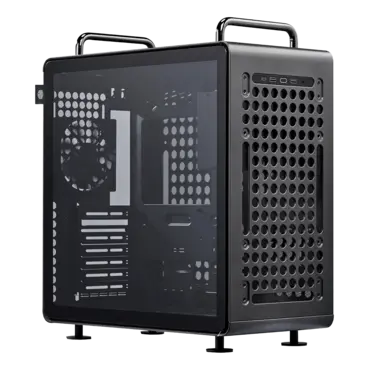

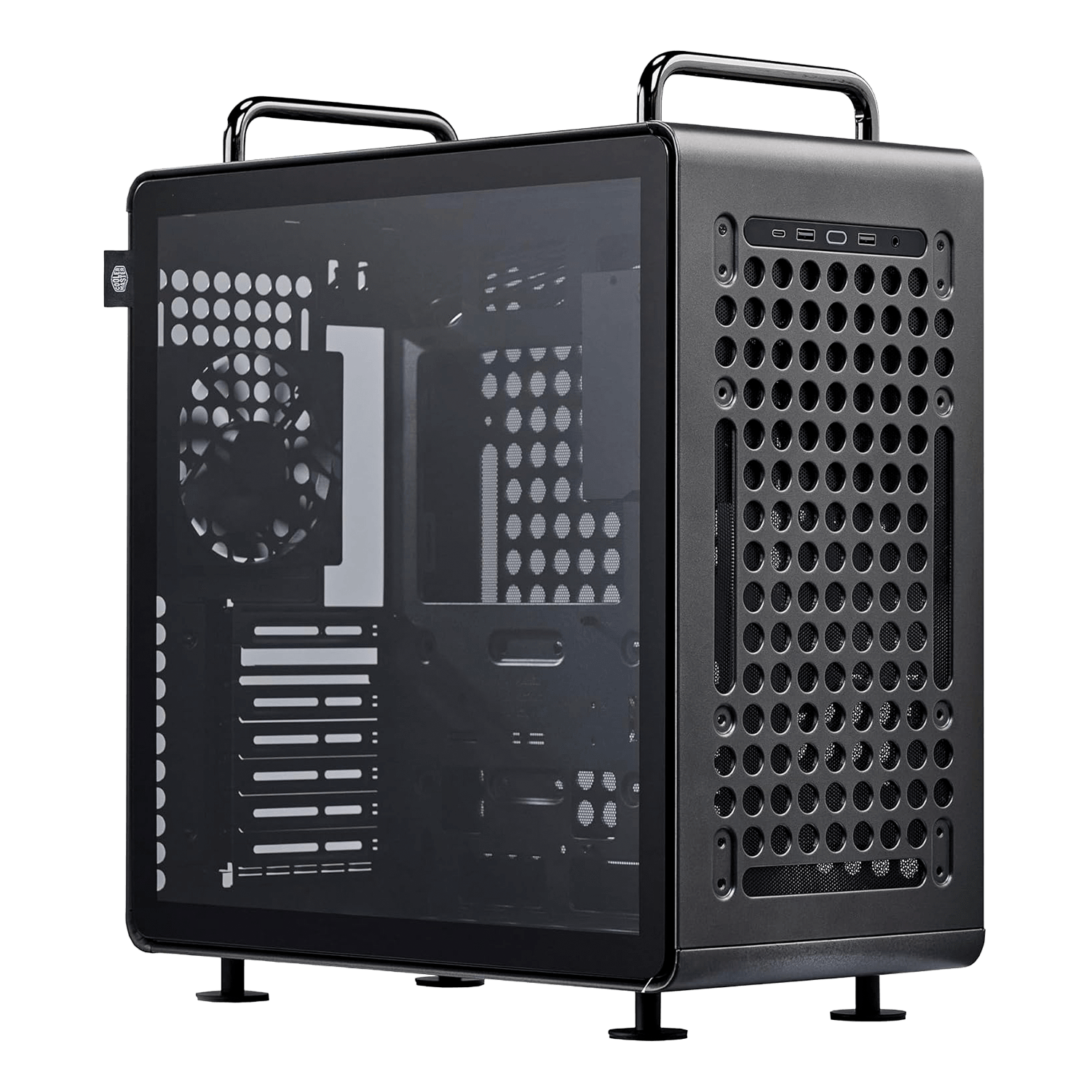

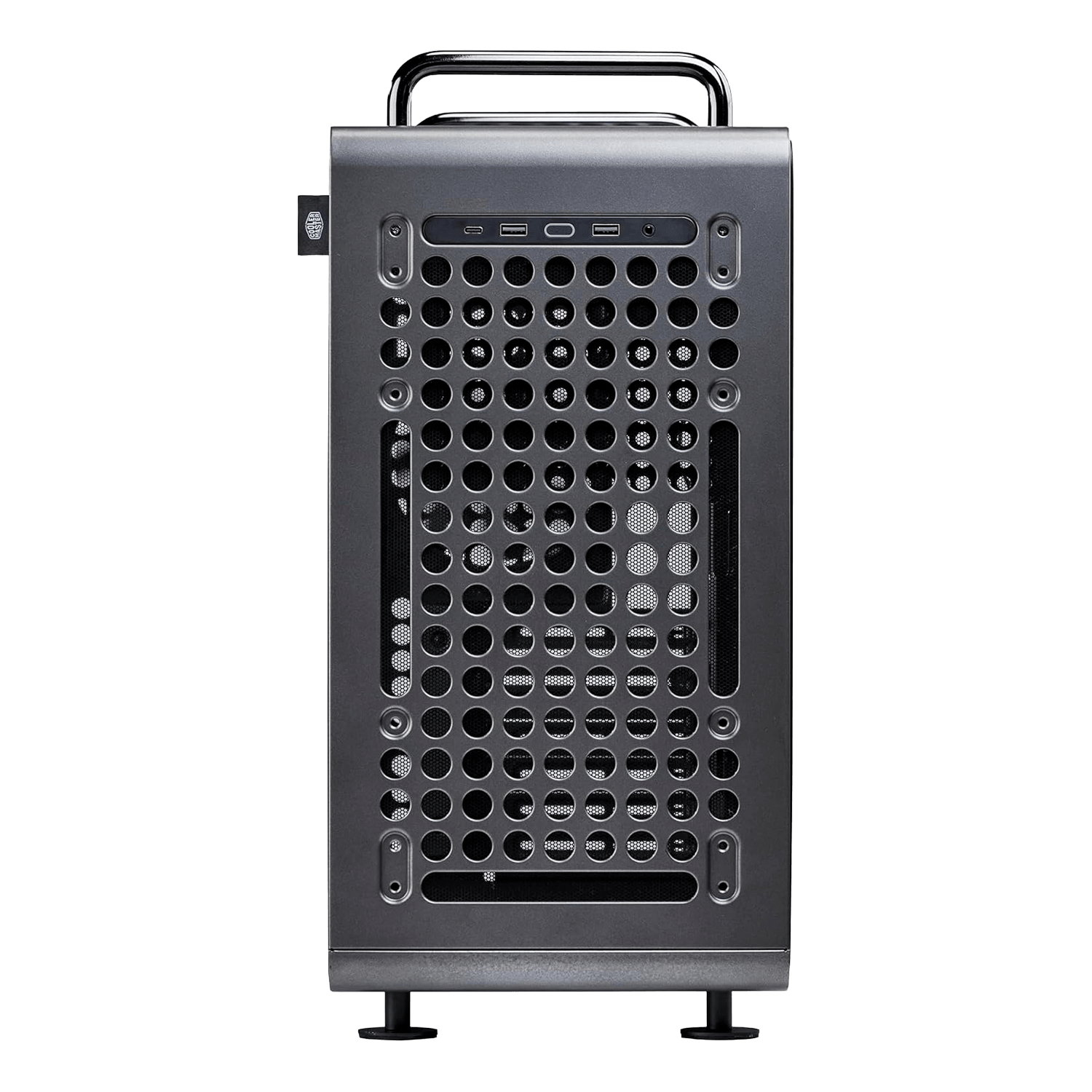

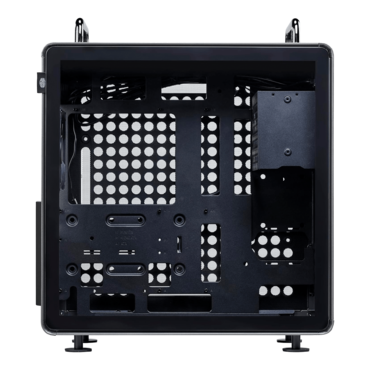

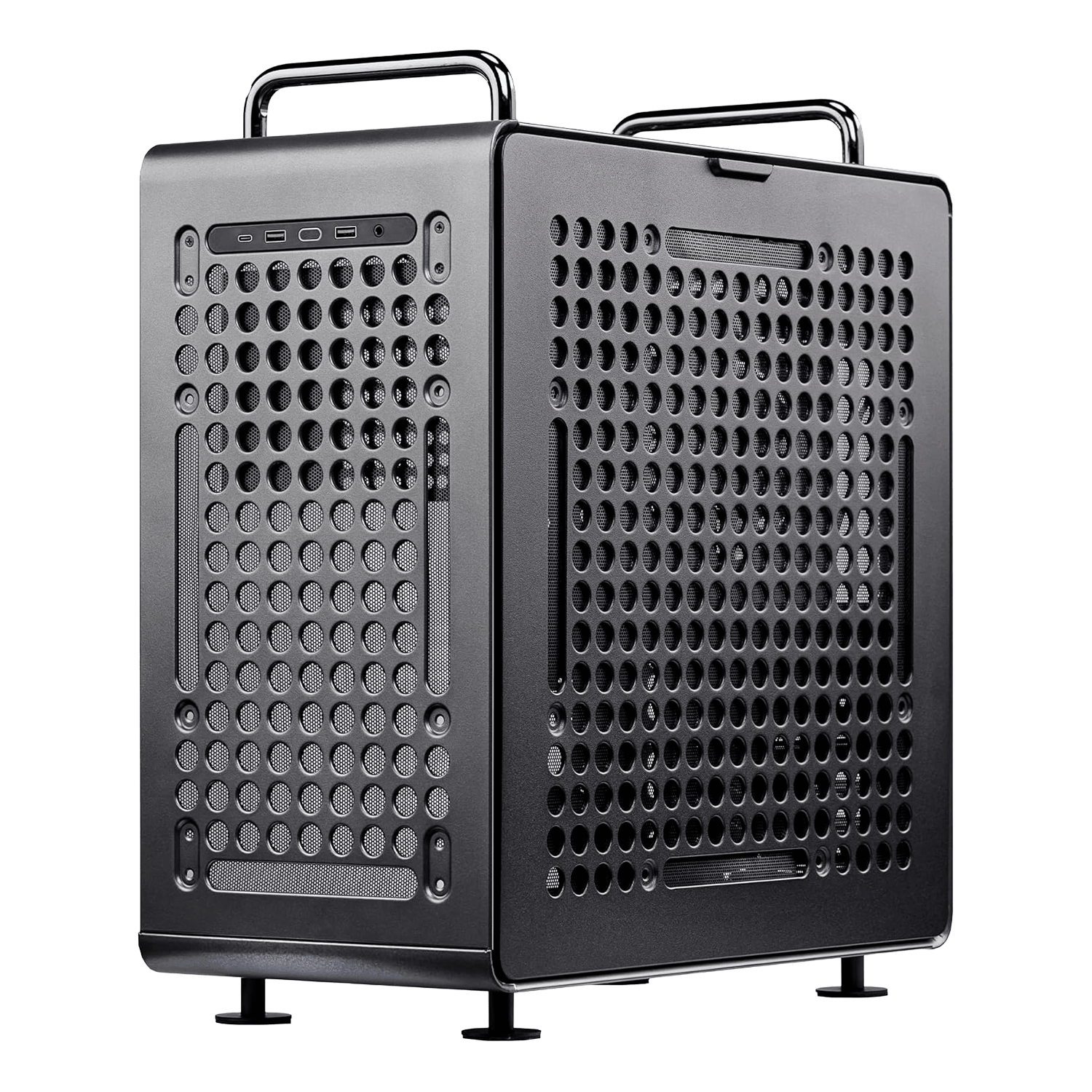

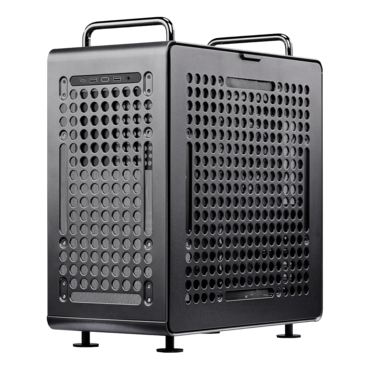

| Product Name |
QUBE 540 |
| Model Number |
Stardust Iron: Q540-MGNN-S00 |
| Model Number |
Moonstone: Q540-LGNN-S00 |
| Color(s) |
Stardust Iron / Moonstone |
| Materials - |
ExteriorSteel |
| Material - |
Side Panel (Right)Steel |
| Material - |
Side Panel (Left)TG |
| Dimensions (L x W x H) |
Incl. Protrusions: 438.5 x 225 x 492.1 mm |
| Dimensions (L x W x H) |
Excl. Protrusions: 425 x 225 x 425 mm |
| Volume (w/o protrusions) |
40.64 L |
| Volume (with panel, protrusions and feet) |
48.55 L |
| Motherboard Support |
ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm) |
| Expansion Slots |
7 |
| Drive Bays - 5.25" ODD |
N/A |
| Drive Bays - 3.5" HDD |
1 (Shared 3.5" and 2.5" mounting on PSU bracket) |
| Drive Bays - 2.5" SSD |
2 (Max. 5) |
| I/O Panel - USB Ports |
2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C |
| I/O Panel - Audio In / Out |
1 x 3.5 Mic / Audio Combo Jack |
| Fan Support - Front |
3 x 120 mm (w/o I/O panel) / 2 x 140 mm |
| Fan Support - Top |
3 x 120 mm (w/o I/O panel) / 2 x 140 mm |
| Fan Support - Rear |
1x 120mm |
| Fan Support - Bottom |
3 x 120 mm / 2 x 140 mm |
| Preinstalled Fan(s) - Front |
N/A |
| Preinstalled Fan(s) - Top |
N/A |
| Pre-installed Fans - Rear |
1x 120mm Black Fan |
| Radiator Support - Front |
140 / 280 / 360 mm (w/o I/O panel) |
| Radiator Support - Top |
140 / 280 / 360 mm (w/o I/O panel) |
| Radiator Support - Rear |
120 mm |
| Radiator Support - Bottom |
140 / 280 / 360mm (w/o I/O panel) |
| Clearances - CPU Cooler |
172 mm |
| Clearances - Power Supply |
200 mm |
| Clearances - Graphics Card |
415 mm (w/o Front Fan) |
| Cable Routing - Behind Motherboard Tray |
27 mm |
| Dust Filters |
Top / Bottom / Front |
| Power Supply Support |
ATX / SFX |
| Warranty |
2 years |
| Note |
- |
| Series |
QUBE Series |
| Size |
Mid Tower |
