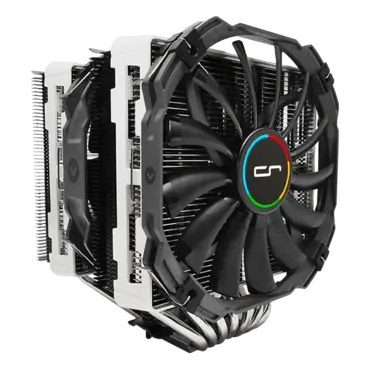

CRYORIG R1 Universal (CR-R1B). Full Contact. Enhanced Performance. Patented DirectCompress™ Soldering, increases the actual contact surface between the heatpipe and heatsink fins. DirectCompress™ Soldering has up to 10% more contact surface compared to traditional soldering, and the more contact surface the faster the heat conduction.
Heatsink Specification | |
Dimension ( with fan ) | L128.5 mm x W140 mm x H168.3 mm |
Weight ( with fan ) | 1215 g |
Weight ( without fan ) | 970 g |
Heat pipes | 6mm heatpipe x 7 units |
Front Fin | T = 0.4 mm ; Gap = 2.4 mm |
Front Fin Pcs | 42 pcs |
Rear Fin | T = 0.4 mm ; Gap = 1.8 mm |
Rear Fin Pcs | 53 pcs |
Copper Base | C1100 Pure copper nickel plated |
Distance From Center | 35.5 mm |
RAM Height Limit | Limitless |
TDP | 240 W+ |
Fan Specification | |
Model | XF140 |
Dimension | L140 mm x W140 mm x H25.4 mm |
Weight | 156 g |
Rated Speed | 700 ~ 1300 RPM ±10 % |
Noise Level | 19 ~ 23 dBA |
Air Flow | 76 CFM |
Air Pressure | 1.44 mmH2O |
Ampere | 0.16 A |
Model | XT140 |
Dimension | L140 mm x W140 mm x H13 mm |
Weight | 89 g |
Rated Speed | 700 ~ 1300 RPM ±10 % |
Noise Level | 20 ~ 24 dBA |
Air Flow | 65 CFM |
Air Pressure | 1.49 mmH2O |
Ampere | 0.27 A |
Motherboard Compatibility | |
Intel | 2066, 2011(-3), 1150, 1151, 1155, 1156, 1200 |
AMD | FM1, FM2/+, AM2/+, AM3/+, AM4 |
What's In The Box |
R1 Universal x 1 MultiSeg™ Backplate for Intel x 1 AM4 Screw Pillar x 4 Intel Mounting Bar x 2 AM4 Mounting Plate x 1 Thumb Screw Caps x 4 Screw Pillars x 4 LGA 2011 Screw Pillars x 4 XF140 Wireclips x 2 XT140 Wireclips x 2 Acoustic Vibration Absorbers x 4 CP-7 x 1 Alcohol Pad x 1 L-Screwdriver x 1 Installation Guide x 1 PWM Y-Cable x 1 |
