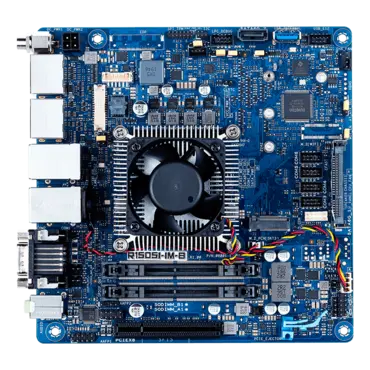

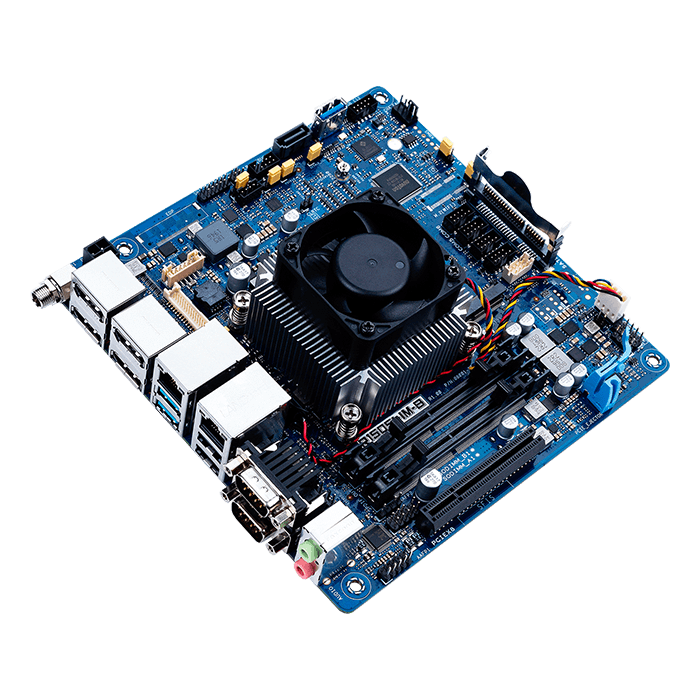

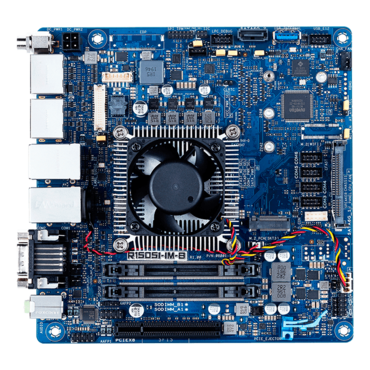

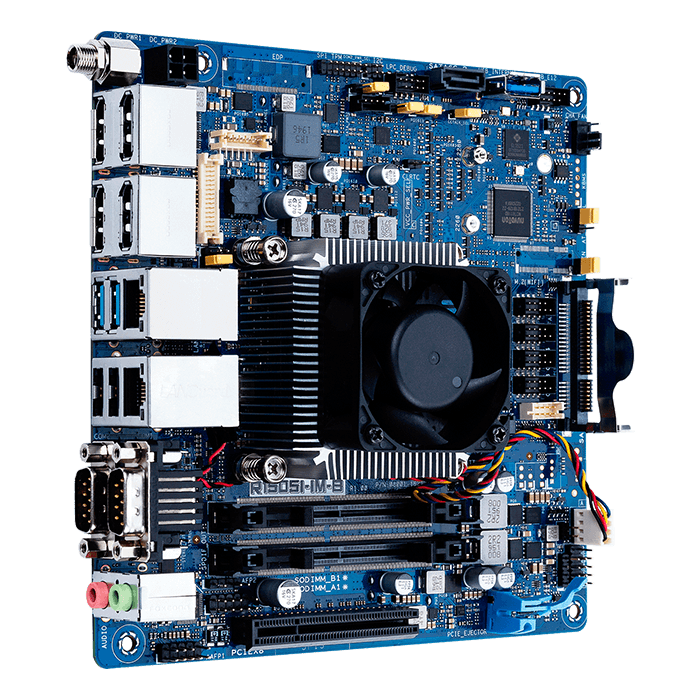

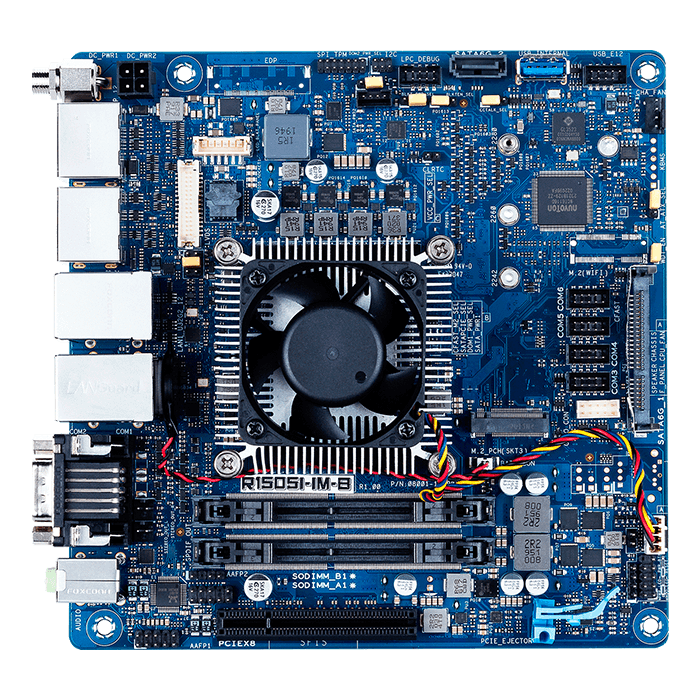

R1505I-IM-B, AMD Ryzen™ Embedded R1505G, 6x COM, 2x 1 GbLAN, Mini-ITX Motherboard
- SKU: 15064680
- Manufacturer: ASUS
- MPN: R1505I-IM-B
- Availability: TEMPORARILY OUT OF STOCK
Price
$372.49
- Mini-ITX Industrial MB with AMD Ryzen™ Embedded R1505G APU
- Supports up to three 4K displays
- Lockable DC-in connector supported
- M.2 M Key supported
- 7 years of longevity with extended product life cycles
- Wide temperature range endurance: 0–60°C
| Processor System | CPU | AMD RyzenTM Embedded R1505G APU |
| Memory | Technology | DDR4 2400MHz, ECC support |
| Max. | 2 x 16GB (Total 32GB) | |
| Socket | 2 x SO-DIMM | |
| Display | Display Port | 2, DP++ supports DisplayPort 1.4 with max. resolution 3840x2160 @60Hz |
| LVDS | 1, LVDS supports LVDS with max. resolution 1920 x1200 @60Hz | |
| Multi Display | 2DP+LVDS | |
| Expansion Slot | PCIe | 1 x PCIe 3.0 x8 slot (PCIe x4 mode) |
| M.2 | 1 x M.2 Socket 3 with M key, type 2242/2260/2280 | |
| Ethernet | Speed | 10/100/1000 Mbps |
| Controller | 2 x Realtek® 8111H, support WOL/PXE | |
| Connector | 2 x RJ-45 | |
| Audio | Codec | Realtek® ALC897 codec |
| Connector | 2 x Audio jacks (1 x Mic-in, 1 x Line-out) 2 x 2W Stereo Speaker output 1 x 5.1 channel (internal pin header) |
|
| Storage | SATA port | 1 x SATA port Gen 3.0, up to 6Gb/s |
| M.2 | 1 x M.2 (Key B, 2242 / 2260 / 2280) PCIe x2 and SATA mode* | |
| CFAST | 1 x CFAST* *If CFAST is enabled, M.2 SATA mode will be disabled, and vice versa. You may configure this setting in the BIOS. |
|

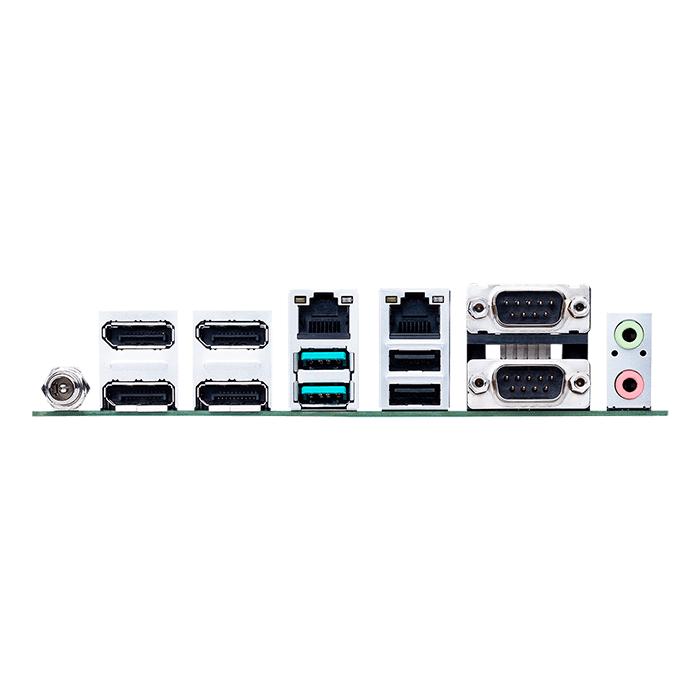

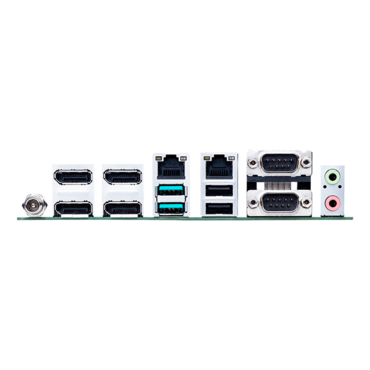

| Rear I/O | Display Port | 2 x DP + 1 x LVDS |
| USB 3.2 Gen2 Type-A ports | 2 x ports | |
| USB 2.0 Type-A ports | 2 x ports | |
| Ethernet | 2 x RJ45 | |
| Serial Port | 2 x COM connectors (support RS232/422/485) | |
| Audio jack | 1 x Mic in , 1 x Line out | |
| Power | 1 x DC jack (lockable) | |
| Internal Connector | Serial Port | 4 x header (RS-232); COM3 colay CCtalk & COM4 colay TTL (BOM option) |
| USB2.0 | 1 x header support additional 2 x USB2.0 Connectors 1 x type A vertical connector |
|
| CPU Fan/ Chassis Fan | 1 x header (PWM mode) | |
| Chassis Fan | 1 x header (PWM mode) | |
| Chassis Intrusion | 1 x Header | |
| Front Panel Audio (AAFP) | 2 x headers | |
| System Panel Header | 1 x Header | |
| Clear CMOS Jumper | 1 x Header | |
| SATA power | 2 x header | |
| LPC Debug | 1 x header | |
| S/PDIF | 1 x Header | |
| I2C | 1 x Header | |
| GPIO | 1 x Header | |
| AT/ATX Select | 1 x Header | |
| Power Connector | 1 (4 pin) | |
| H/W | YES | |
| TPM | 1 x SPI TPM header | |
| Power Type | DC-in (ATX and AT mode supported) Voltage: DC-in 12V ~ 24V |
|
| Microsoft Windows | Windows® 10 (64bit) / Win10 IoT Enterprise | |
| Linux | Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE | |
| Operating Temperature | 0~60° C | |
| Non-Operating Temperature | -40~85° C | |
| Relative Humidity | 0%~85% | |
| Form Factor | Mini-IX, 170 x 170 mm | |
| Safety | CE, FCC | |
