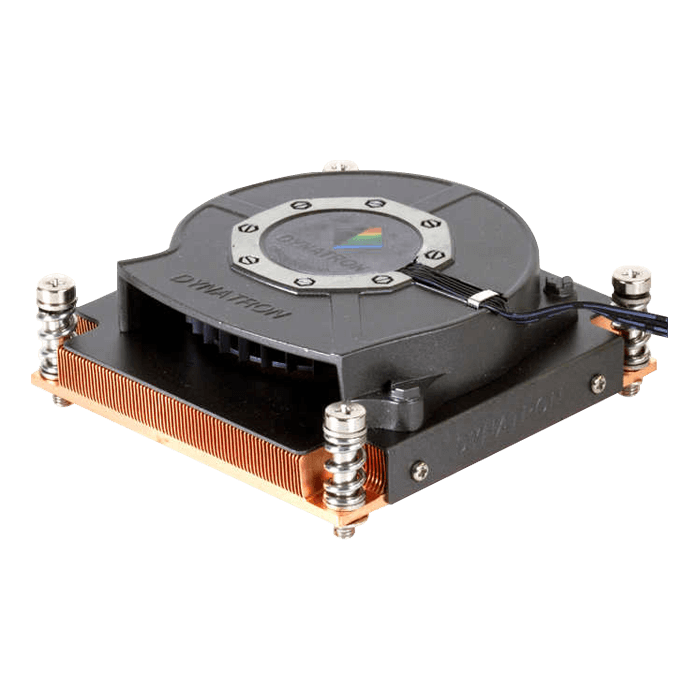

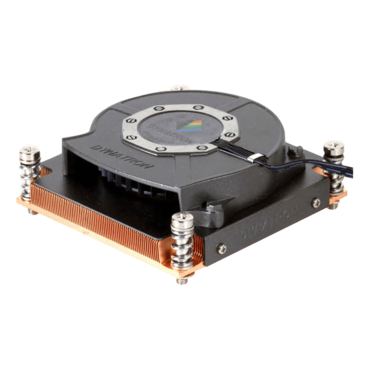

R18 Socket 2011 Active 1U CPU Cooler, 6000 RPM, Copper

SKU: 7772507

Manufacturer: DYNATRON

MPN: R18

Availability: Low Stock


Price: $31.50
or as low as $1.02/month
Quantity:

Dynatron R18 active cooler designed for 1U servers and up and recommend for Intel® Sandy Bridge - EP / EX Processor, Socket LGA 2011 processors. For square type, 80 x 80mm mounting pitch.

  • Copper Base
  • Skive Fin
  • Screw Type
  • Energy-Saving PWM
  • RoHS
CPU Socket 2011 (Square Type, 80 x 80mm mounting pitch)
CPU Support Intel® Sandy Bridge EP/EX Processors
Solution 1U Solution
Overall Dimension 90.0 x 90.0 x 27.7 mm
Weight 480 g
Material Copper Heatsink with Skiving Fins
Fan Dimension 80 x 80 x 15 mm
Speed At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 6000 RPM
Bearing 2 Ball Bearing
Rated Voltage 12 V
Power At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 14.4 W
Air Flow At Duty Cycle 20%: 6.5 CFM
At Duty Cycle 50%: 11.2 CFM
At Duty Cycle 100%: 19.1 CFM
Noise Level At Duty Cycle 20%: 21.5  dBA
At Duty Cycle 50%: 43.0 dBA
At Duty Cycle 100%: 55.8 dBA
Air Pressure At Duty Cycle 20%: 2.27 mm-H2O
At Duty Cycle 50%: 18.56 mm-H2O
At Duty Cycle 100%: 54.5 mm-H2O
Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
