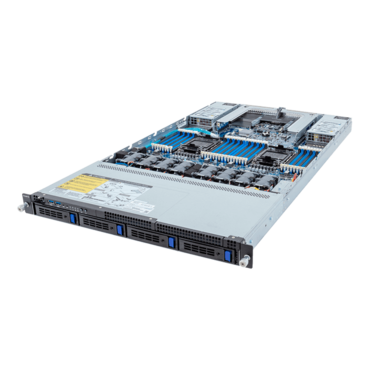

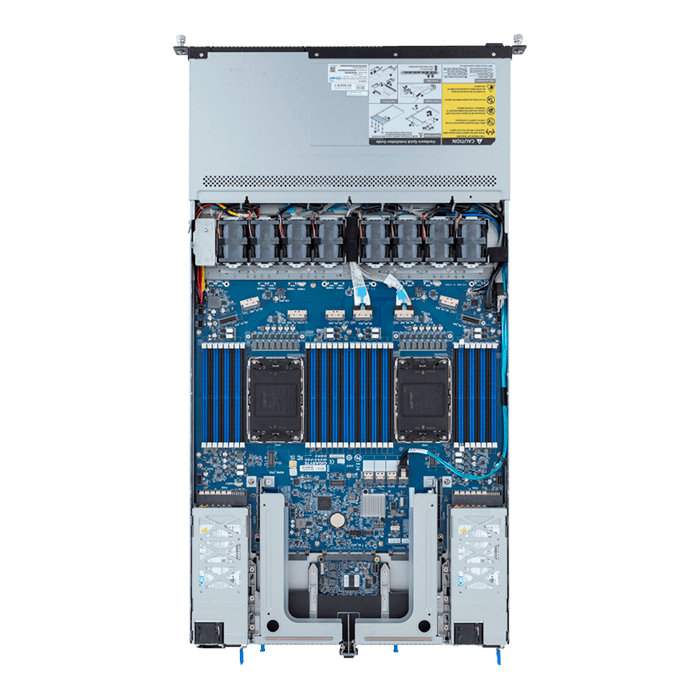

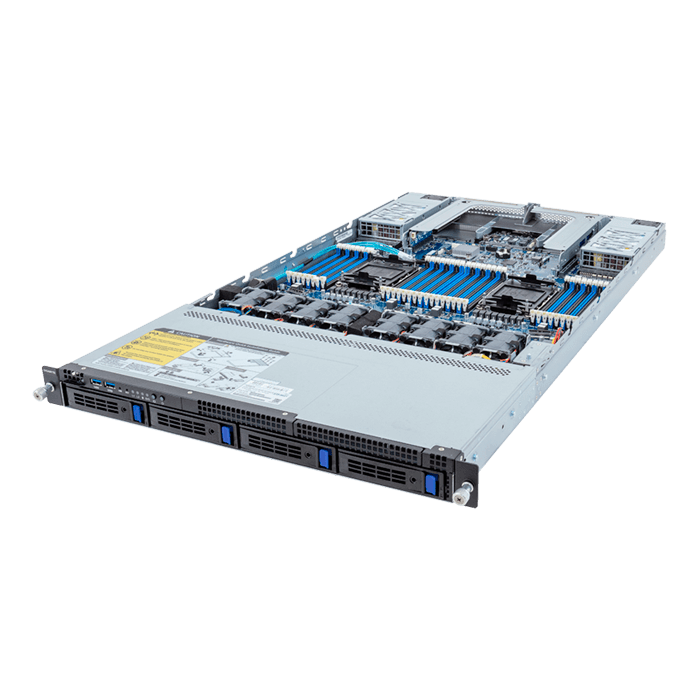

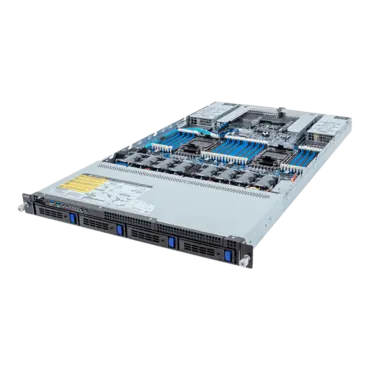

R183-S93-AAC2, 1U, Intel® C741, 4x 3.5"/2.5" SATA/SAS Hotswap, 32x DDR5, 2x 1GbLAN, 1300W Rdt PSU

  • SKU: 16612170
  • Manufacturer: GIGABYTE
  • MPN: R183-S93-AAC2
Starting At
  • 4th Gen Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Dual processor, LGA 4677
  • 8-Channel RDIMM DDR5 per processor, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 4 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 2 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP 3.0 Gen5 x16 slots
  • Dual 1300W 80 PLUS Platinum redundant power supply
Dimensions (WxHxD, mm) 1U
438 x 43.5 x 815
Motherboard MS93-FS1
CPU 4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
Dual processor, CPU TDP up to 350W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket 2 x LGA 4677
Socket E
Chipset Intel® C741 Chipset
Memory 32 x DIMM slots
DDR5 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)
LAN Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage Front side:
4 x 3.5"/2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support
SAS Depends on SAS Add-on card
RAID Intel® SATA RAID 0/1/10/5
Expansion Slots Riser Card CRS101J:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0

Riser Card CRS101Q:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function
Internal I/O 1 x TPM header
1 x VROC connector
2 x OCP 3.0 slots

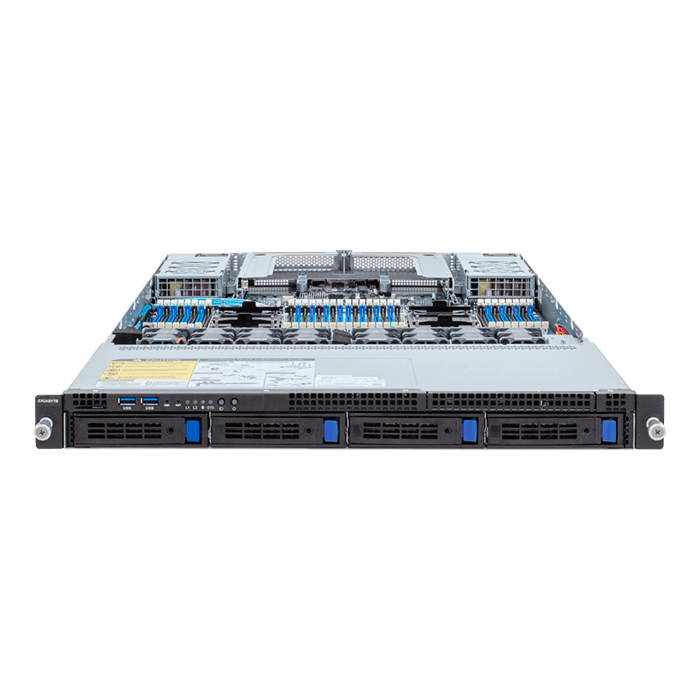

Front I/O 2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

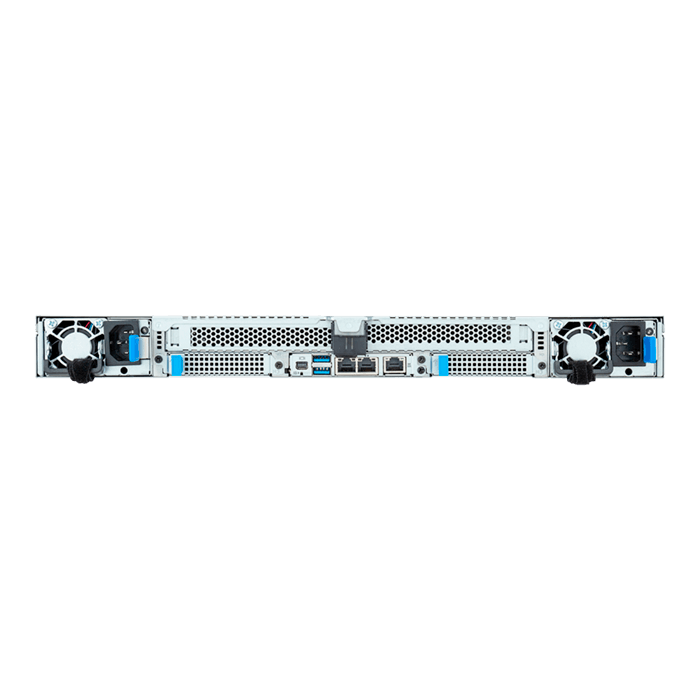

Rear I/O 2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply Dual 1300W (240V) 80 PLUS Platinum redundant power supply

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input:
- 240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A
System Management Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64)
System Fans 8 x 40x40x56mm (32,000rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 1045 x 595 x 249 mm
Packaging Content 1 x R183-S93
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carrier clips
1 x 2-Section Rail kit
Part Numbers - Barebone package: 6NR183S93DR000AAC2*
- Motherboard: 9AS93FS1UR-000
- 2-Section Rail kit: 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1047: 9CBP1047NR-00
- Fan module: 25ST2-40562H-A0R
- Riser card - CRS101J: 9CRS101JNR-00
- Riser card - CRS101Q: 9CRS101QNR-00
- G-SC Module - CDCR112: 9CDCR112NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-213002-F3S

Optional parts:

- 3-Section Rail kit: 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
