R24, Socket LGA 2066 Narrow, 84mm Height, 165W TDP, Copper/Aluminum CPU Cooler

SKU: 13000904

Manufacturer: DYNATRON

MPN: R24

Availability: Available


Price: $23.00
or as low as $1/month
Quantity:

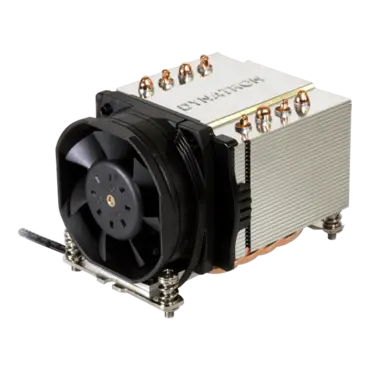

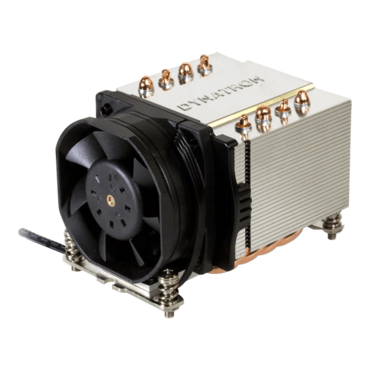

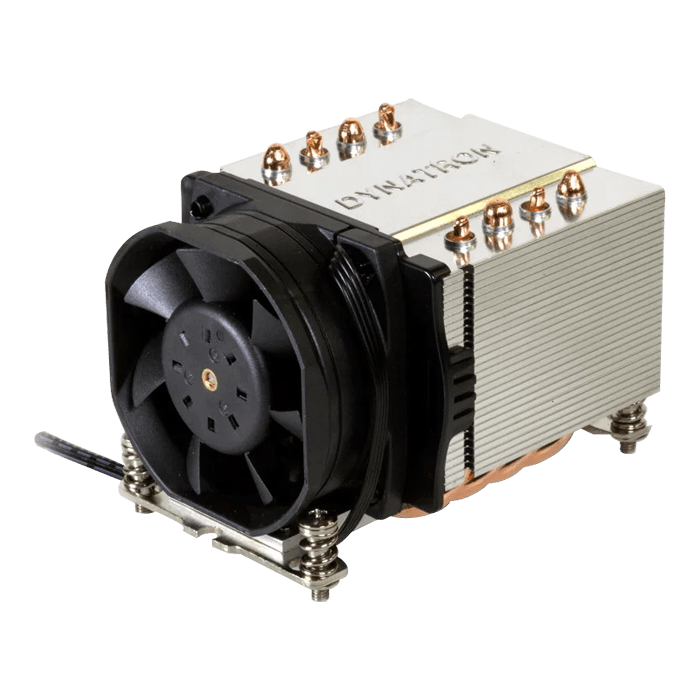

The Dynatron R24 CPU cooler is designed for 2U Active heatsink for Intel LGA2011 Sandy Bridge "Narrow" Type

CPU Support Intel
CPU Socket LGA 2011 (Narrow Type, 56mm x 95mm Mounting Pitch)
Solution 2U Server and Up
Dimensions 112.0 x 84.0 x 67.0 mm
Weight 400 g
Material Aluminum Stacked Fin with Heatpipes Directly Contacting CPU
Fan Dimension 60 x 60 x 28 mm
Speed At Duty Cycle 20%: 1500 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 7000 RPM
Bearing 2 Ball Bearing
Rated Voltage 12V
Power At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 2.16 W
At Duty Cycle 100%: 7.2 W
AIr Flow At Duty Cycle 20%: 8.8 CFM
At Duty Cycle 50%: 20.3 CFM
At Duty Cycle 100%: 40.5 CFM
Noise Level At Duty Cycle 20%: 16.0 dBA
At Duty Cycle 50%: 32.9 dBA
At Duty Cycle 100%: 47.5 dBA
Air Pressure At Duty Cycle 20%: 0.7 mm-H2O
At Duty Cycle 50%: 3.6 mm-H2O
At Duty Cycle 100%: 14.3 mm-H2O
Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
