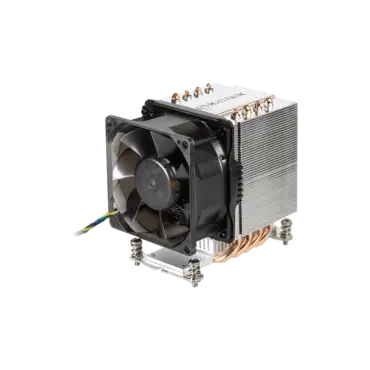

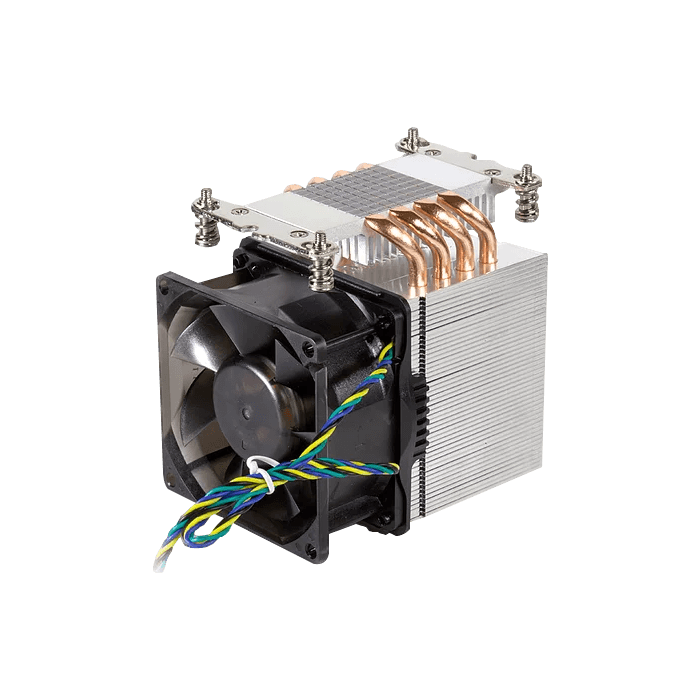

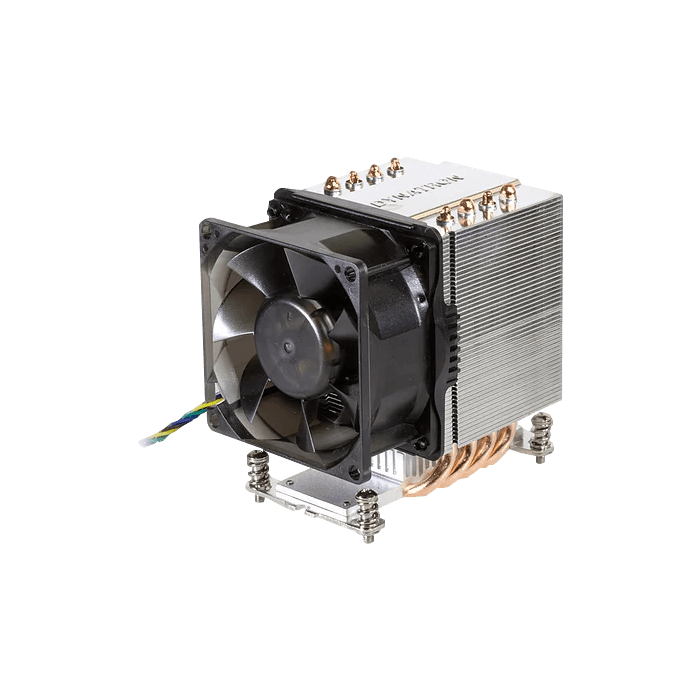

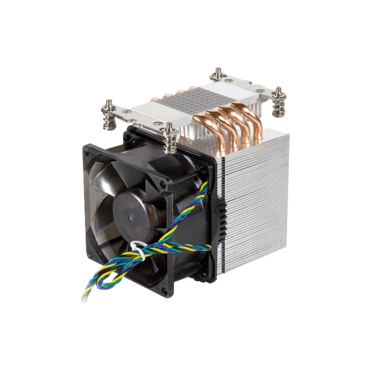

R27, Socket LGA 2011/2066, 110mm Height, 165W TDP, Aluminum CPU Cooler
- SKU: 14448061
- Manufacturer: DYNATRON
- MPN: R27
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$35.28
R27, Socket LGA 2011/2066, 110mm Height, 165W TDP, Aluminum CPU Cooler
The Dynatron R27 CPU cooler is designed for 3U Active cooler with Narrow Type
The Dynatron R27 CPU cooler is designed for 3U Active cooler with Narrow Type
| CPU Support | Intel |
| CPU Socket | LGA 2011/2066 (Narrow Type, 56mm x 95mm Mounting Pitch) |
| Solution | 3U Server and up, Workstation |
| Dimensions | 112.0 x 82.0 x 110.0 mm |
| Weight | 550 g |
| Material | Aluminum Fins, 4x Heat Pipes with H.C.C. Technology |
| Fan Dimension | 80 x 80 x 38 mm |
| Speed |
At Duty Cycle 20%: 1000 RPM At Duty Cycle 50%: 2000 RPM At Duty Cycle 100%: 3800 RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power |
At Duty Cycle 20%: 2.2 W At Duty Cycle 50%: 3.6 W At Duty Cycle 100%: 7.9 W |
| Air Flow |
At Duty Cycle 20%: 13.8 CFM At Duty Cycle 50%: 30.78 CFM At Duty Cycle 100%: 65.4 CFM |
| Noise Level |
At Duty Cycle 20%: 16.0 dBA At Duty Cycle 50%: 31.5 dBA At Duty Cycle 100%: 43.4 dBA |
| Air Pressure |
At Duty Cycle 20%: 0.42 mm-H2O At Duty Cycle 50%: 2.45 mm-H2O At Duty Cycle 100%: 9.75 mm-H2O |
| Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
