R9280X-DC2T-3GD5-V2

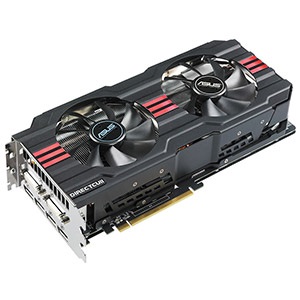

ASUS Radeon R9 280X DirectCU II gives new edge to hardcore gamers
- DirectCU II achieves 20% lower temps with direct-contact copper heatpipes, plus 3X quieter and 6X more powerful twin 100mm fan operation.
- TOP-selected 1070MHz cores run 70MHz higher than reference for smoother gameplay.
- DIGI+ VRM with 12-phase Super Alloy Power delivers precise digital power for superior efficiency, reliability, and performance.
- GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface.
ASUS Exclusive Innovation:
DirectCU II
20% cooler and 3X* quieter Exclusive DirectCU II thermal design includes a direct-GPU contact 10mm copper heatpipe and 220% larger dissipation area to boost heat removal efficiency. It performs 20% cooler and 3X quieter than reference.
*Equivalent to 14dB and performance varies depending on system configuration
TOP-Selected 1070 MHz core
1070 MHz engine clock for better performance and outstanding gaming experience
DIGI+ VRM with Super Alloy Power
30% less power noise and 2.5X greater durability
Acclaimed DIGI+ VRM has been applied via a 12-phase power design that uses digital voltage regulators to minimize power noise by 30%, enhance power efficiency by 15%, widen voltage modulation tolerance, and improve overall stability and longevity by 2.5 times over reference.
GPU Tweak
Real-time intuitive graphics tuning
- Shows detailed specs and actual card status with GPU-Z
- Sync GPU clocks and voltages for easier overclocking
- Monitoring widget provides real-time detailed multi-parameter info
- 2D/3D switcher locks cards in 3D mode for higher benchmarks
- Automatically checks and updates drivers and BIOS versions
- Stream on-screen action to the web in full HD
3GB GDDR5 Memory
On-board memory for the best gaming experience & the best resolution
Graphics GPU Features:
Powered by AMD Radeon™ R9 280
CrossFire X Support
Multi-GPU technology for extreme performance
PCI Express 3.0
Delivers double the bandwidth per lane of PCIe 2.0 for faster GPU-CPU communication.
AMD Eyefinity™Technology
Extend the view across up to 6displays to immerse yourself in gameplay and entertainment
AMD HD3D
Immerse in stereoscopic 3D gaming and get up close and personal with your favorite stars while watching Blu-ray 3D. AMD HD3D is also designed for professionals who create complex visual effects and detailed data visualizations.
Microsoft DirectX 11.2 API
Brings new levels of visual realism to gaming on the PC and get top-notch performance.
Specifications:
| Graphics Engine |
AMD Radeon R9 280X |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 |
| Engine Clock |
1070 MHz |
| Memory Clock |
6000 MHz ( 1500 MHz GDDR5 ) |
| Memory Interface |
384-bit |
| Resolution |
DVI Max Resolution : 2560x1600 |
| Interface |
DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)
Display Port : Yes x 4 (Regular DP)
HDCP Support : Yes |
| Accessories |
1 x CrossFire cable
1 x DVI to D-Sub adaptor
1 x Power cable |
| Software |
ASUS GPU Tweak & Driver |
| Dimensions |
11.2 " x 5.7 " x 1.5 " Inch |
| Note |
Specifications are subject to change without notice.
PCB color and bundled software versions are change without notice.
Brand and product names mentioned are trademarks of their respective company. |
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
|
