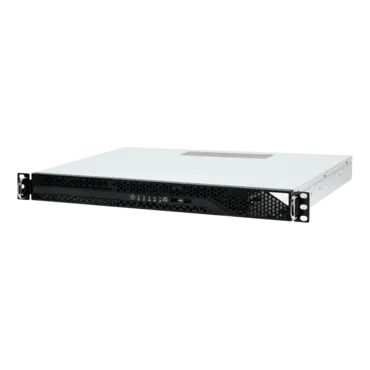

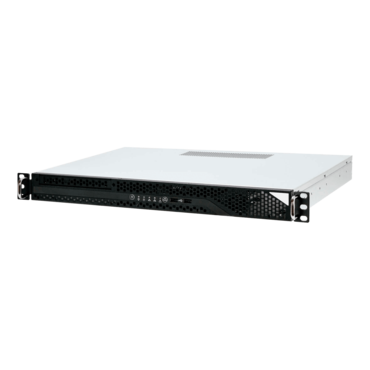

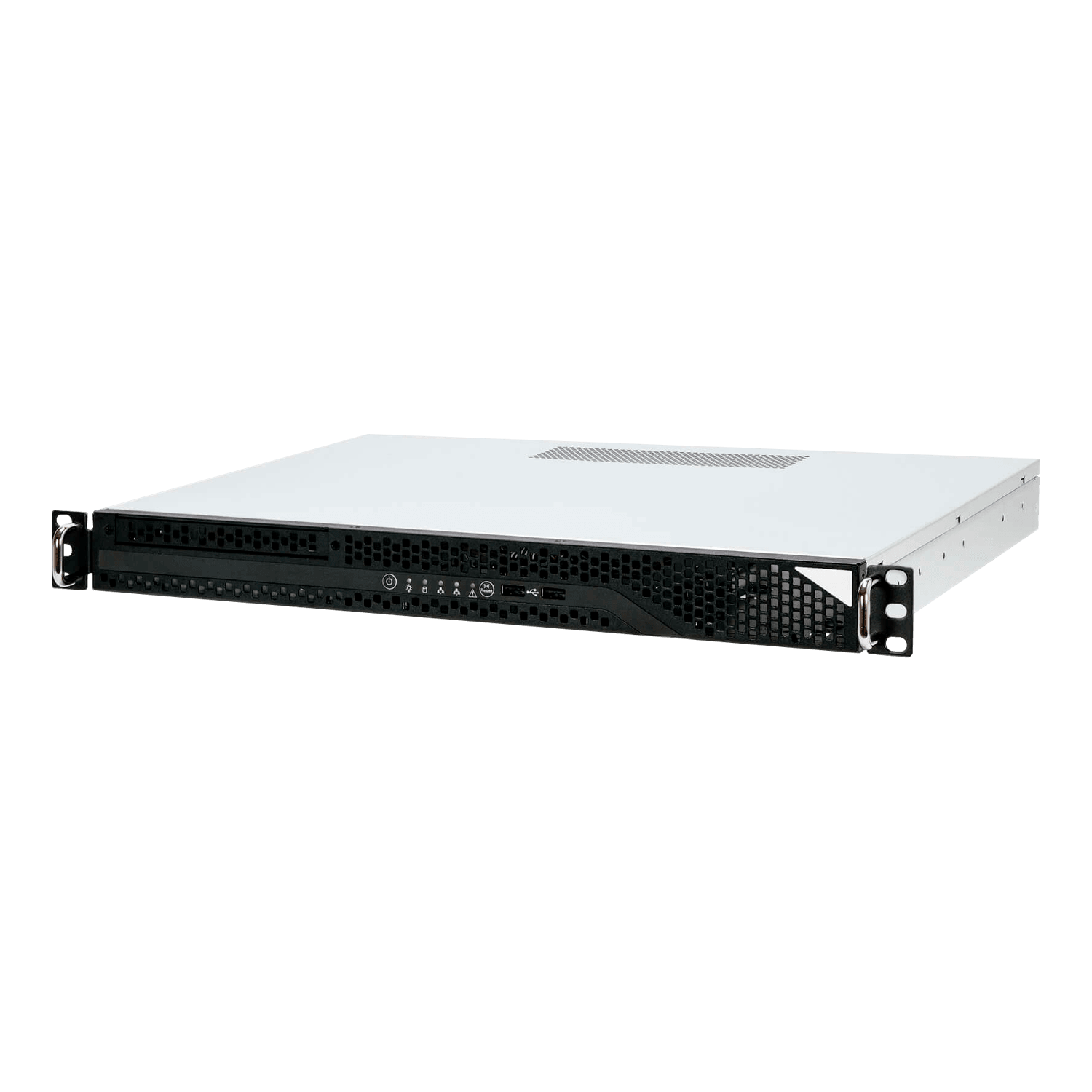

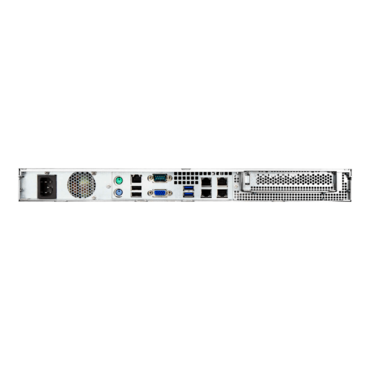

RA100-S315.B3.3F, 1x Slim ODD, 2x 3.5 Internal Bays, 315W PSU, ATX, Black/Grey, 1U Chassis - TAA Compliant
- SKU: 18607554
- Manufacturer: InWin
- MPN: RA100-S315.B3.3F
- Availability: TEMPORARILY OUT OF STOCK
Price
$206.09
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6") |
| Drive Bay |
• External: slim ODD x 1 • Internal: 3.5" x 2 or 3.5" x 1 & 2.5" x 1 |
| Power Supply |
Supports: • Form factor: Flex • Watt: up to 315W |
| Indicators | Power status, HDD, LAN activity LEDs |

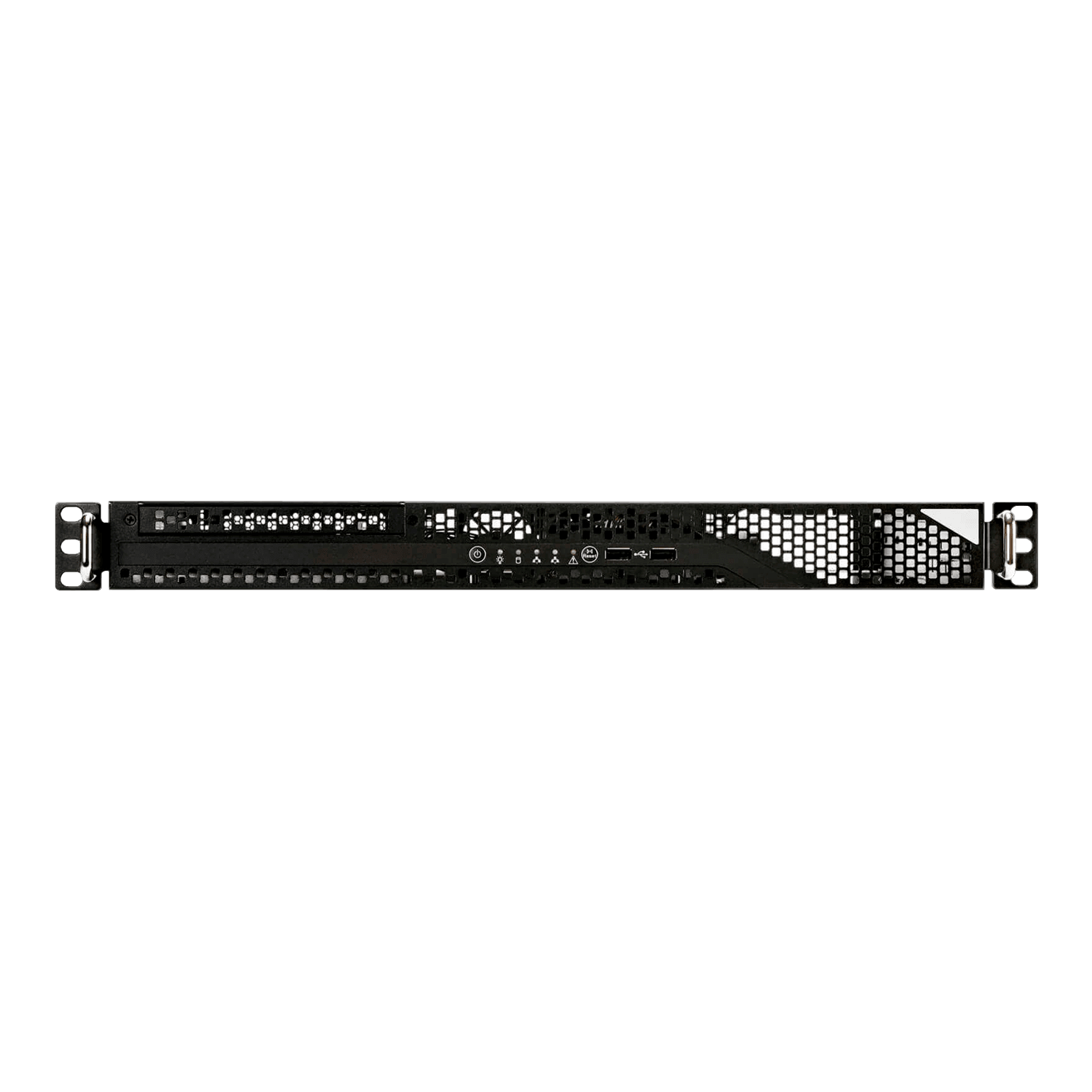

| Front Control Panel | Power switch, system reset, USB 2.0 x 2 |
| Cooling Fans | Supports 40 x 28mm PWM fan x 3 (pre-installed x 3) |
| Expansion Slot | Full height PCIe slot x 1 (via riser card and bracket) |
| Material |
• Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 20" friction slide rail |
| Product Dimensions (DxWxH; Chassis Only) |
393.2 x 430 x 43.5mm (15.48" x 16.93" x 1.71") |
| Package Dimensions (DxWxH) | 592 x 518 x 155mm |
| Weight (Chassis Only) |
• Net weight: 3.67kg • Gross weight: 4.79kg |
| Cubic Feet | 1.68 |
| Container Information |
Single packing with pallets: • 20': 440pcs • 40': 968pcs • 40' HQ: 1056pcs |
|
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications. * The above image is for reference only. All hardware components and optional parts are not included. |
|
