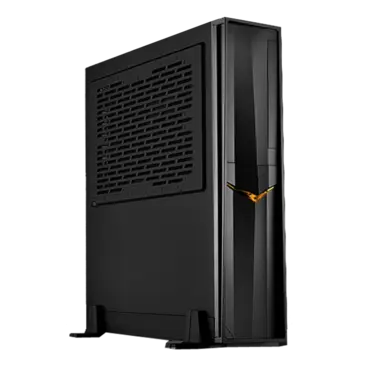

RAVEN Series RVZ02B, No PSU, Mini-ITX, Black, Slim Case
Quantity:
- SKU: 10013086
- Manufacturer: SILVERSTONE
- MPN: RVZ02B
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$127.31
- Highest performance capability in super slim form factor
- Support graphics card up to 13 inches
- Mini-ITX motherboard & SFX PSU compatible
- Independent expansion slot design for easy assembly
- Tool-less drive cage design
- Fits in nearly any environment with horizontal or vertical orientation
| Model No. |
SST-RVZ02B (black) SST-RVZ02B-W (black + window) |
|
| Material | Reinforced plastic outer shell, steel body | |
| Motherboard | Mini-ITX | |
| Drive bay | External | Slim optical 12.7mm or 9.5mm x 1 |
| (9.5mm compatibility limited to tray type) | ||
| Internal |
2.5” x 2 (one additional 3.5” or 2.5” space depending on expansion card installed) |
|
| Cooling system | Front | -- |
| Rear | Passive exhaust vents | |
| Side | Oversized vents over CPU/motherboard and expansion area | |
| Top | -- | |
| Bottom | -- | |
| Internal | -- | |
| Expansion slot | 2 | |
| Front I/O port |
USB 3.0 x 2 audio x 1 MIC x 1 |
|
| Power supply | SFX & SFX-L | |
| Expansion card | * Compatible up to 13" (330mm) long, width restriction-4.78" (121mm) | |
| Limitation of CPU cooler | 58mm | |
| Net weight | 3.2kg~3.3kg | |
| Dimension |
380mm (W) x 87mm (H) x 370mm (D), 12 liters 14.96" (W) x 3.43" (H) x 14.57" (D), 12 liters |
|
| Extra |
Support two Kensington locks PCI Express riser card set x 1 |
|
| * Expansion card holder needs to be removed when installing expansion/graphics card wider than 4.78 inches (121mm). When system is assembled without the holder, vertical orientation of the case is recommended and transporting/shipping should be avoided. For more details, please refer to manual. | ||
