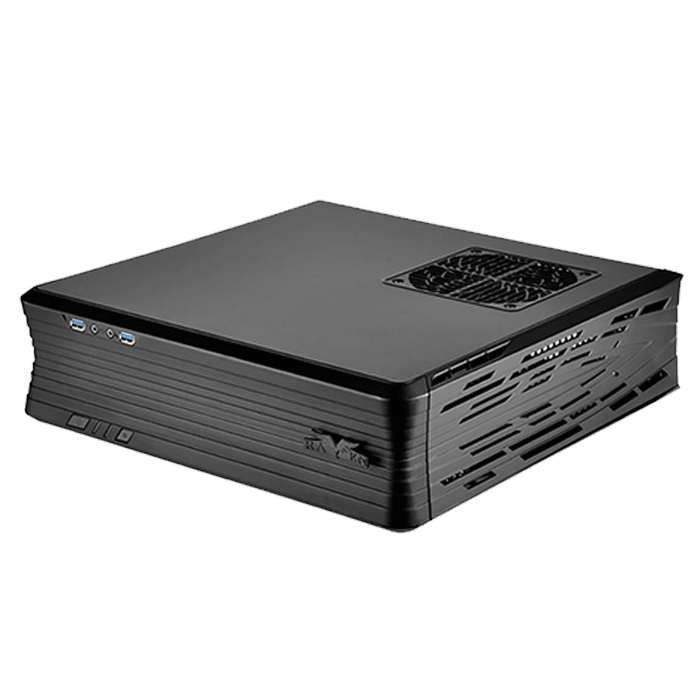

RAVEN Series SST-RVZ01B-E, No PSU, Mini-ITX, Black, Slim Case

SKU: 10477871

Manufacturer: SILVERSTONE

MPN: RVZ01B-E

Availability: Unknown


Price: $118.44
or as low as $4/month
Quantity:

SilverStone RVZ01-E is an evolution of the ground-breaking RAVEN Z RVZ01, a slim form factor case with tremendous capability. While maintaining the same volume size and appearance as the original model, the RVZ01-E’s interior was reworked to convert SFX power supply space into one for standard ATX (PS2) power supply. This amazing change came with little sacrifice as the case still has support for the biggest consumer graphics cards on the market with superb air cooling performance. Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space-constrained environment that requires a powerful PC. For those looking to build a slim form factor PC, the RVZ01-E’s ability to accommodate standard ATX power supply will help to open up more flexible and varied assembly option.

  • Mini-ITX motherboard & ATX PSU compatible
  • Signature RAVEN styling touches
  • Support graphics card up to 13 inches
  • Maximum performance in slim form factor with support for liquid cooling*
  • Positive air pressure design for excellent cooling/quietness and dust-prevention
  • Fits in nearly any environment with horizontal or vertical orientation

Model No.

SST-RVZ01B-E

Material

Reinforced plastic outer shell, steel body
Color Black

Motherboard

DTX, Mini-ITX

Drive Bay

External None

Internal 2.5” x 4*

Cooling System

Top 1 x 120mm fan, 1500rpm, 18dBA
Bottom 1 x 120mm fan, 1500rpm, 18dBA
1 x 120mm fan slot

Expansion Slot

2

Front I/O Port

USB 3.0 x 2
audio x 1
MIC x 1

Power Supply

Optional PS2(ATX)

Expansion Card

Support graphics card up to 13”, width restriction - 5.88”

Limitation of CPU cooler

83mm

Limitation of PSU

150mm*

Net Weight

3.7 kg

Dimension

382mm (W) x 105mm (H) x 350mm (D), 14 liters

Extra

Support Kensington lock
* 2.5” drive on center bracket may be difficult or impossible to install due to power supply cable interference, we recommend using 140mm deep or shorter modular power supply with flat cables.
* Maximum length for power supply is 150mm but we recommend 140mm deep power supply due to varying connector locations and the unique structure of RVZ01-E.
Due to the use of internal power cord extension, we recommend not to exceed 800W when powering off a 110V outlet (no limit for 220V).
