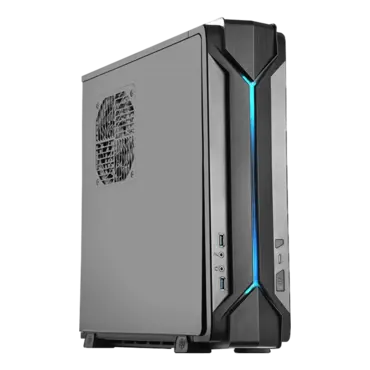

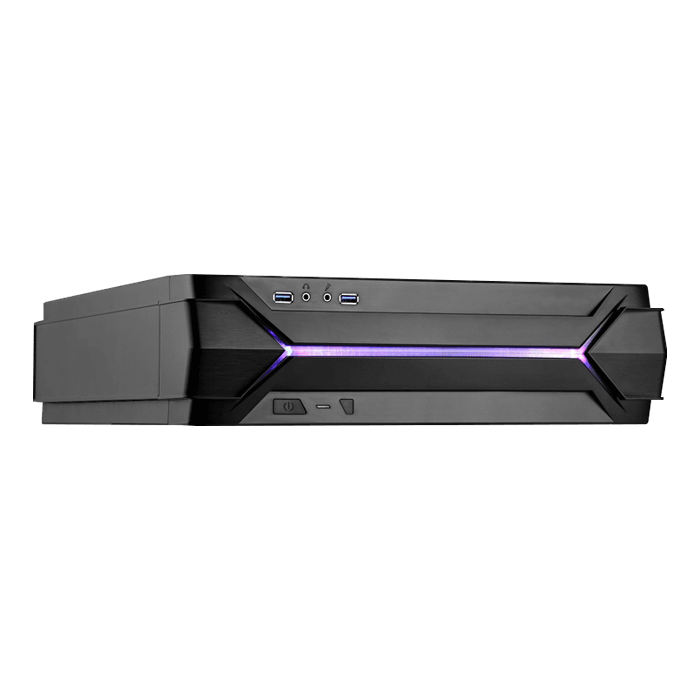

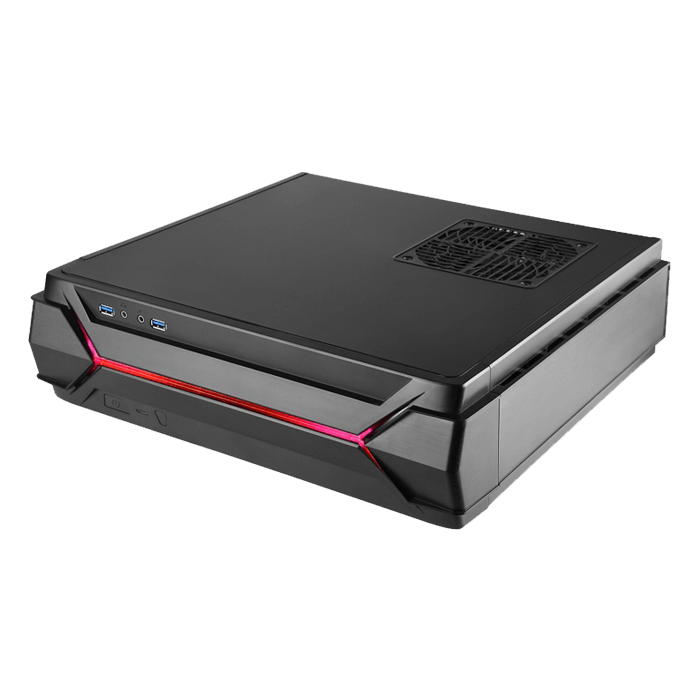

SilverStone RVZ03 is a further evolution of the highly rated RAVEN Z RVZ01-E, a slim form factor case with tremendous capability. It has the same optimized interior that has room for a standard ATX (PS2) power supply and support for some the biggest consumer graphics cards on the market with superb air cooling performance. Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space-constrained environment that requires a powerful PC. For those looking to build a slim form factor PC with extra flair, the RVZ03’s inclusion of RGB lighting and control box bring about another exciting chapter to the famed RAVEN series of computer cases.
Model No. | SST-RVZ03B | |
Material | Reinforced plastic outer shell, steel body | |
Motherboard | Mini-DTX, Mini-ITX | |
Drive bay | Internal2.5" x 4* | |

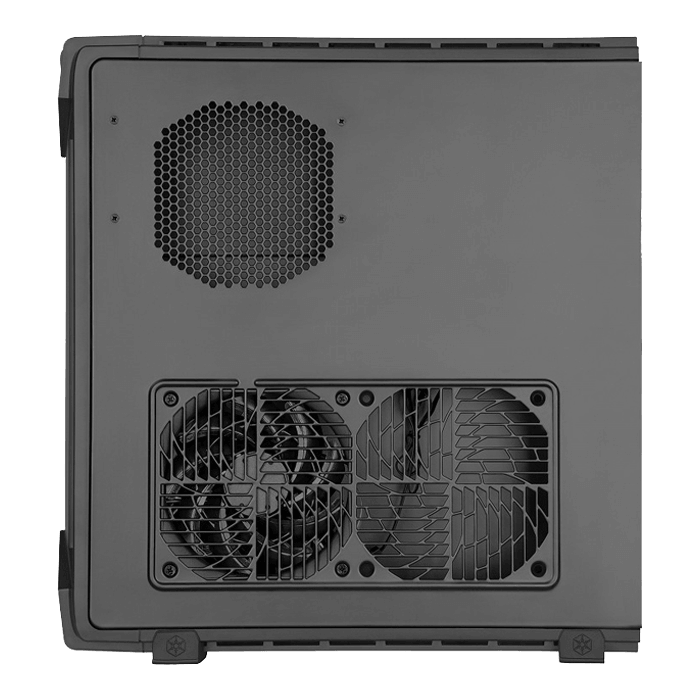

Cooling system | Top | 1 x 120mm fan, 1500rpm, 18dBA |
Bottom | 1 x 120mm fan, 1500rpm, 18dBA | |
1 x 120mm fan slot | ||

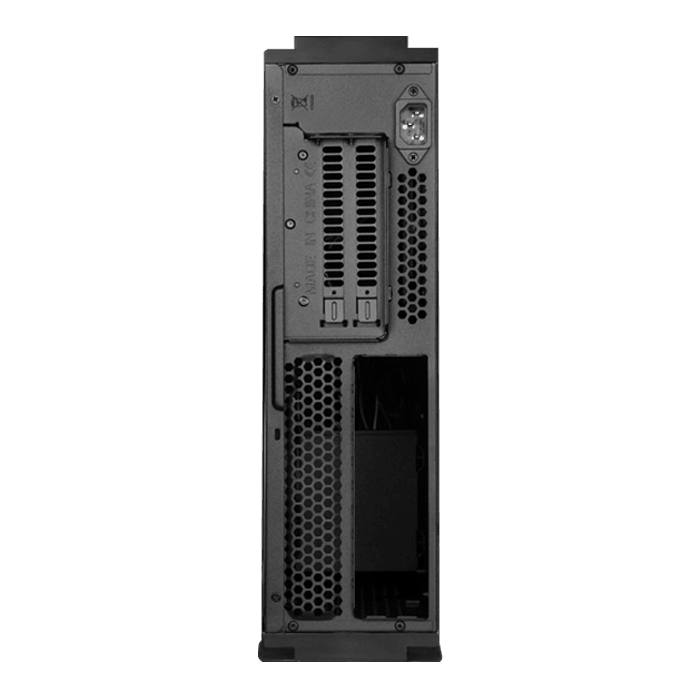

Expansion slot | 2 | |
Front I/O port | ||
USB 3.0 x 2 | ||
audio x 1 | ||
MIC x 1 | ||
Power supply | Optional PS2(ATX) | |
Expansion card | Compatible up to 13" (330mm) long, width restriction-5.88" (149mm) | |
Limitation of CPU cooler | 83mm | |
Limitation of PSU | 150mm** | |
Net weight | 4.05 kg | |
Dimension | 382mm (W) x 105mm (H) x 350mm (D), 14 Liters
15.04" (W) x 4.13" (H) x 13.78" (D), 14 Liters |
|
Extra | Support Kensington lock
PCI Express riser card set x 1 RGB light strip control box x 1 |
|
* 2.5" drive on center bracket may be difficult or impossible to install due to power supply cable interference, we recommend using 140mm deep or shorter modular power supply with flat cables
** Maximum length for power supply is 150mm but we recommend 140mm deep power supply due to varying connector locations and the unique structure of RVZ03.Due to the use of internal power cord extension, we recommend not to exceed 800W when powering off a 110V outlet (no limit for 220V) |
