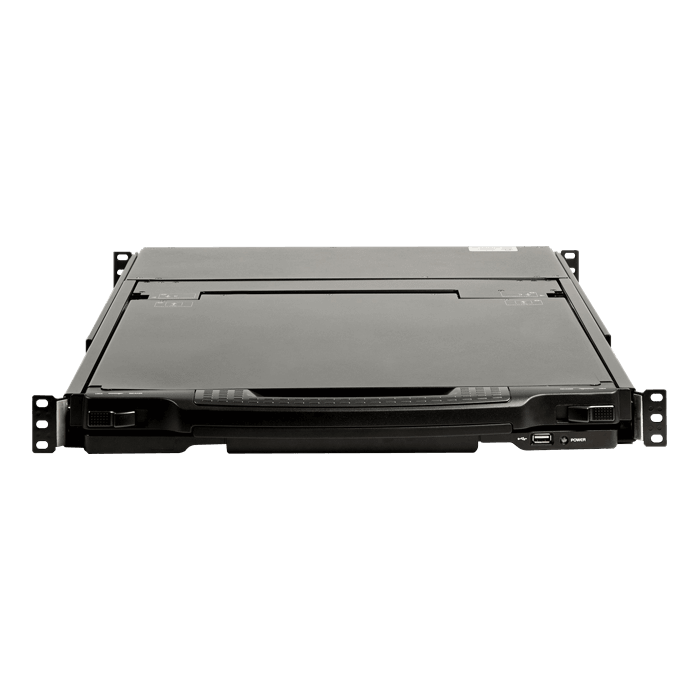

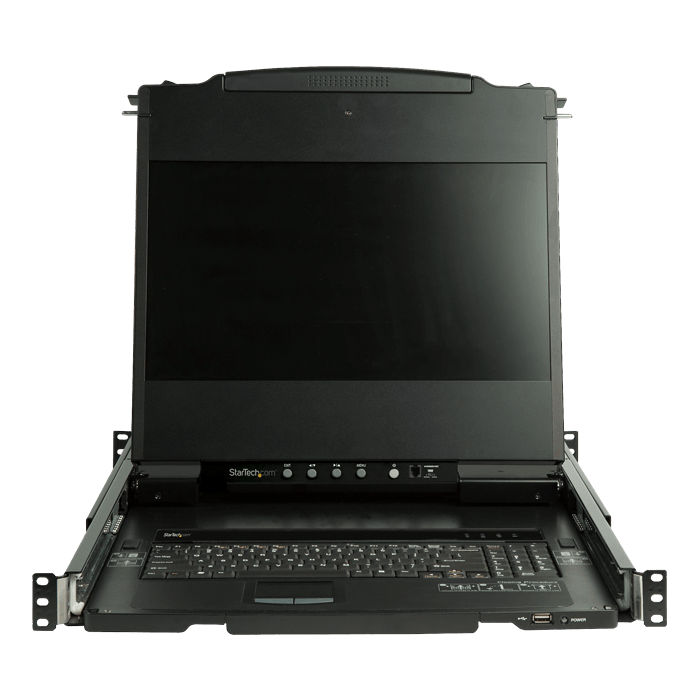

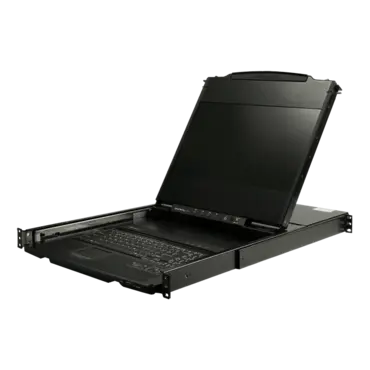

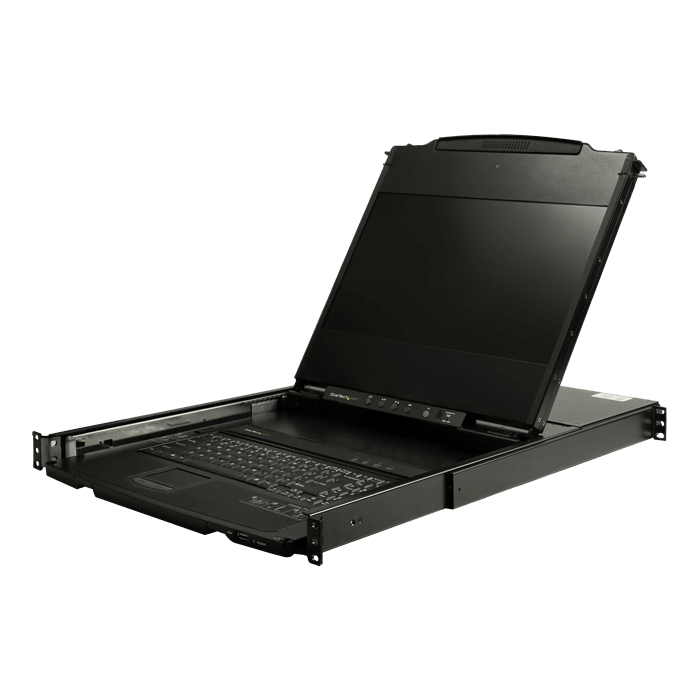

RKCOND17HD, Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack
- SKU: 12518204
- Manufacturer: STARTECH.COM
- MPN: RKCOND17HD
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$1,451.97
- FLEXIBLE DESIGN: Rackmount KVM console w/ dual rails that allow the screen & keyboard to be pulled in & out independently, perfect for system monitoring as needed and to be put away when not in use
- HIGH DEFINITION: Rack mount monitor w/high-resolution widescreen (16:9) 1080p LCD panel perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring
- VERSATILE INTERFACES: 17.3" Active Matrix TFT 16:9 widescreen | Dual Rails | 1U height | Full keyboard + Trackpad | Integrated Power Supply | Front Facing USB Port | Supports VGA / DVI & USB
- WIDE COMPATIBILITY: Single port HD KVM console drawer works w/ any KVM switch brand or model that supports VGA or DVI and USB interfaces and conveniently slides into the server rack when not in use
- MAX DURABILITY: Features a durable steel housing design and rails to stand up to frequent use, rated to work in environments from 0 to 40 deg. C and a 44,230 hour MTBF with 24/5 Tech Support
| Warranty Information | |
| Warranty | 2 Years |
| Connector(s) | |
| Console Interface(s) |

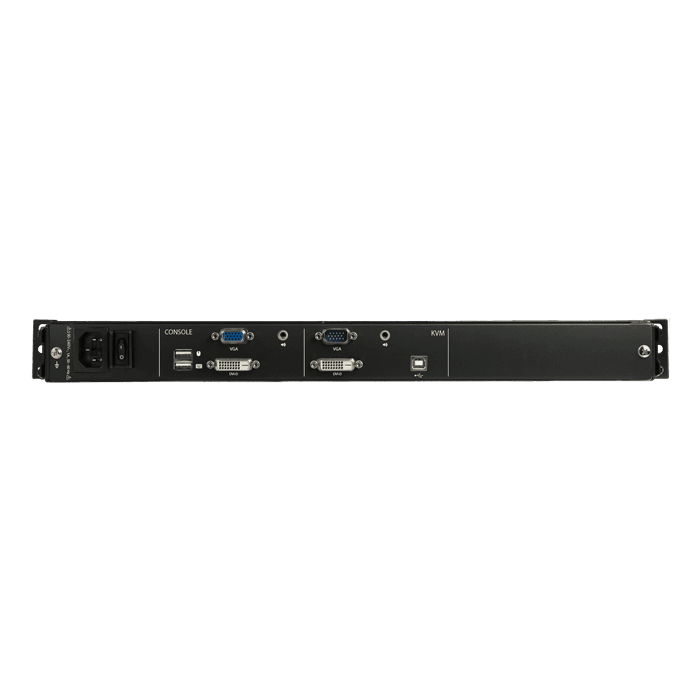

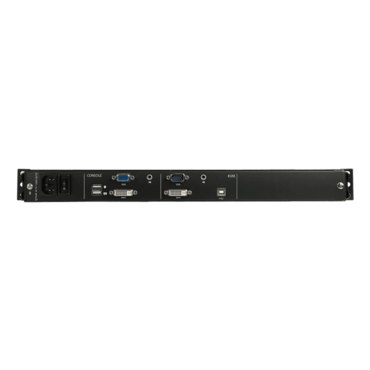

2 - USB Type-A (4 pin) USB 2.0 1 - VGA (15 pin, High Density D-Sub) 1 - DVI-D (25 pin) 1 - 3.5 mm Stereo Audio Host Connectors 1 - VGA (15 pin, High Density D-Sub) 1 - DVI-D (25 pin) 1 - USB Type-B (4 pin) USB 2.0 1 - 3.5 mm Stereo Audio |
| Environmental | |
| Operating Temperature | 0~40 Celsius Degree |
| Storage Temperature | -20~60 Celsius Degree |
| Humidity | 0~80% RH Non-condensing |
| Hardware | |
| U Height | 1U |
| Audio | Yes |
| Display Size | 17.3" |
| Panel Type | Active Matrix TFT LCD |
| KVM Ports | 1 |
| PC Interface | USB |
| PC Video Type | DVI+VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Yes |
| Cables Included | Yes |
| Indicators | |
| LED Indicators |
1 - Power 1 - Num Lock 1 - Caps Lock 1 - Scroll Lock |
| Packaging Information | |
| Package Height | 5,2 in [13,3 cm] |
| Package Length | 33,1 in [84,0 cm] |
| Package Width | 26,8 in [68,0 cm] |
| Shipping (Package) Weight | 41,8 lb [18,9 kg] |
| Performance | |
| On-Screen Display | No |
| DVI Support | Yes |
| Hot-Key Selection | Yes |
| Maximum Analog Resolutions | 1920 x 1080 @ 60Hz |
| Maximum Digital Resolutions | 1920 x 1080 @ 60Hz |
| Supported Resolutions |
1024×576 1152×648 1280×720 1366×768 1600×900 1920×1080 |
| Aspect Ratio | 16:9 |
| Wide Screen Supported | Yes |
| Response Time | 8 ms |
| Contrast Ratio | 650:1 |
| Brightness | 250 cd/m² |
| Color Depth | 18-bit, 262,144 colors |
| Pixel Pitch Support | 0.199 x 0.199 mm |
| Viewing Angle | 140° (H), 120° (V) |
| General Specifications | Keyboard Layout: US/NA - Standard English QWERTY Keyboard |
| MTBF | Approx. 44230 hrs. |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Cable Length |
USB and VGA Combo Cable 1.2M 3.5in Audio cable 1.8M |
| Product Length | 27,0 in [68,5 cm] |
| Product Width | 18,9 in [48,0 cm] |
| Product Height | 1,7 in [4,4 cm] |
| Weight of Product | 30,1 lb [13,6 kg] |
| Maximum Mounting Depth | 39,4 in [100 cm] |
| Minimum Mounting Depth | 25,6 in [65,0 cm] |
| Power | |
| Power Source | International Power Cords |
| Input Voltage | 100 - 240 AC |
| Input Current | 1A |
| Power Consumption (In Watts) | 19.4W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package |
1 - LCD Console 2 - Rear Mounting Brackets 1 - Set of KVM Cables (USB/VGA) 1 - Audio Cable 1 - Firmware Update Cable 8 - M5 Cage Nuts 8 - M5 Screws 5 - Power Cords (NA, JP, UK, EU, ANZ) 1 - Quick-Start Guide |
