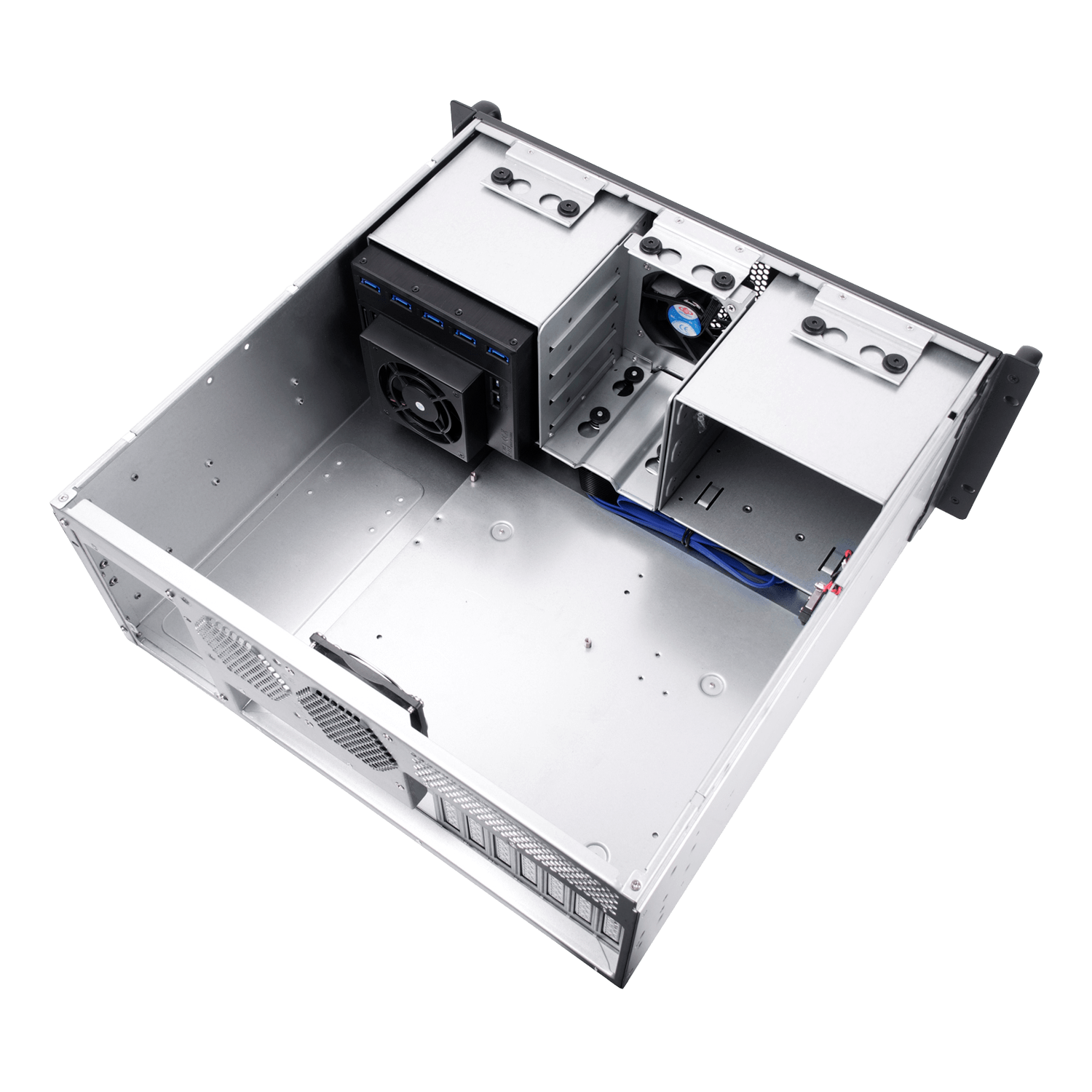

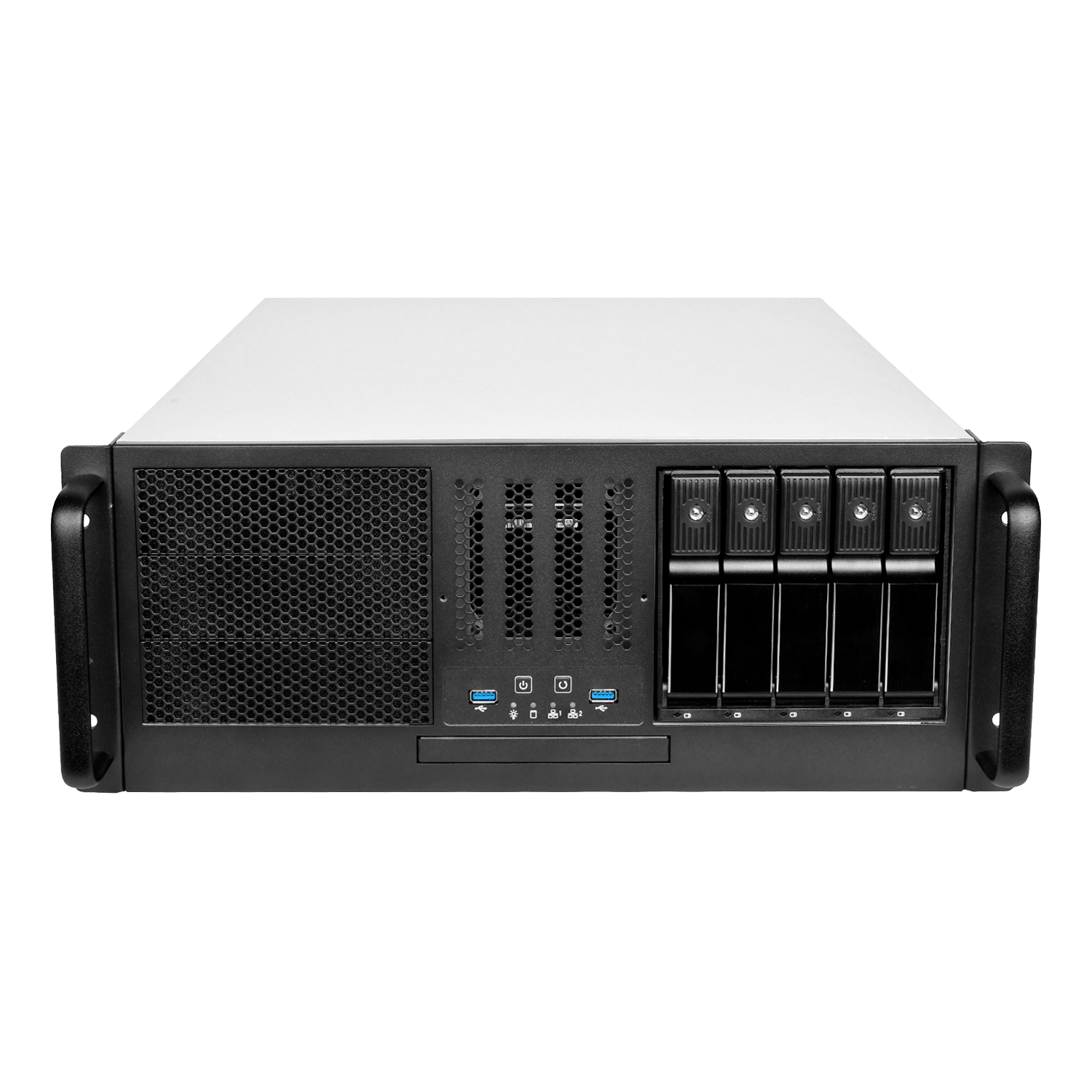

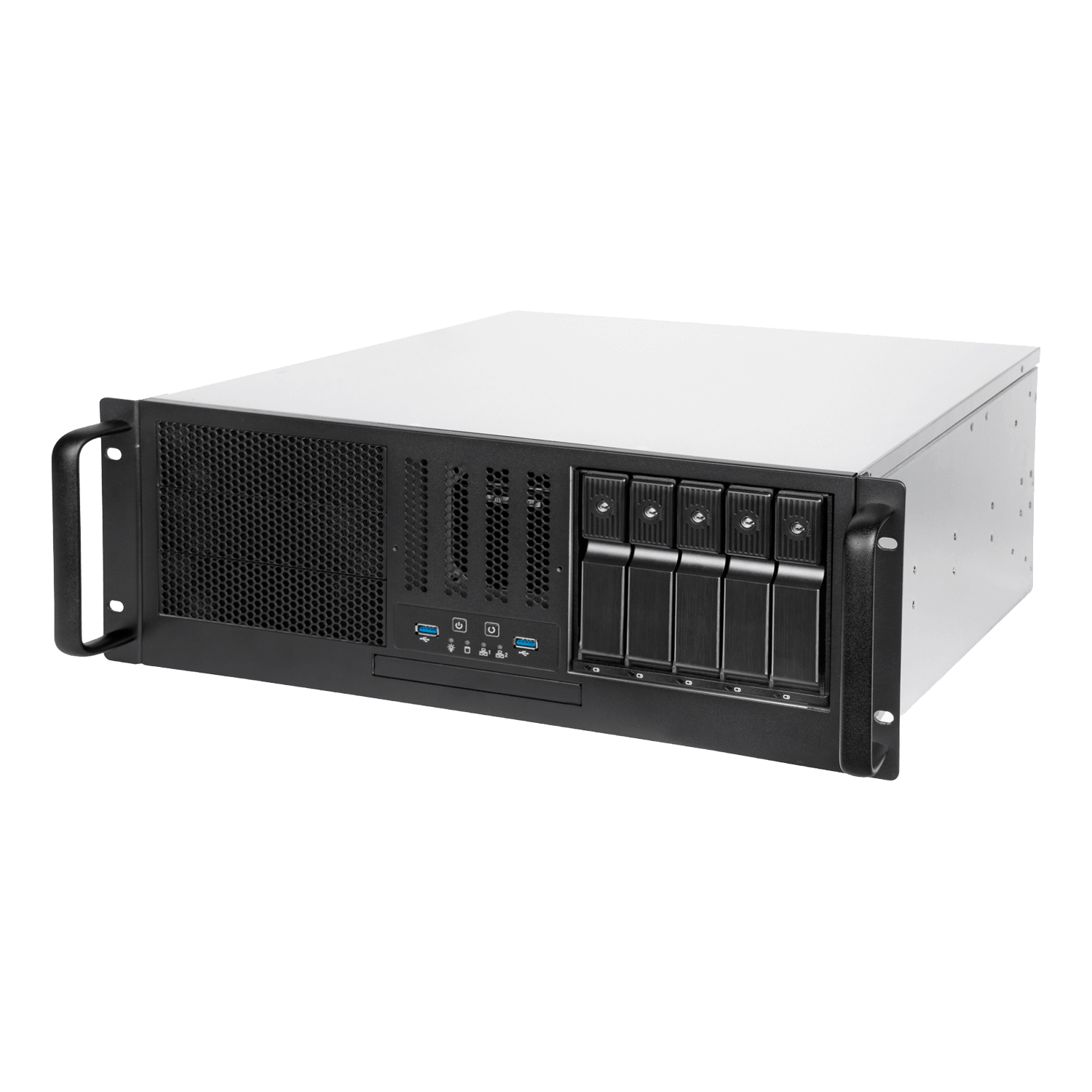

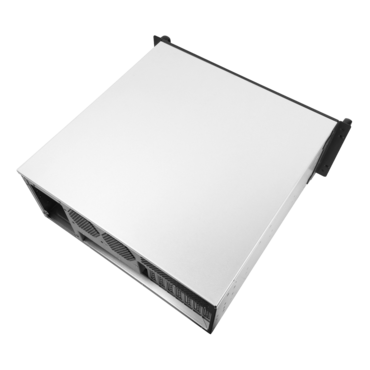

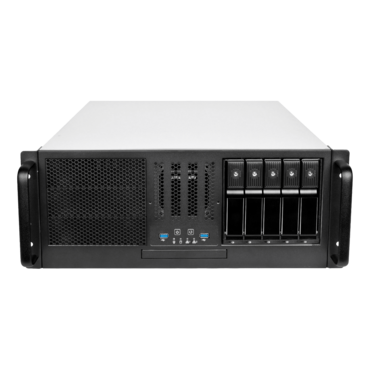

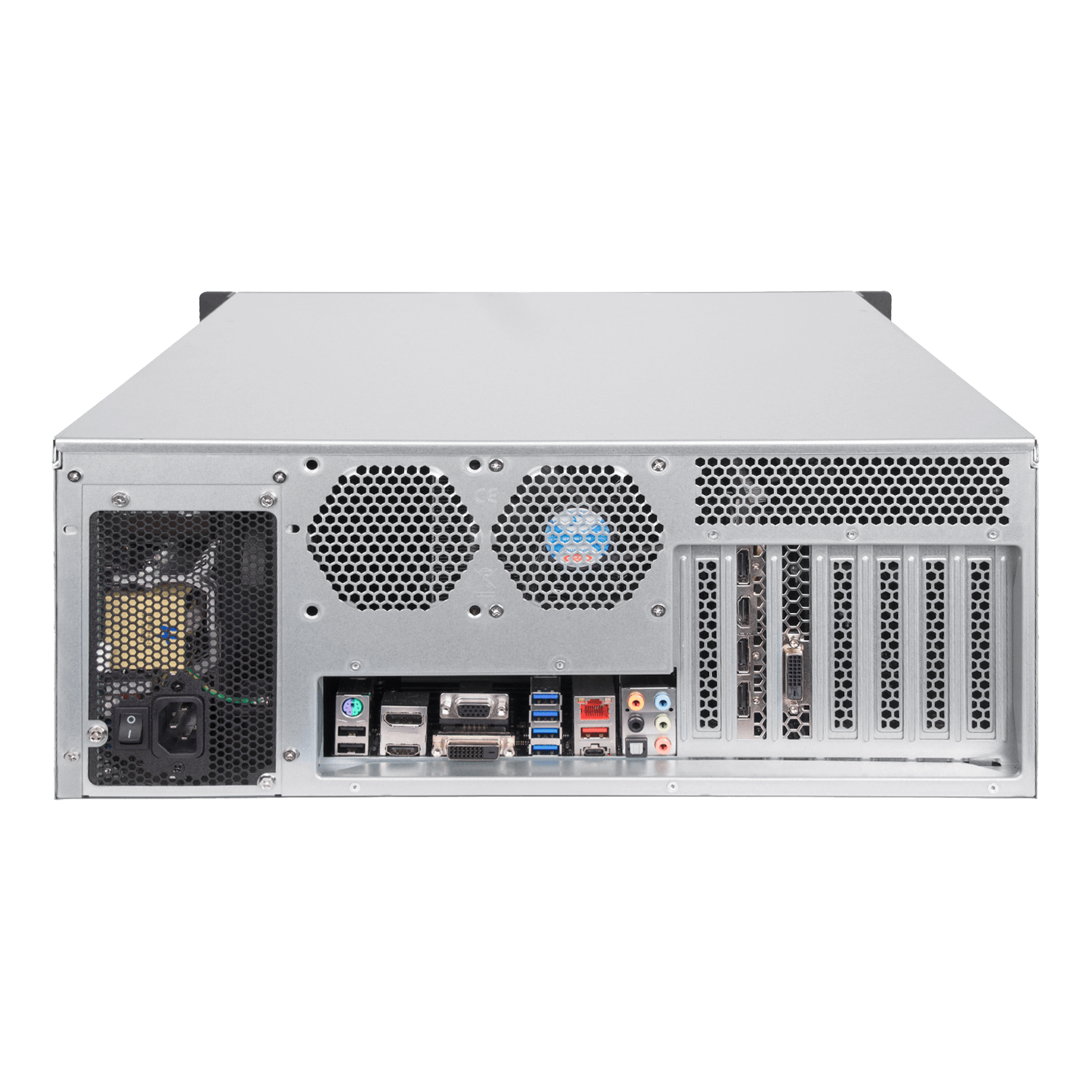

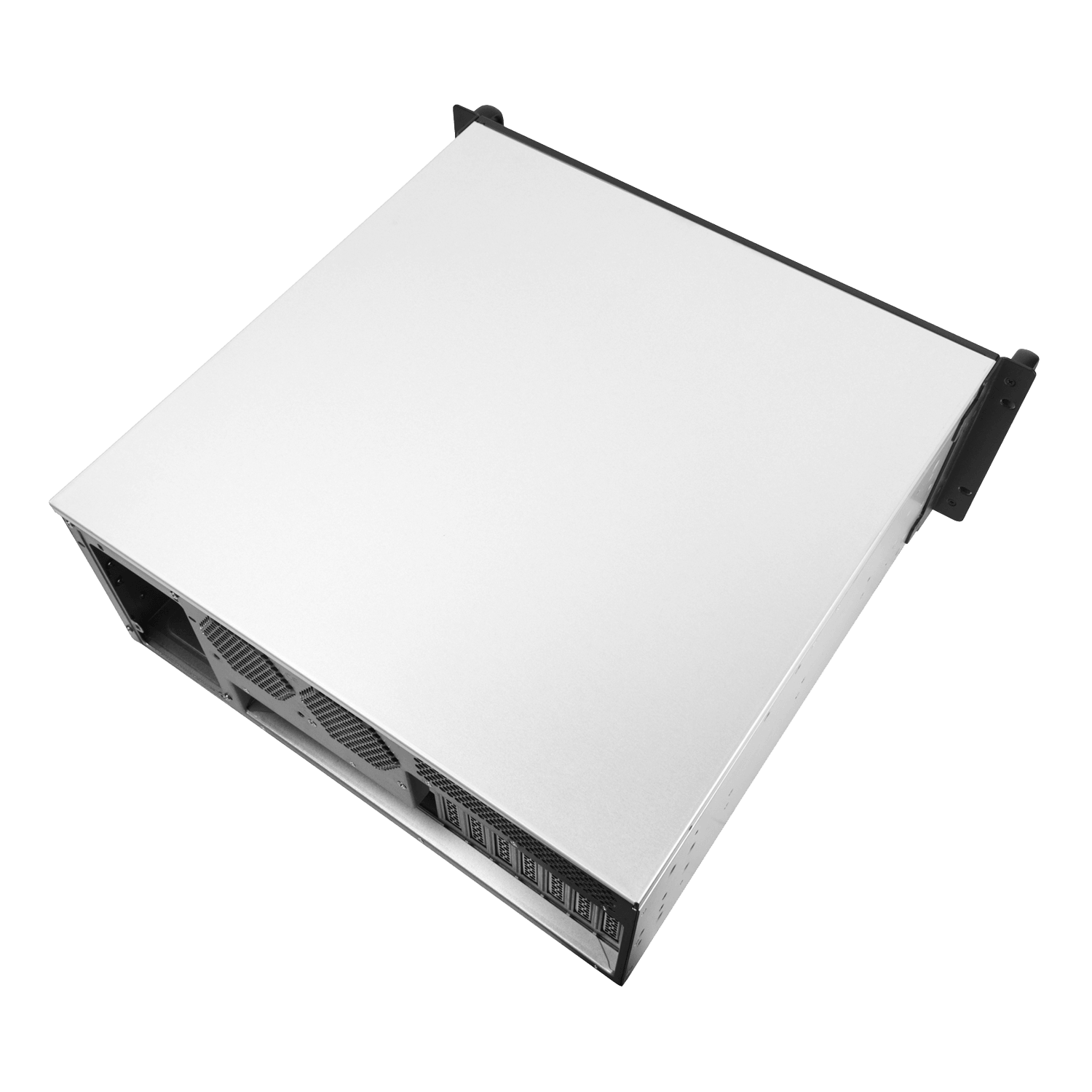

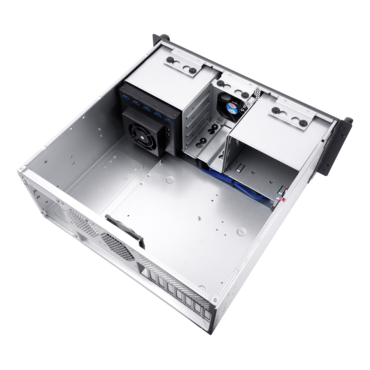

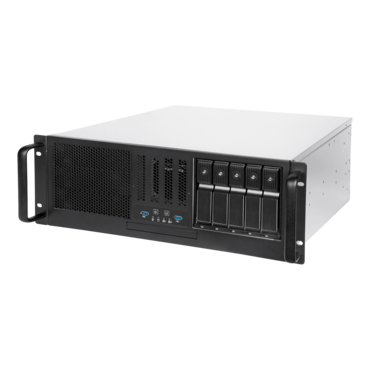

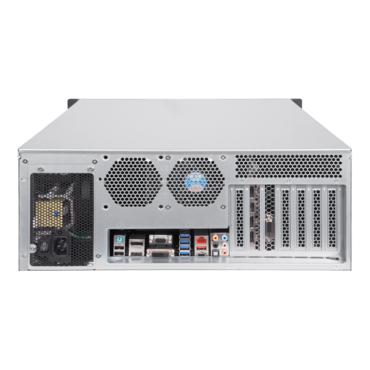

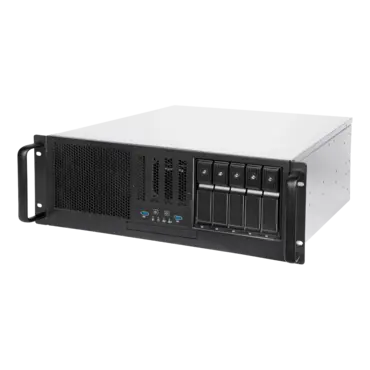

RM41-H08 4U Rackmount Chassis, 3x 5.25", 9x 3.5", 2x 2.5" Black
- SKU: 15356581
- Manufacturer: SILVERSTONE
- MPN: RM41-H08
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
- Supports up to five 12 Gbit/s 3.5" SAS / SATA drives with tray-free & screw-less design
- Drive tray features anti-theft lock design to keep confidential information secured
- Supports hot-swap function
- Supports up to SSI-CEB motherboard
- Supports 7 standard size PCI / PCIe expansion slots
- Three 5.25" drive bays for a more flexible installation of 5.25" devices
- Front I/O with 5Gbps USB 3.1 Gen1 ports, backward compatible with USB 2.0 / 1.1
- Pre-drilled mounting holes for easy sliding rails installation.
| Model No. | SST-RM41-H08 |
| Chassis form factor | 4U |
| Motherboard | SSI-CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") |
| Material | SGCC |
| Main metal thickness | 1.2mm |
| Drive Support |
External: 5.25" x 3 3.5" x 5 (Hot-swappable) Internal: 3.5" x 4 2.5" x 2 (Support up to 15mm) 2.5" x 1 (Support up to 15mm) or slim optical drive (Support up to 12.7mm) |
| Cooling system |
Front: 80 x 25mm fan slot x 1 Rear: 80 x 25mm fan slot x 2 (both fans included) Internal: 80mm fan x 1, 3000rpm (on hot-swap cage) |
| Limitation of CPU cooler | Height w/ expansion card retainer: 130mm Height w/o expansion card retainer: 148mm |
| Expansion Slot | 7 standard PCI / PCIe expansion slots |
| Limitation of expansion card | Length w/ 5.25” drive cage: 278mm Length w/o 5.25” drive cage: 426mm |
| Power Supply | PS2 / ATX / Mini Redundant (supports up to 200mm) 2U Redundant (RM41-H08 V2.0 or after) |
| Front I/O Port | USB 3.1 Gen1 Type-A x 2 |
| Front buttons | Power On / Off, restart |
| LED Indicators | Power status x 1, system reset x 1, network status x 2 |
| Dimension | 430mm (W) x 176mm (H) x 446mm (D) |
| Net Weight | 10.7 kg |
