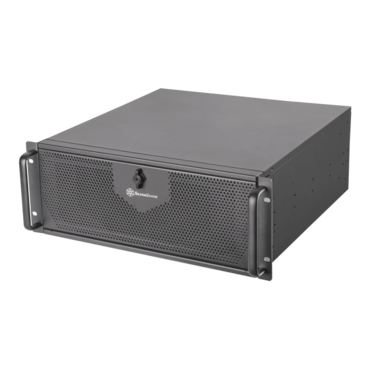

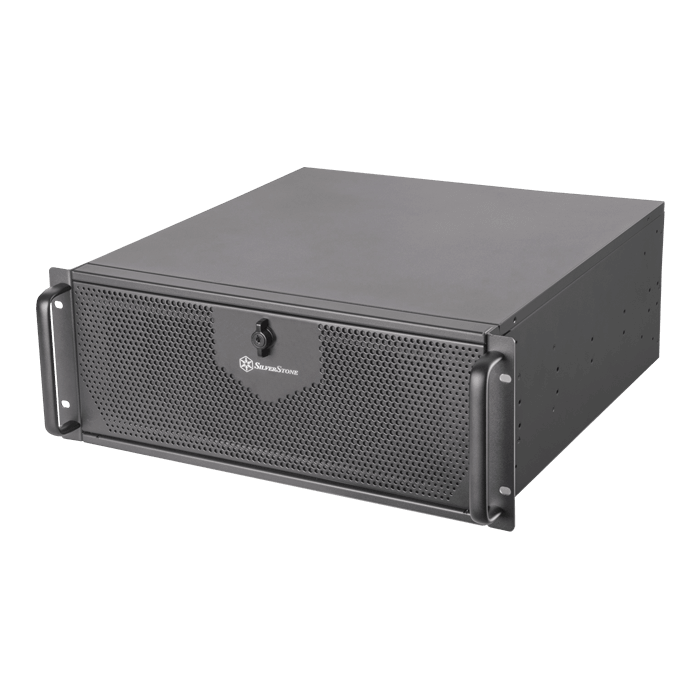

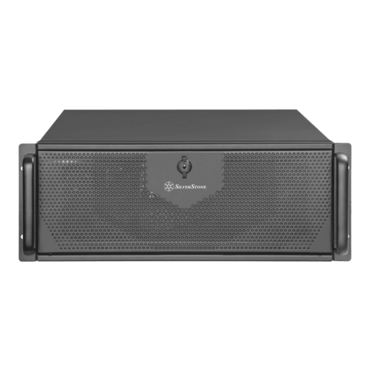

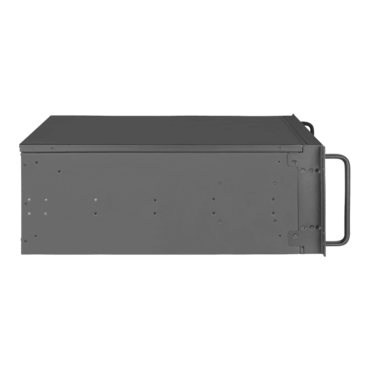

RM42-502, 2x 5.25", 1x 2.5" Drive Bays, No PSU, SSI-EEB, Black, 4U Chassis
- SKU: 13556844
- Manufacturer: SILVERSTONE
- MPN: RM42-502
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$386.40
- Supports up to SSI-EEB motherboards

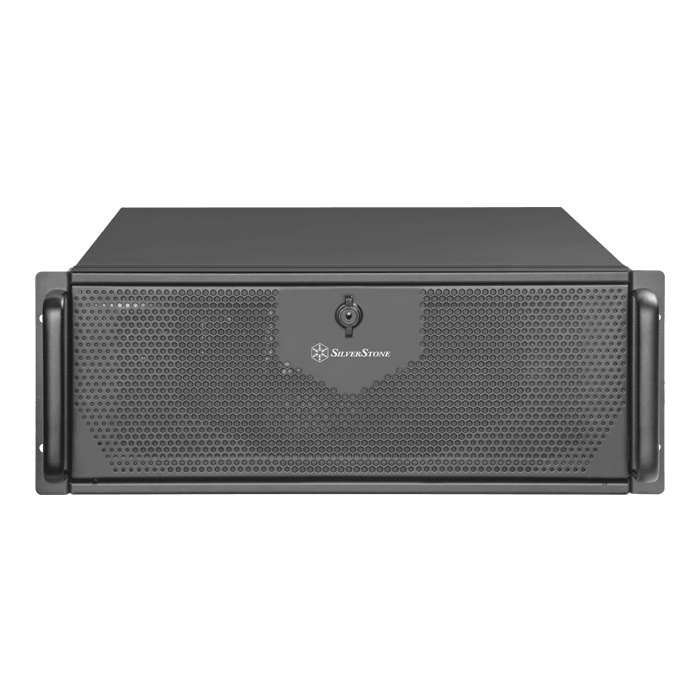

- Front panel features anti-theft lock design providing additional security
- Supports 240mm liquid cooling radiators
- Two 5.25" drive bays directly compatible with 3.5" or 2.5" drives
- Includes one USB Type-C interface
- Includes sliding rail mounting holes for quick rail installation
- Can be placed upright or horizontal
| Model No. | SST-RM42-502B (Black) | ||
| Chassis form factor | 4U | ||
| Material | Steel | ||
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX | ||
| Drive Bay | External | 5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2) | |
| Internal | 2.5" x 1 | ||
| Cooling System | Front | 120mm x 2 (120mm x 1 fan included) | |
| Rear | 80mm x 2 (80mm x 1 fan included) | ||
| 120mm x 2 / 240mm x 1 | |||
| Power Supply | PS2 (ATX) (PSU + optical drives / 5.25" devices = 442mm) / Mini Redundant | ||
| Expansion card |
Length w/ expansion card retainer: 337mm Length w/o expansion card retainer: 426mm Width w/ GPU holder: 116mm Width w/o GPU holder: 154mm |
||
| Limitation of CPU cooler |
w/ GPU holder: 130mm w/o GPU holder: 148mm |
||

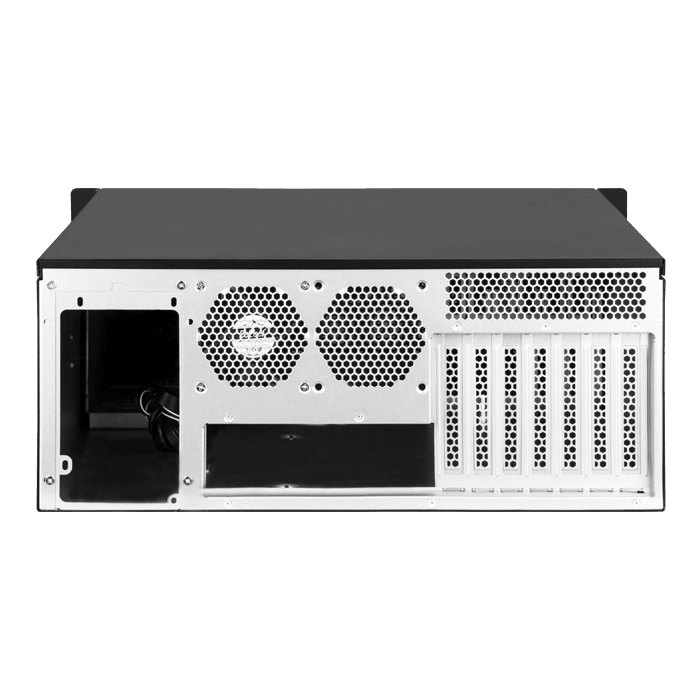

| Expansion Slot | 7 | ||

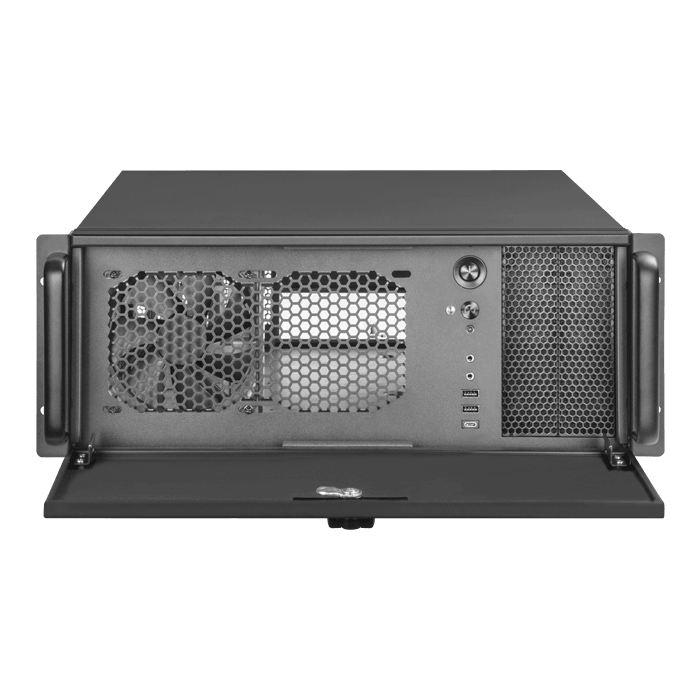

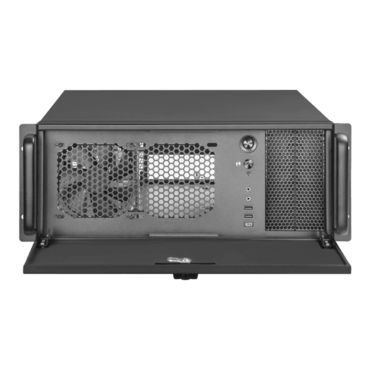

| Front I/O Port | USB Type-C x 1, USB 3.0 x 2, Audio x 1, MIC x 1 | ||
| Power status x 1, HDD activity x 1 | |||
| Dimension |
430mm (W) x 176mm (H) x 468mm (D) 16.93" (W) x 6.93" (H) x 18.43" (D) |
||
| Side switch for chassis intrusion security | |||

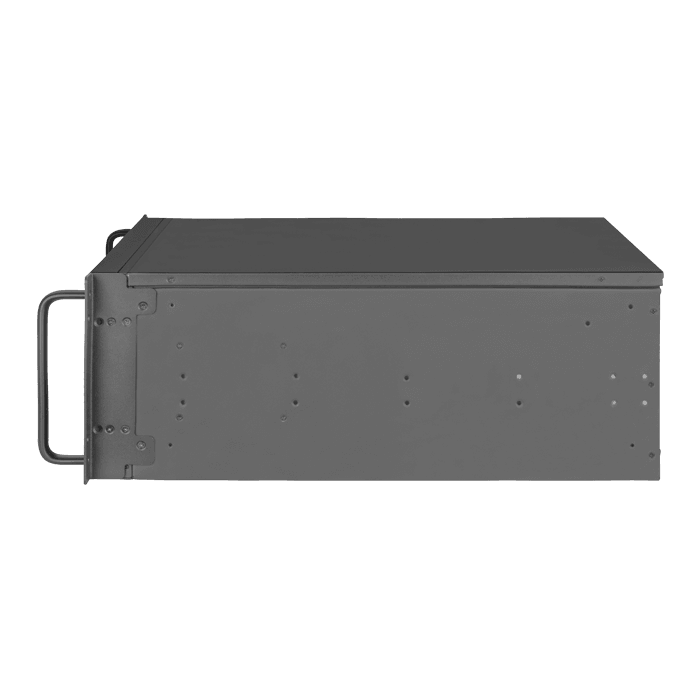

| *RM42-502 has 2 rows of sliding rail mounting holes, if you wish to position the chassis in a positive U position, please install the rails on the lower row of the mounting holes | |||
