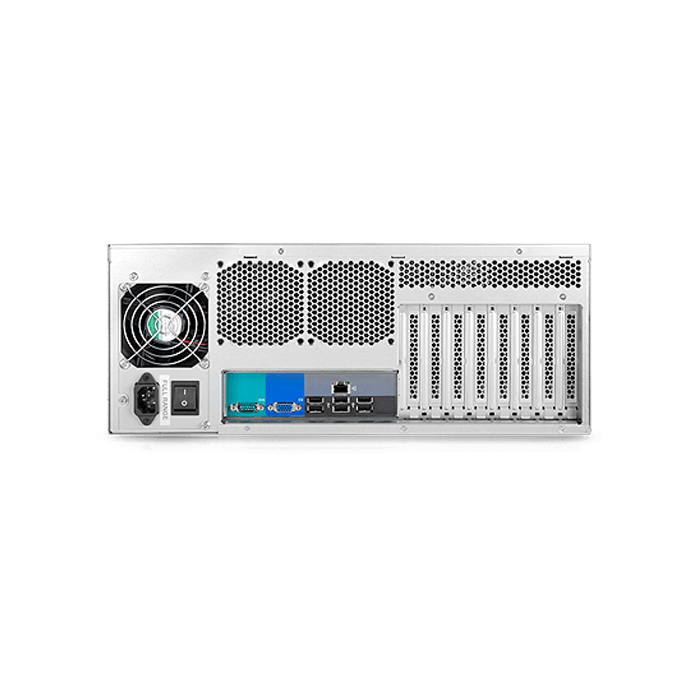

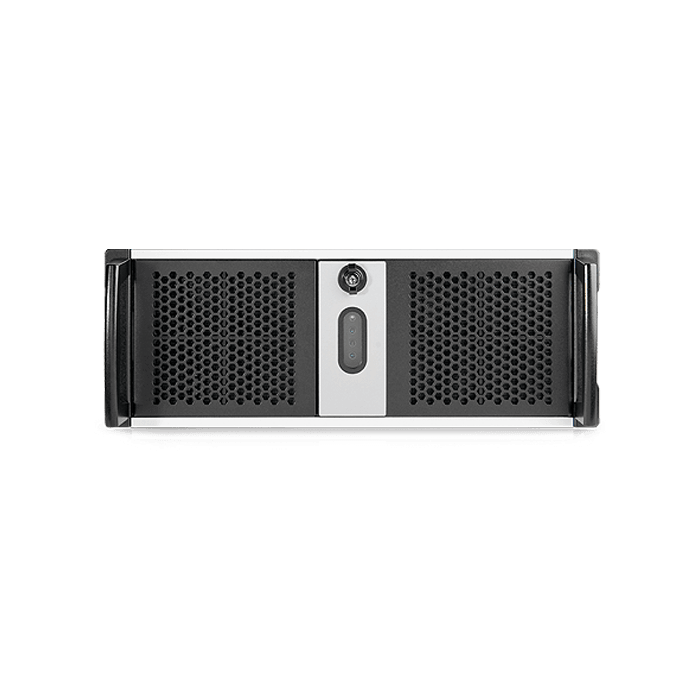

RM42300-F1, 3x 5.25" and 5x 3.5" Drive Bays, No PSU, ATX, Black/Silver, 4U Chassis
RM42300-F1 chassis is built for industrial automation servers and designed for rack applications 17.5” depth. The RM42300-F1 supports motherboards up to SSI CEB form factor.
- Supports ATX M/B up to 12” x 10.5”
- Available for rackmount and stand-alone installation
- Dedicated 80 mm fan for HDD cooling
- Truly isolated anti-vibration design on internal HDD and drive cages
- Card retainer to hold low profile and full height add-on cards
Form Factor | 4U |
M/B Form Factor | ATX (12” x 9.6”) |
Dimensions (Dx Wx H) | 445 x 430 x 176 (mm), 17.5” x 16.9” x 6.9” |
Drive Bays | External 3.5":1
External 5.25":3 Internal 3.5":4 Slim ODD:1 |
PSU Form Factor | PS/2 Single or Mini-redundant |
Indicators | 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity |
Front Buttons | Power On/Off, System Reset, 2 x USB 2.0/USB 3.0(option) |
System Security | Intrusion Switch, Key lock on front door |
Cooling Fans | Front: 1 x 120mm (T=25mm), PWM, Rear: 2 x 80mm (T=25mm)(Option) |
Expansion Slots | 7 |
HDD Backplane | N/A |
Metal Thickness | 1.2mm |
Net Weight | 9.5kg |
Gross Weight | 12.3kg |
Front Bezel | Option |
Cubic Feet | 3.44 |
Container Loading (Single Packing) | 20’: 288, 40’: 598, 40’H: 678 |
