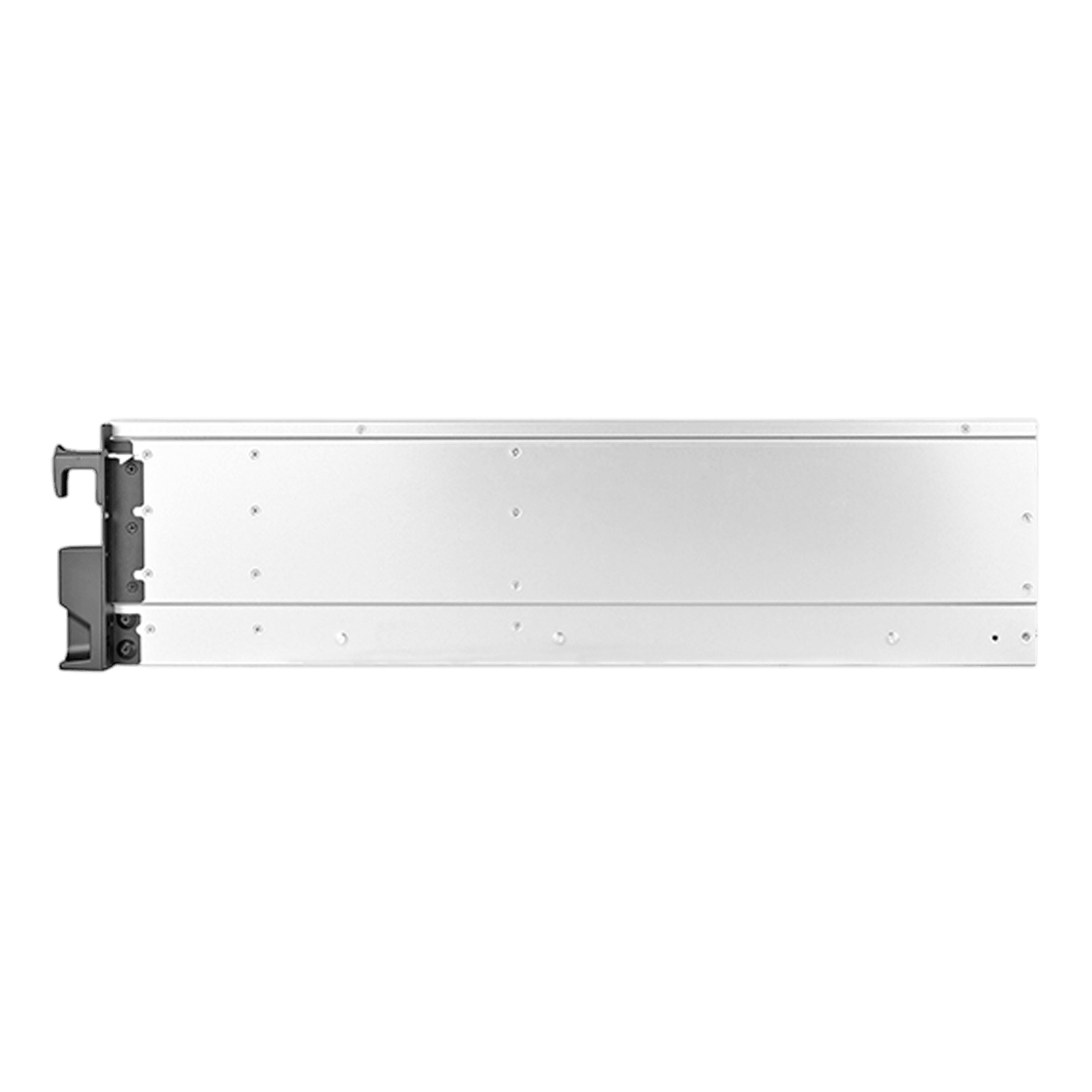

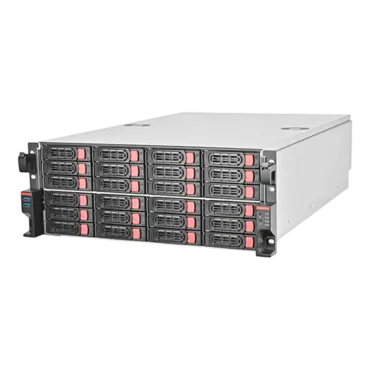

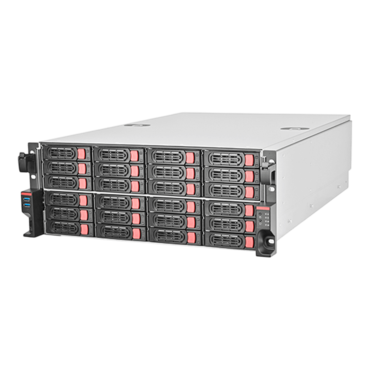

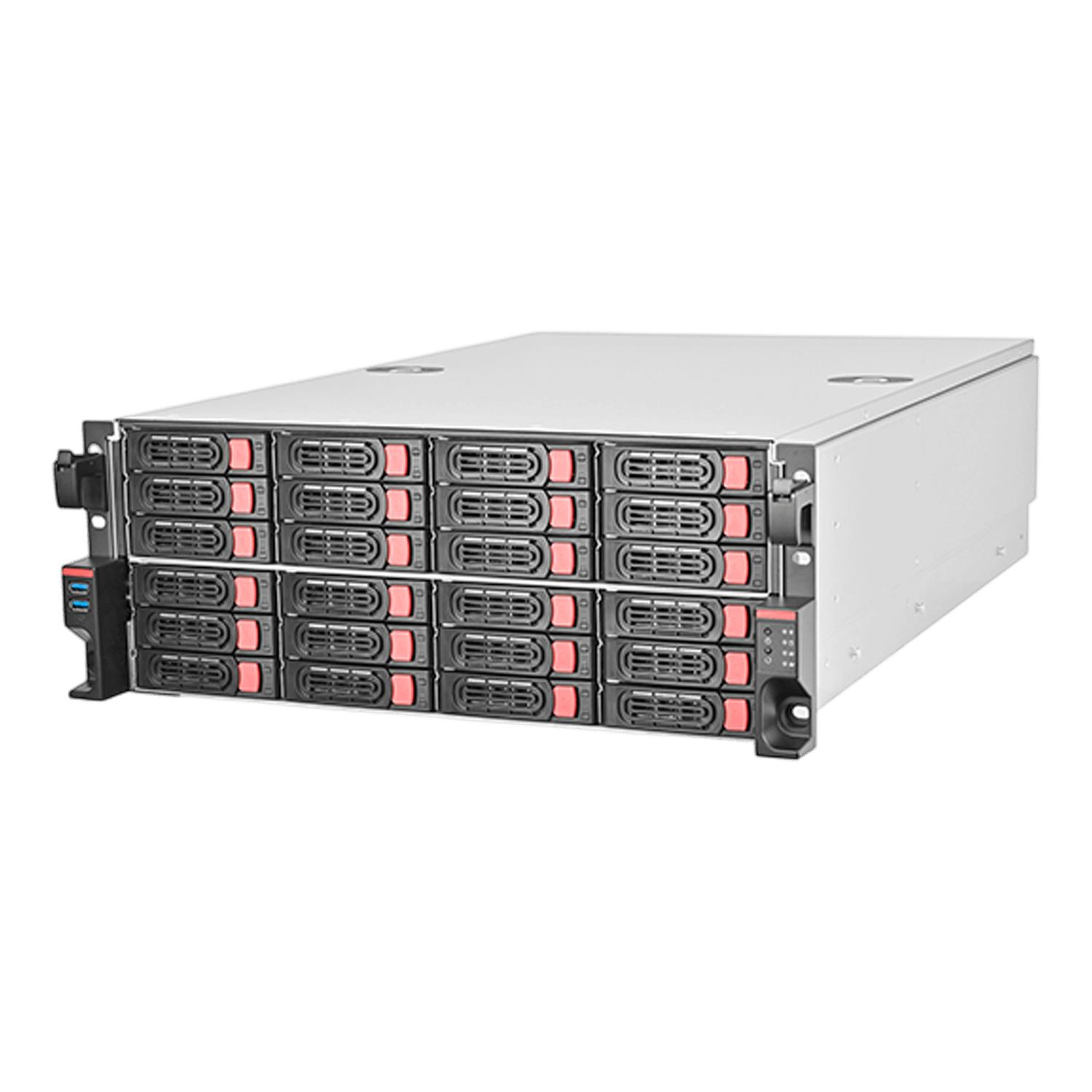

RM43-324-RS 4U Rackmount Chassis, 24x 3.5"/2.5", Black
RM43-324-RS 4U Rackmount Chassis, 24x 3.5"/2.5", Black
RM43-324-RS 4U Rackmount Chassis, 24x 3.5"/2.5", Black
RM43-324-RS 4U Rackmount Chassis, 24x 3.5"/2.5", Black

RM43-324-RS 4U Rackmount Chassis, 24x 3.5"/2.5", Black

  • SKU: 19059287
  • Manufacturer: SILVERSTONE
  • MPN: RM43-324-RS
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$1,007.39
Quantity:
  • Backplane support for 24 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO
  • Supports twenty-four 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays
  • Ball bearing sliding rail included for simple server rack integration
  • Includes three 120mm x 38mm hot-swappable PWM fans
  • Auto lock handle for convenient fixation of chassis into rack cabinet
  • Supports ATX (PS2) / mini-redundant PSU/2U redundant[1]
  • Supports E-ATX or SSI-EEB motherboards
  • Supports 7 standard PCI / PCIe slots
  • Independent drive status LED
Model No. SST-RM43-324-RS
Chassis form factor 4U
Motherboard SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Main metal thickness 1.0mm ~ 1.2mm
HDD backplane backplane: 24 ports SAS / SATA to Mini-SAS HD SFF-8643 x 6 with SGPIO
power connector: 4-Pin peripheral x 12
interface: SAS III / II / I, SATA III / II / I

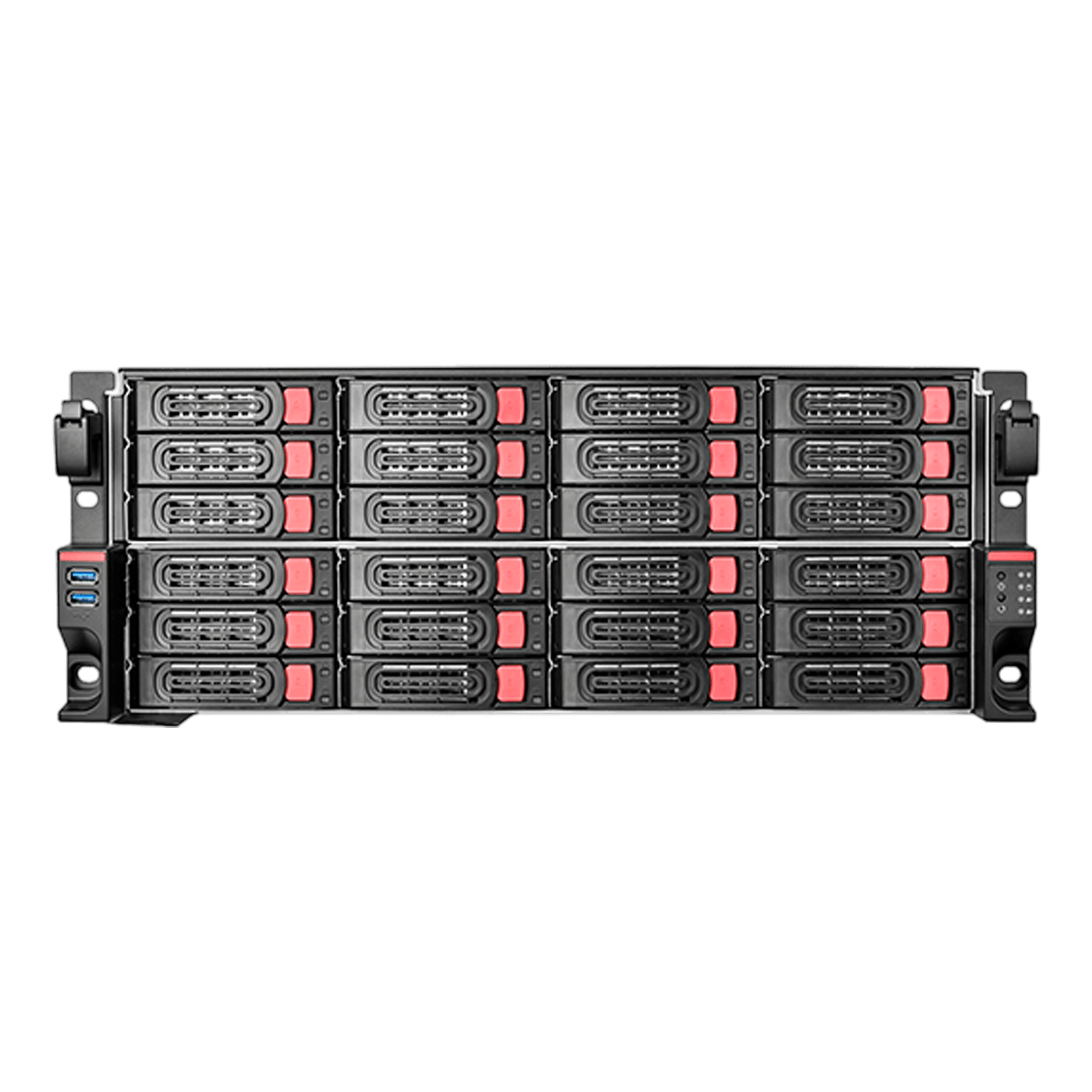

Drive Support External: 3.5" hot-swap x 24
Cooling system Rear: 80mm x 2 fan slots
Internal: Hot-swap 120 x 38mm PWM ball bearing fan x 3
Limitation of CPU cooler 148mm
Expansion Slot 7
Limitation of expansion card Length 345mm
Width 154mm
Power Supply ATX (PS2) / Mini Redundant / 2U Redundant [1]
Max. supported weight 16,8 kg
Front I/O Port USB 3.1 Gen 1 Type-A x 2 [2]
Front buttons Power On / Off, system reset
LED Indicators Chassis: Power LED x 1: Blue
HDD Access x 1: Green
LAN LED x 2: Green
HDD Tray: HDD Power LED x 24: Yellow
HDD Access x 24: Blinking green
Dimension 442mm (W) x 175mm (H) x 660mm (D), 51.1 liters
17.4” (W) x 6.9” (H) x 26” (D), 51.1 liters

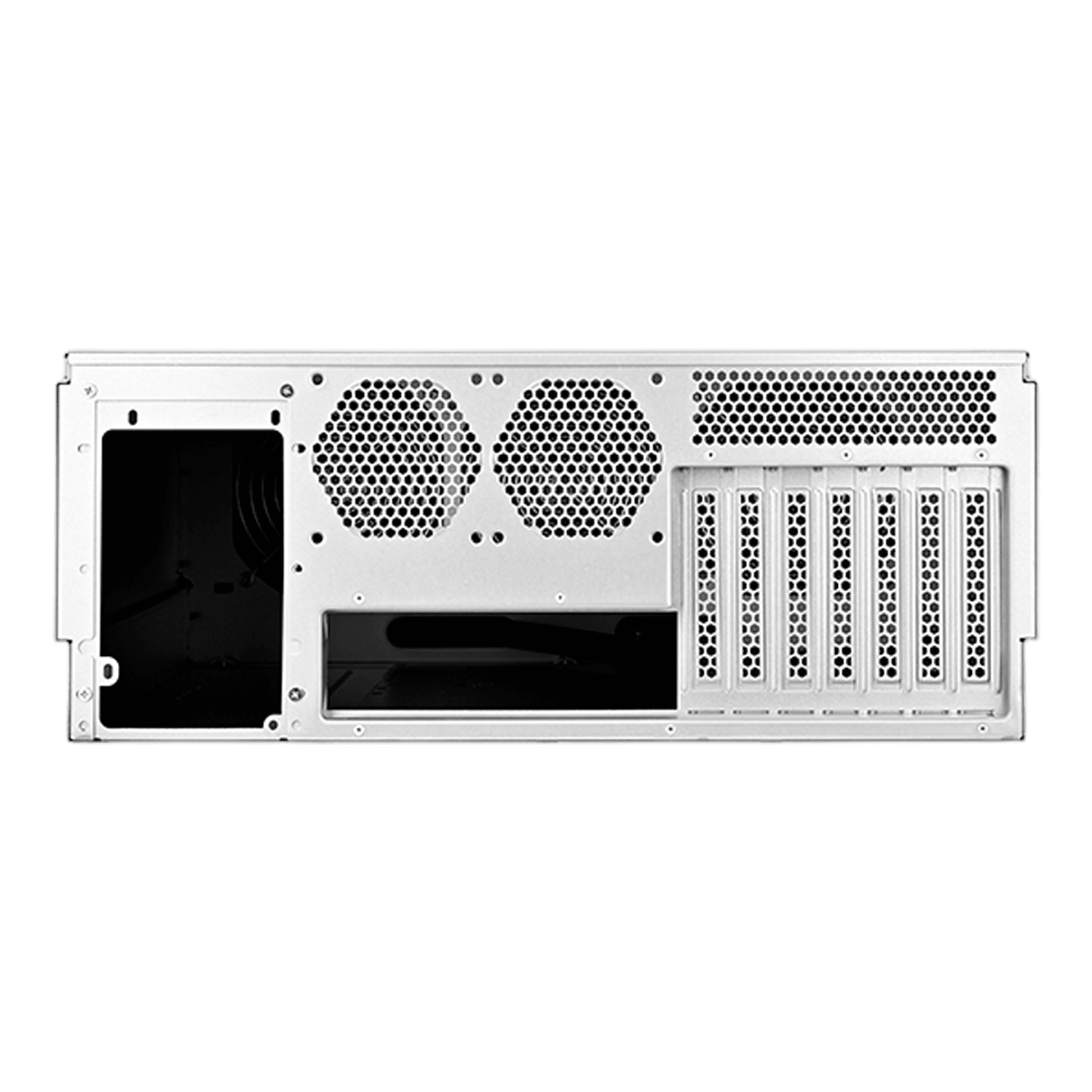

Extra [1] Please ensure the mounting holes of your Mini Redundant PSU matches the mounting holes on the rear panel of RM43-324-RS (See below diagram)
[2] RM43-324-RS’s USB internal cable is 800mm long, so if you are connecting an external enclosure to the USB3.1 port, we recommend using it with shorter cables to prevent performance loss.
