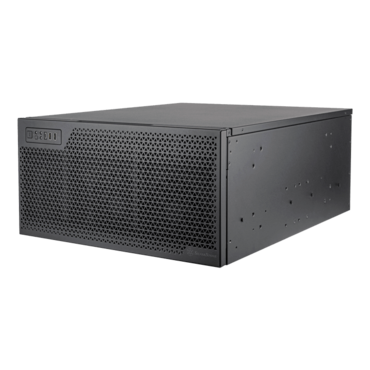

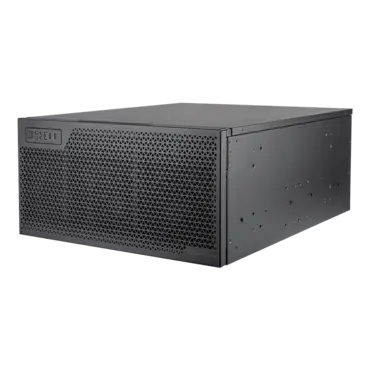

RM52, 2x 3.5" or 3x 2.5" Internal Bays + 4x 2.5" Internal Bays, No PSU, SSI-EEB, Black, 5U Chassis
- SKU: 17101071
- Manufacturer: SILVERSTONE
- MPN: RM52
- Availability: CONTACT US
Price
$553.14
| Model No. | SST-RM52 | |
| Chassis form factor | 5U | |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX | |
| Material | Steel | |
| Drive Bay | Internal |
3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU) |
| Power Supply |
Primary PSU slot: PS2 (ATX) / Mini Redundant Secondary PSU slot: SFX (occupies 3.5" bracket) |
|
| Limitation of PSU |
160mm~190mm (Removal of 3.5" drive cage eliminates PSU depth limitation) |
|
| Cooling system | Front |
120mm x 6 |
| Rear |
Rear I/O: |
|
| Radiator support | Front |
120mm x 4 / 360mm x 2 |
| Rear |
120mm x 1 |
|
| Limitation of CPU cooler |
Height w/ expansion card retainer: 181mm Height w/o expansion card retainer: 192mm |
|
| Expansion card |
Length: 512mm (without installing front fans, radiators, and internal radiator bracket removed) / 365mm (dual radiators installed with each radiator with fans having a combined thickness of 53mm) * Width w/ expansion card retainer: 160mm Width w/o expansion card retainer: 198mm |
|
| Expansion Slot | 8 | |
| Front I/O Port |
USB Type-C x 1 USB 3.0 x 2 |
|
| LED indicator |
Power status x 1 HDD activity x 1 LAN activity x 2 |
|
| Dimension |
Incl. rear fan cage: 440mm (W) x 220mm (H) x 605mm (D), 58.56 liters Excl. rear fan cage: 440mm (W) x 220mm (H) x 560mm (D), 54.21 liters Incl. rear fan cage: 17.3" (W), 8.66" (H), 23.82" (D) Excl. rear fan cage: 17.3" (W), 8.66" (H), 22.05" (D) |
|
| Net Weight | 11.45 kg | |
| Extra | Side switch for chassis intrusion security | |
| * When installing dual 360mm radiators, please refer to the product manual for the graphics card length limitation | ||
