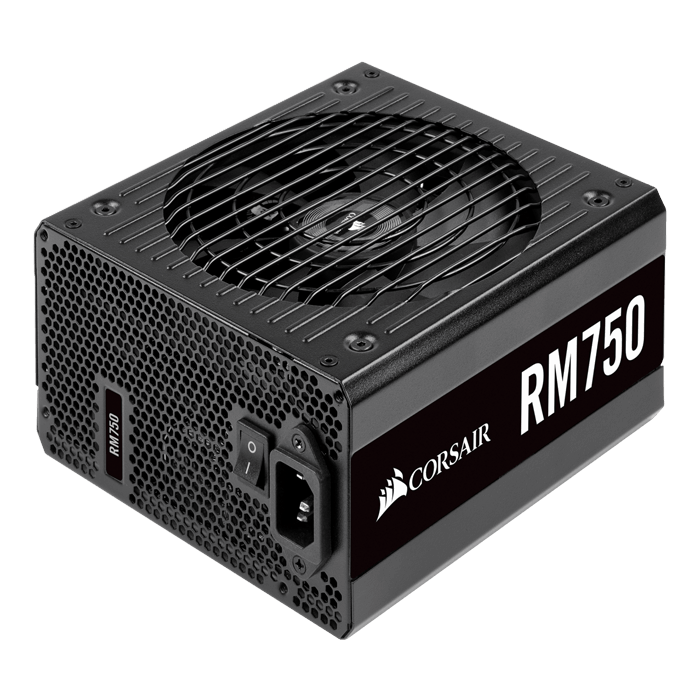

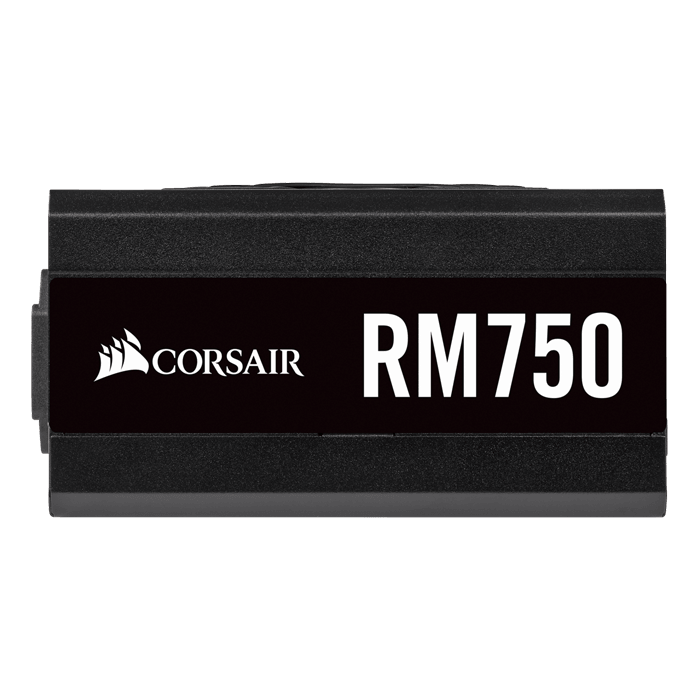

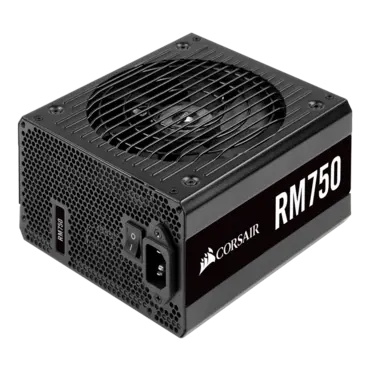

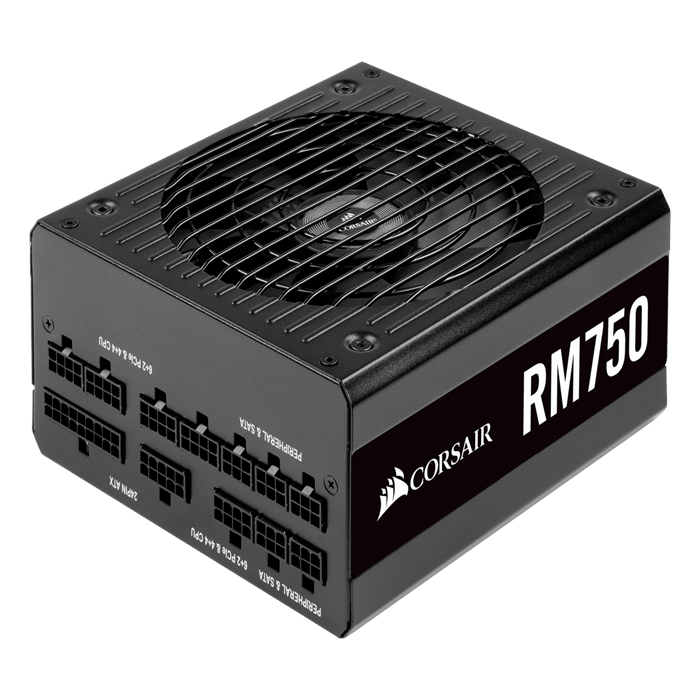

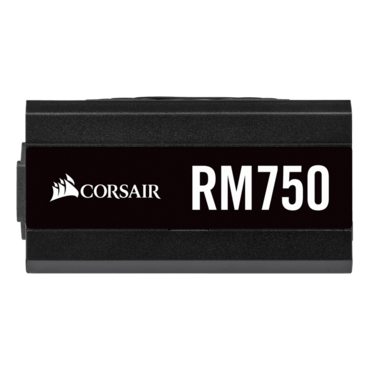

RM750, 80 PLUS Gold 750W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 12799103
- Manufacturer: CORSAIR
- MPN: CP-9020195-NA
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$148.05

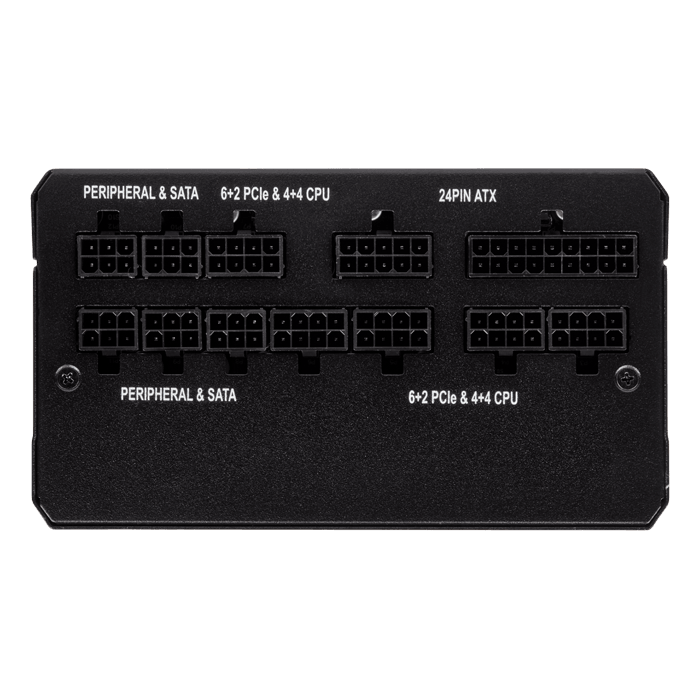

| ATX Connector | 1 |
| Adjustable Single/Multi 12V Rail | No |
| ATX12V Version | v2.52 |
| Continuous output rated temperature C | 50°C |
| Continuous power W | 750 Watts |
| Fan bearing technology | Rifle Bearing |
| Fan size mm | 135mm |
| MTBF hours | 100,000 hours |
| Multi-GPU ready | Yes |
| Warranty | Ten Years |
| 80 PLUS Efficiency | Gold |
| PSU Form Factor | ATX |
| iCUE Compatibility | No |
| Zero RPM Mode | Yes |
| Cable Type | Low-Profile, All Black |
| Dimensions | 150mm x 86mm x 160mm |
| EPS Connector | 2 |
| EPS12V Version | v2.92 |
| Floppy Connector | 0 |

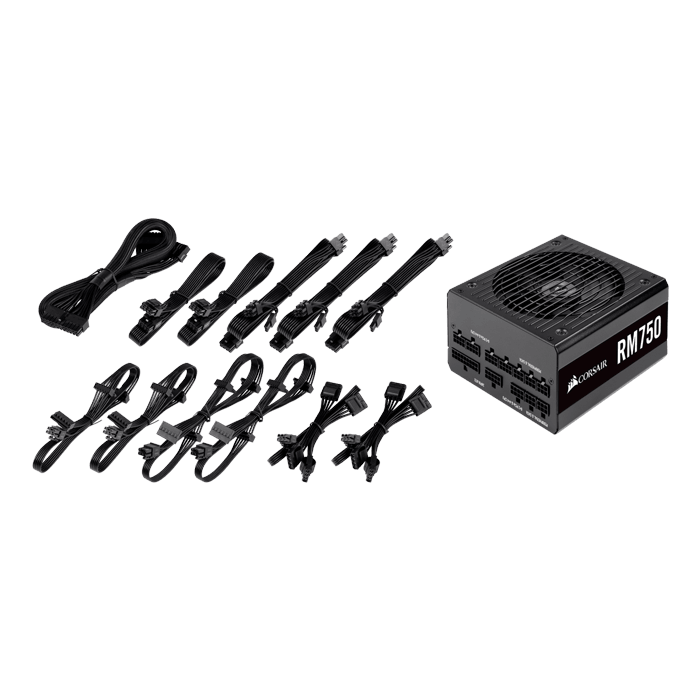

| Modular | Fully |
| PCI-E Connector | 6 |
| SATA Connector | 10 |
| PATA Connector | 4 |
| Modern Standby Compatible | Yes |
| Protection Circuits | OVP (Over Voltage)
UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power) |
| AC Input Rating | ||

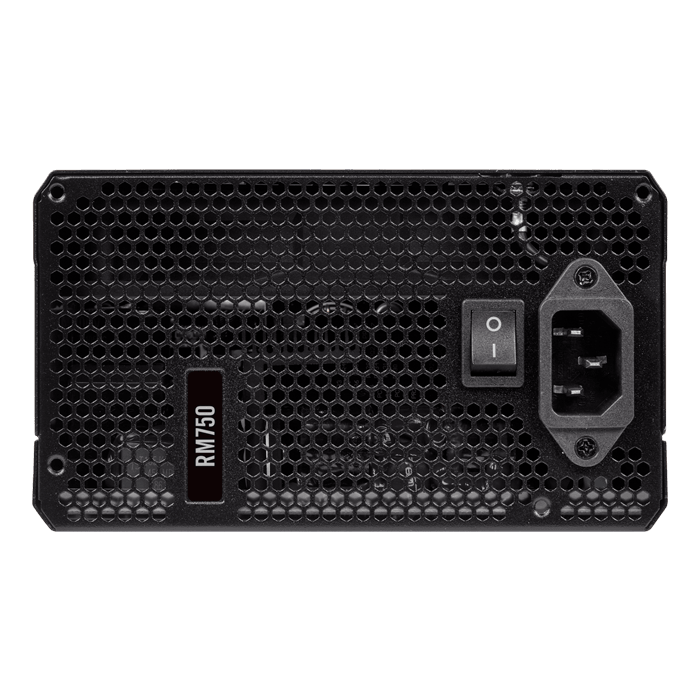

| AC INPUT | 100-240V | |
|---|---|---|
| INPUT CURRENT | 10A-5A | |
| FREQUENCY | 47~63Hz | |
| Max Load | Max Output | |
| +3.3V | 20A | 150W |
| +5V | 20A | |
| +12V | 62.5 | 750W |
| -12V | 0.3A | 3.6W |
| +5VSB | 3A | 15W |
| TOTAL POWER | 750W | |
