ROG CROSSHAIR VIII EXTREME, AMD X570 Chipset, AM4, DP, 2x Thunderbolt™ 4, E-ATX Motherboard

Quantity:
  • SKU: 14598673
  • Manufacturer: ASUS
  • MPN: ROG CROSSHAIR VIII EXTREME
  • Availability: LOW STOCK
Starting At
$926.88
Quantity:

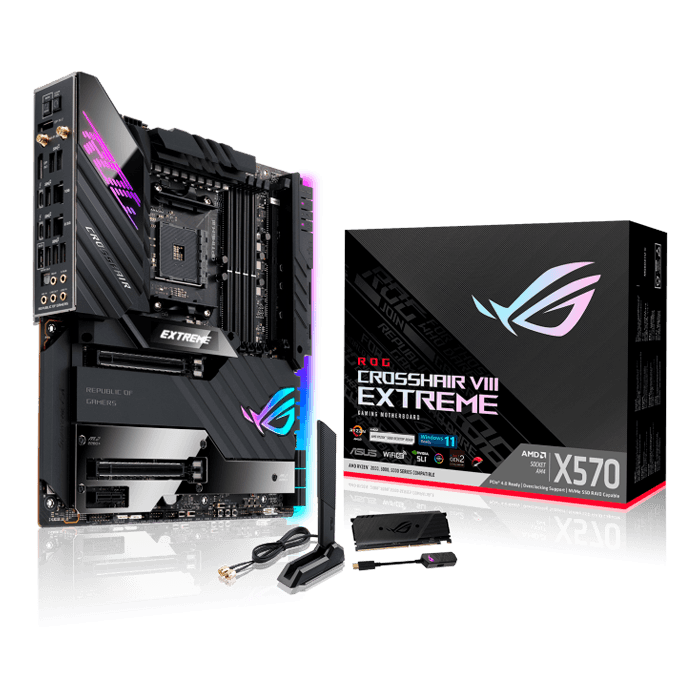

ROG CROSSHAIR VIII EXTREME, AMD X570 Chipset, AM4, DP, 2x Thunderbolt™ 4, E-ATX Motherboard

ASUS ROG CROSSHAIR VIII EXTREME. ROG Crosshair VIII Extreme. The ROG Crosshair VIII Extreme motherboard is primed and ready to get the most out of the latest AMD Ryzen™ 5000 processors?. It features the latest hardware and software, including a new passive cooling design that pairs exceptional thermal performance with improved durability. Your overclocking experience gets a little easier, too, with the Dynamic OC Switcher that automatically switches between AMD’s Precision Boost Overdrive and manual overclocking.

  • AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
  • Comprehensive thermal design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, five M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone.
  • Robust power delivery: 18+2 power stages rated for 90 A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
  • High-performance connectivity: USB 3.2 Gen 2x2 front-panel with PD3.0 60W fast charging, onboard WiFi 6E, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, and ASUS LANGuard.
  • Industry-leading gaming audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC and the bundled ROG Clavis USB digital-to-analog converter for high-fidelity sound.
  • Unmatched personalization: 2" LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
  • DIY-friendly design: Bundled ROG Fan Controller, pre-mounted I/O shield, V_Latch switch, BIOS?FlashBack™, M.2 Q-Latch, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder
  • Renowned software: Bundled 1-year AIDA64 Extreme subscription
CPU AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset AMD X570 Chipset
Memory AMD Ryzen™ 5000 and 3000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
AMD Ryzen™ 5000 G-Series and 4000 G-Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory AMD Ryzen™ 2000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory Dual Channel Memory Architecture
OptiMem III
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs
Expansion Slots AMD Ryzen™ 5000 and 3000 Series Desktop Processors
2 x PCIe 4.0 x16 SafeSlots (support x16, x8/x8)
AMD Ryzen™ 5000 G-Series, 4000 G-Series and 2000 series Desktop Processors
2 x PCIe 3.0 x16 SafeSlots (support x16, x8/x8)
AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors
1 x PCIe 3.0 x16 SafeSlot (supports x8)
AMD X570 chipset
1 x PCIe 3.0 x1
Multi-GPU Support NVIDIA 2-Way SLI® Technology*
* Support varies with different graphics cards
Storage Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 & SATA modes)
M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 5000 G-Series. 4000 G-Series, 2000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 & SATA modes)
M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 mode)
AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 & SATA modes)
AMD X570 chipset
DIMM.2_1/2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
Ethernet 1 x Intel® I225-V 2.5Gb Ethernet
1 x Marvell® AQtion AQC113CS 10Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB Total 10 ports
AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series and 3000 Series Desktop Processors
4 x USB 3.2 Gen 2 ports (4 x Type-A)
AMD Ryzen™ 3000 G-Series, 2000 Series and 2000 G-Series Desktop Processors
4 x USB 3.2 Gen 1 ports (4 x Type-A)
AMD X570 chipset
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
4 x USB 3.2 Gen 2 ports (4 x Type-A) Total 10 ports
1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C®, PD 3.0 up to DC 5V/3A 60W fast charging technology)*
1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C®)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
*Please connect the 6-pin PCIe Graphics Card/ PD 3.0 connector to get the full power delivery up to 20V/3A
Audio "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- ESS® SABRE9018Q2C DAC/AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Audio cover"
Back Panel I/O Ports 2 x Thunderbolt™ 4 USB Type-C® port(s)
2 x DisplayPort IN ports for Thunderbolt™ 4
8 x USB 3.2 Gen 2 port(s) (8 x Type-A)
1 x ASUS Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
1 x Marvell® AQtion AQC113CS 10Gb Ethernet port
5 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Intrernal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
2 x 4-pin Chassis Fan header(s)
2 x 4-pin Radiator Fan header(s)
2 x W_PUMP+ header(s)
1 x WB_SENSOR header(s)
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card/ PD 3.0 connector
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®, PD 3.0 up tp DC 5V/3A 60W fast charging technology)
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
6 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
2 x RSVD header
1 x V_Latch
1 x Safe Boot button
1 x Slow Mode switch
1 x Speaker header
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features Extreme OC Kit
- FlexKey button
- LN2 Mode
- Probelt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- ROG AURA sync backplate
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
Dual BIOS
OLED 2"
ASUS HYDRANODE
- 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)
- 2 x USB 2.0 port support* (USB_EP1, USB_EP3)
* Visit ASUS Website for the latest compatibility list.
Software Features ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
- OLED Display
AI Suite 3
- 5-Way Optimization by Dual Intelligent Processors 5
 TPU
 EPU
 DIGI+ Power Control
 Fan Xpert 4
 Turbo app
DAEMON Tools
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
1 x 1-to-3 ARGB splitter cable
2 x 1-to-4 fan splitter cable
1 x RGB extension cable
3 x ROG weave SATA 6G cables
1 x 3-in-1 Thermistor cables pack
ROG Fan Controller
1 x ROG Fan Controller
1 x Fan EXT PWR cable
1 x ARGB input cable
1 x USB input cable
1 x ROG Fan Controller 3M Mounting tape
1 x Fan Controller manual
ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2
ROG CLAVIS DAC
1 x ROG CLAVIS DAC
1 x CLAVIS DAC manual
Miscellaneous
1 x ASUS Wi-Fi moving antennas
2 x M.2 SSD screw package(s)
1 x Q-connector
1 x ROG key chain
1 x ROG Graphics card holder
1 x ROG logo plate stickers
1 x ROG screwdriver
1 x ROG stickers
1 x ROG thank you card
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User manual
Operating System Windows® 11 ready
Windows® 10 64bit
Form Factor Extended ATX
30.5cm x 27.7cm
