ROG RAPTURE GT-AX6000 EVA EDITION, IEEE 802.11ax, Dual-Band 2.4 / 5Ghz, 1148 / 4804 Mbps, 1x USB 2.0 / 3.2, 5x RJ45, Retail Wireless Router
Quantity:
- SKU: 15064403
- Manufacturer: ASUS
- MPN: ROG RAPTURE GT-AX6000 EVA ED
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$339.81
ROG RAPTURE GT-AX6000 EVA EDITION, IEEE 802.11ax, Dual-Band 2.4 / 5Ghz, 1148 / 4804 Mbps, 1x USB 2.0 / 3.2, 5x RJ45, Retail Wireless Router

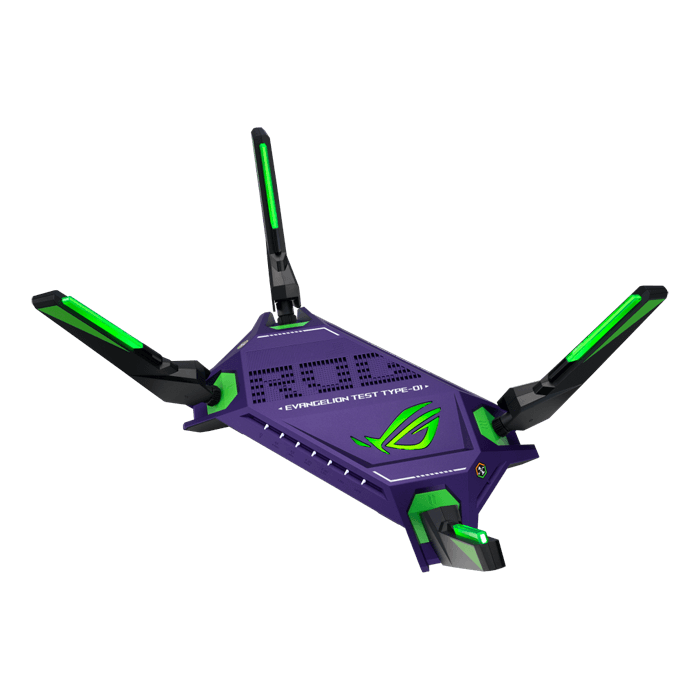

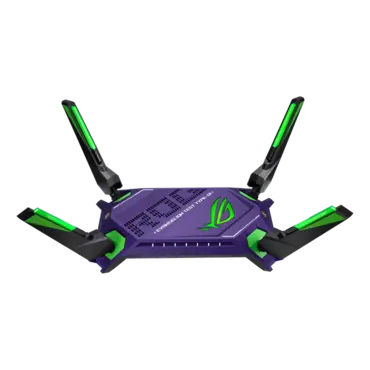

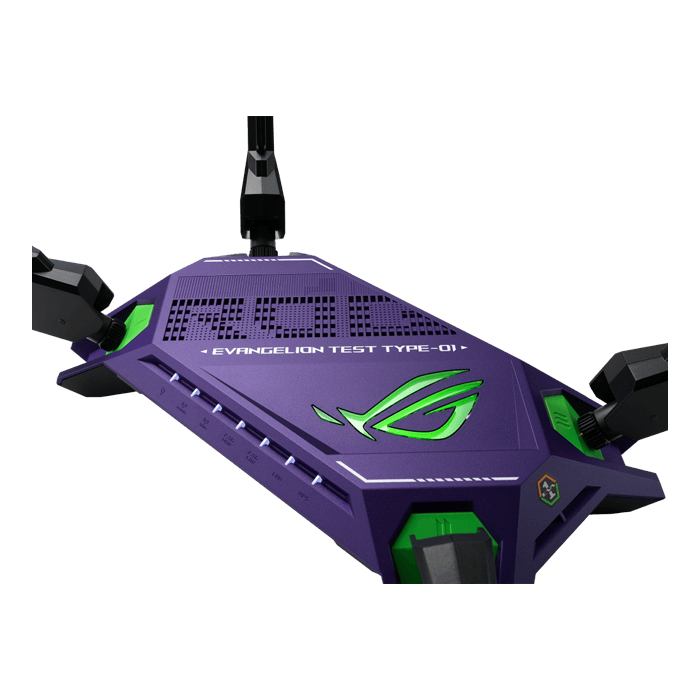

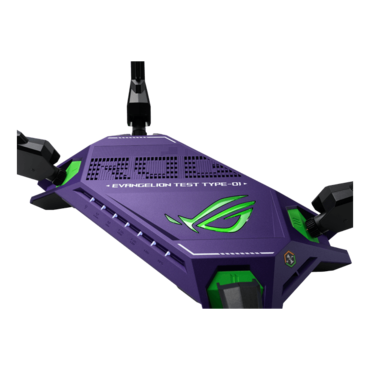

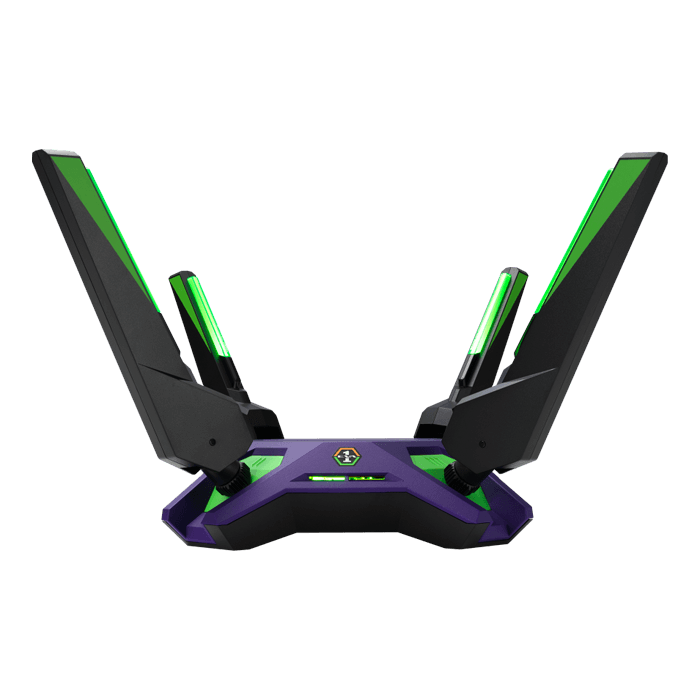

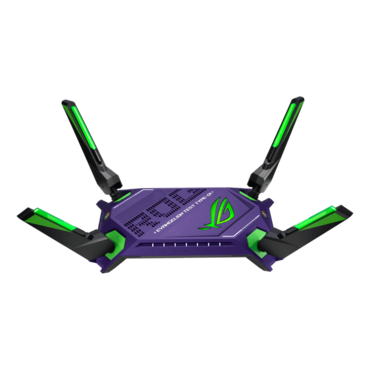

ASUS ROG Rapture GT-AX6000 EVA EDITION. It’s 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Rapture GT-AX6000 EVA Edition features cutting-edge wireless technology, antennas styled like the EVA-01's shoulder plates, and a control app with a UI design fashioned after a visible A.T. Field.
| Model Name | GT-AX6000 EVA Edition |
| AX technology | Yes |
| Data Rate |
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps 5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps |
| Antenna | External antenna x 4 |
| Processor | 2.0 GHz quad-core processor |
| Memory | 256 MB Flash, 1 GB RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth, |
| Operating Frequency | 2.4G Hz / 5 GHz |

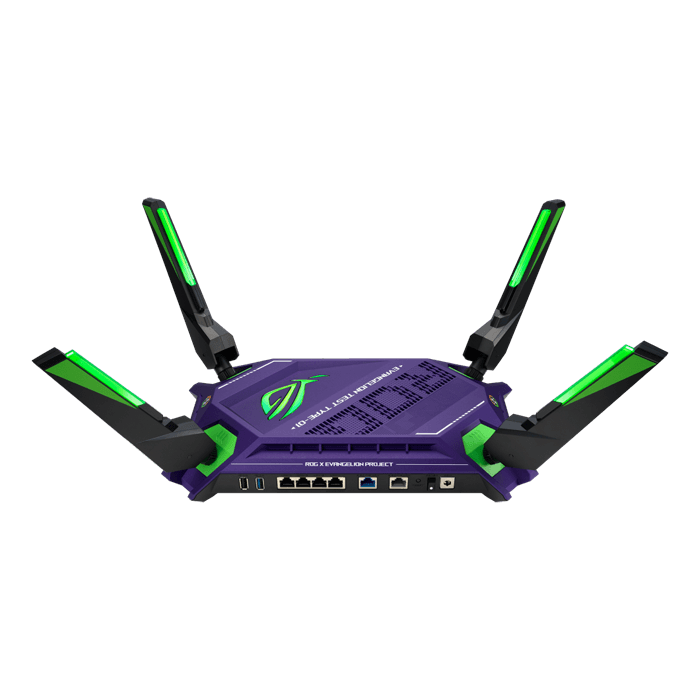

| Ports | RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1, RJ45 for 2.5 Gigabits BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB 2.0 x 1 |
| Button | WPS Button, Reset Button, Power Button, LED Control Button |
| LED Indicator | Power x 1 2.4GHz x 1 5GHz x 1 2.5G WAN x 1 2.5G LAN x 1 LAN x 1 WPS x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current |
| Package content | GT-AX6000 WiFi 6 Dual-Band Gaming Router RJ-45 cable Power Adapter Quick Start Guide Warranty Card |
| Product Weight (g) | 1121.4 g |
| AiMesh |
AiMesh Primary AiMesh router AiMesh node |
| Router APP | ASUS Router APP |
| Game |
Game Boost/acceleration ROG_First OpenNAT (Game Profile) Gaming port |
| AiProtection |
AiProtection Pro Router Security Assessment Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking |
| Parental Control |
Parental Control Parental Control Customized Internet schedule |
| Traffic Control |
Adaptive QoS Bandwidth Monitor Bandwidth limiter Maximum Bandwidth limiter rule : 32 Traditional QoS Maximum Traditional QoS rule : 32 Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic analysis period : Daily, Weekly, Monthly Website history |
| Wireless |
IPv6 MU-MIMO WiFi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise UTF-8 SSID Guest Network Maximum Guest Network rule : 2.4GHz x3, 5GHz x3 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal WPS Wi-Fi MAC address filter Maximum MAC filters : 64 Wireless scheduler Airtime fairness RADIUS Server Universal beamforming |
| WAN |
Explicit beamforming Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN WAN Aggregation 3G/4G LTE dongle Android tethering Port forwarding Maximum port forwarding rule : 64 Port triggering Maximum port triggering rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
| LAN |
DHCP Server IGMP snooping IPTV LAN Link Aggregation Manually assign IP address Maximum manually assign IP address rule : 64 |
| VPN |
VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Fusion |
| USB application |
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 HDD hibernation Safely Remove disk AiCloud Download master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder privileges |
| Administration |
Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router Operating system : ASUSWRT Free OS upgrade Firewall Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 Wake on LAN (WOL) SSH Configuration backup and restore Diagnosis tools Feedback system System log |
