ROG STRIX 1000W Gold Aura Edition, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply

  • SKU: 16322111
  • Manufacturer: ASUS
Starting At
ROG STRIX 1000W Gold Aura Edition, 80 PLUS Gold 1000W, Fully Modular, ATX Power Supply

ASUS ROG STRIX 1000W Gold Aura Edition (90YE00P1-B0NA00). The ROG Strix 1000W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.

  • The aluminum case serves as an internal heatsink for the power transformer, ensuring low temperatures and noise levels.
  • ROG heatsinks cover important components for lower temperatures and less noise.
  • The Axial-Tech fan design has a smaller hub that allows for longer blades and a locking ring that keeps air pressure down increased.
  • Fans with double ball bearings can last up to twice as long as plain bearing designs.
  • With 0dB technology you can enjoy light gaming in relative silence.
  • ATX 3.0 Compatible: ROG Strix Aura Edition is ATX 3.0 compliant and comes with a 16-pin PCIe cable, that can route up to 600W of power to PCIe Gen 5.0 graphics cards.
  • An 80 Plus Gold certification is the result of Japanese capacitors and other high-quality components. li>
  • With Aura Sync compatibility, you can customize lighting effects and sync them with other compatible hardware.
Intel Form Factor ATX12V
ATX 3.0 Yes
Dimensions 180 x 150 x 86 mm
Efficiency 80Plus Gold
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS
AC Input Range 100-240Vac
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Maximum Load 22A 22A 83.3A 0.3A 3A
Combined Load 120W 120W 996.6W 3.6W 15W
Total Output 1000W

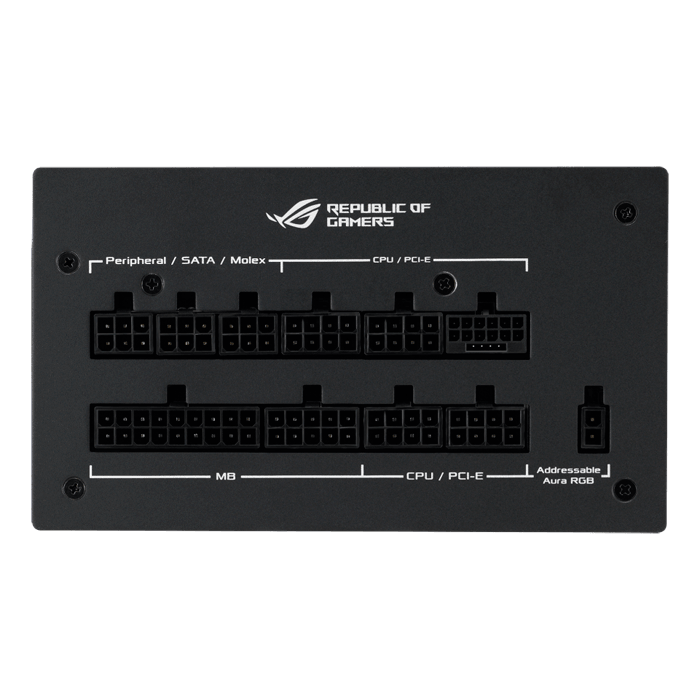

Cable Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4
Package Contents Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (700mm) PCI-E 1-to-1 Cable x 2 (700mm) PCI-E 1-to-2 Cable x 1 (700mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) Addressable RGB Cable x 1 (800mm) User Manual x 1
Weight 3.03 kg (single PSU)
0dB Fan Button Yes
Cybenetics Noise Level Certification A+
