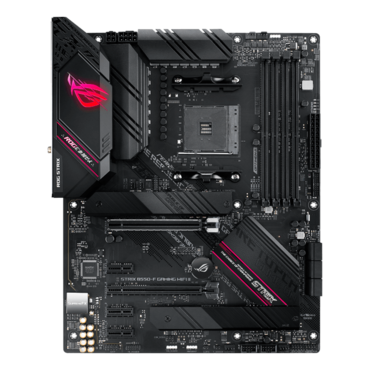

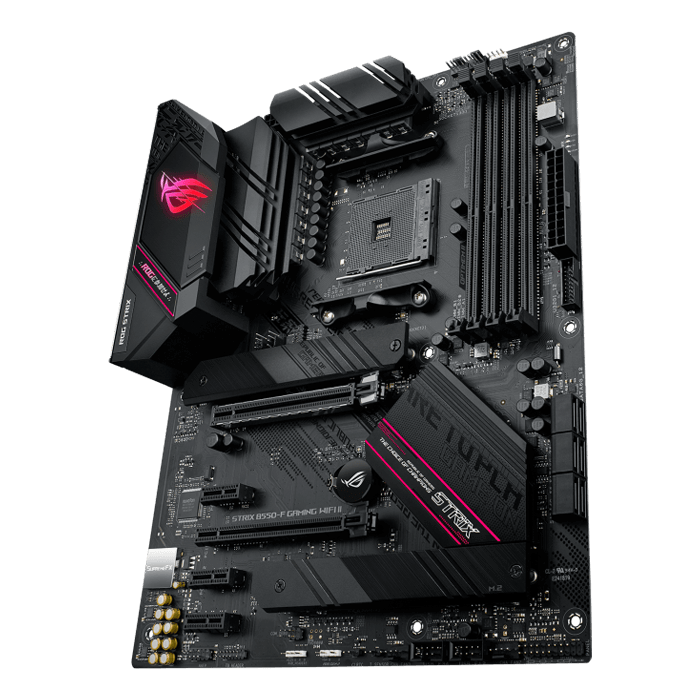

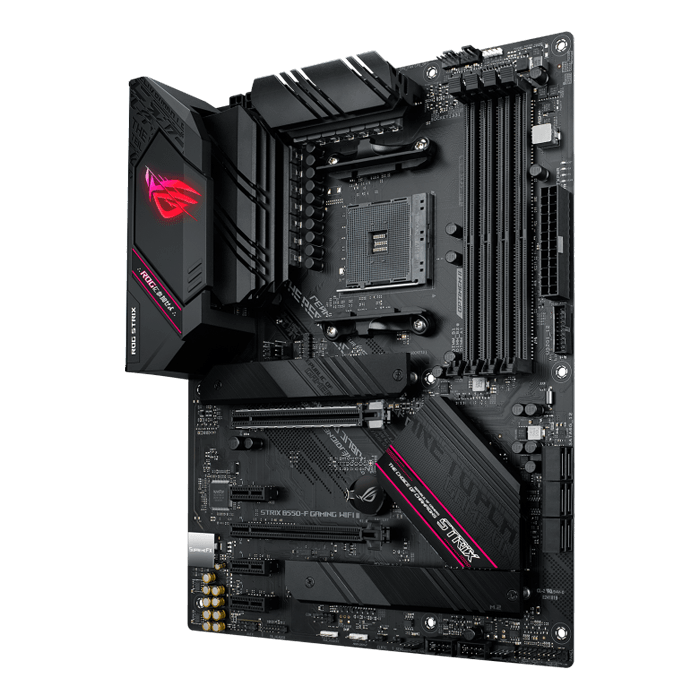

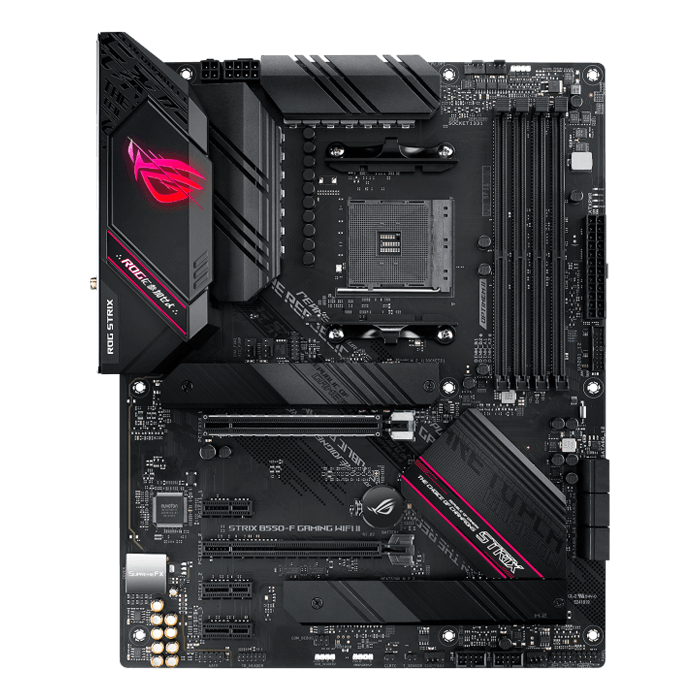

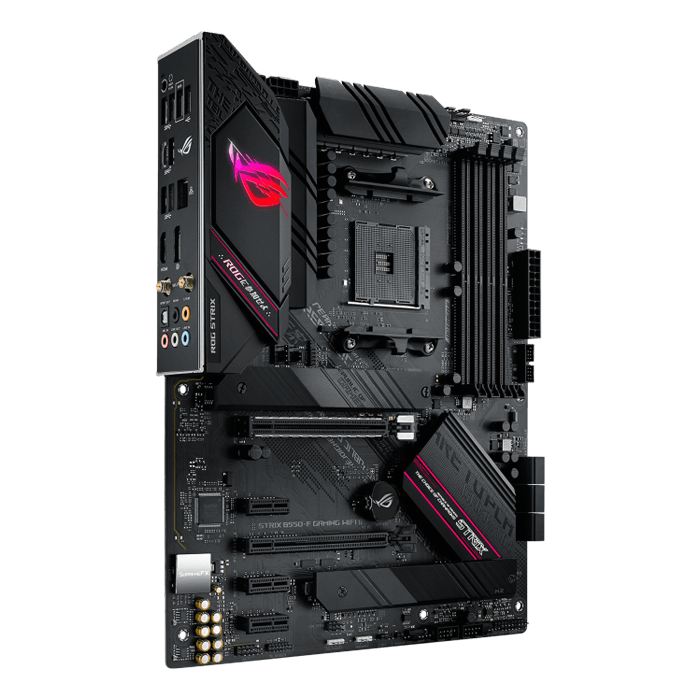

ROG Strix B550-F Gaming WIFI II, AMD B550 Chipset, AM4, DP, ATX Motherboard

Quantity:
  • SKU: 14636789
  • Manufacturer: ASUS
  • MPN: ROG STRIX B550-F GAMING WIFI II
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$214.62
Quantity:
ROG Strix B550-F Gaming WIFI II, AMD B550 Chipset, AM4, DP, ATX Motherboard

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming WiFi II gives you a head start on your dream build.

  • AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
  • Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
  • Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
  • Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
  • Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
CPU AMD AM4 Socket for AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors*
Chipset AMD B550 Chipset
Memory AMD Ryzen™ 5000 and 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4
4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/
4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/
3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory *
AMD Ryzen™ 5000 and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4
5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/
4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/
3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory *
* ECC memory (ECC mode) support varies by CPU.
Graphics 1 x DisplayPort 1.2* 1 x HDMI® 2.1
* Graphics specifications may vary between CPU types.
Expansion Slots AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)* 3 x PCIe 3.0 x1 slots
* Share bandwidth with PCIE3.0 x1_1, PCIE3.0 x1_2, PCIE3.0 x1_3
Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports Supports RAID 0,1,10
* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.
Ethernet 1 x Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows® 11 or later.
USB Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback*
Audio Features:
- SupremeFX Shielding Technology
- Dual OP Amplifiers
- Premium audio capacitors
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.
Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
1 x ASUS Wi-Fi Module 1 x DisplayPort
1 x HDMI® port
1 x Intel® I225-V 2.5G Ethernet 1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors Fan and cooling-related
1 x 4-pin AIO_Pump header 1 x 4-pin CPU Fan header
1 x 4-Pin CPU_OPT Fan header 3 x 4-pin Chassis Fan headers Power related
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header 2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header
1 x Thunderbolt™ header
Special Features ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- M.2 heatsink
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
ASUS EZ DIY
- BIOS Flashback™ button
- BIOS FlashBack™ LED
- Clear CMOS header
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Software Features ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility EPU
DIGI+ VRM
Fan Xpert 4 TurboV EVO
- EZ update WinRAR DAEMON Tools
Norton Anti-virus software (Free Trial version)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows® 10 - 64 bit, Windows® 11 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
