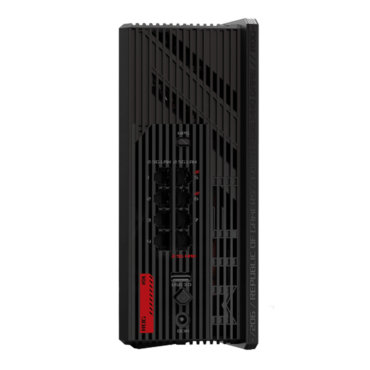

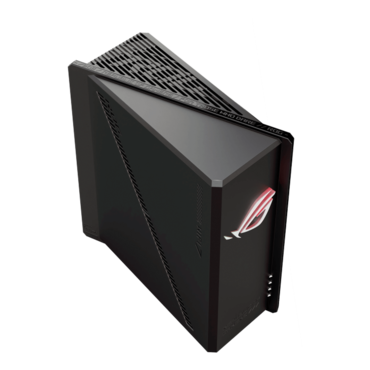

ROG Strix GS-BE12000, IEEE 802.11be, Tri-Band 2.4GHz / 5GHz / 6GHz, 688 / 5764 / 5764 Mbps, 7xRJ45, 1 x USB 3.2, Wireless Mesh System
- SKU: 19578099
- Manufacturer: ASUS
- MPN: GS-BE12000
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$321.83
| Model | ROG STRIX GS-BE12000 |
| Model Name | GS-BE12000 |
| Network Standard |
WiFi 6 (802.11ax) WiFi 7 (802.11be) IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IPv4 IPv6 |
| Product Segment | BE12000 ultimate BE performance: 688+5764+5764 Mbps |
| WiFi Data Rate |
2.4GHz BE: 2x2 (Tx/Rx) 4096 QAM 20/40MHz, up to 688Mbps 5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp 6GHz BE: 2x2 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 5764Mbps |
| Antenna | internal antenna x 8 |
| Transmit / Receive |
2.4GHz 2x2 5GHz 4x4 6GHz 2x2 |
| Processor | 2.0GHz quad-core processor |
| Memory | 256 MB Flash and DDR4 2 GB RAM |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth |
| Operating Frequency |
2.4 GHz 5 GHz 6 GHz |
| Operating Mode | Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge |
| I/O Ports | 1 x 2.5Gbps for WAN 7 x 2.5Gbps for LAN 1 x USB 3.2 Gen1 |
| Buttons | WPS Button, Reset Button, Power Button |
| LED Indicator | WAN(Internet) x1 LAN x1 WiFi x1 Power x1 |
| Power Supply |
AC Input: 110V~240V(50~60Hz) DC Output: 12 V with max. 5 A current / 12 V with max. 3 A current |
| Package Content |
GS-BE18000 tri-band gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 927.5 g |
| Product Dimensions | 225 x 90 x 225 mm |
| AiMesh |
AiMesh • Primary AiMesh Router • AiMesh Node |
| Game |
Game Boost / Acceleration Mobile Game Mode Gear Accelerator ROG_First OpenNAT (Game Profile) Gaming Port Gaming Network |
| Parental Control |
"Allow you to block access to unwanted websites and apps." Web & Apps Filters Time Scheduling Reward Parental Control Customized Internet Schedule • Maximum Parental Control Profile : 64 • Maximum Parental Control Content Filter Rule : 64 |
| Guest Network |
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Support Guest Network • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal |
| Security |
AiProtection VPN WiFi Encryption : WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| AiProtection |
AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN |
Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control |
Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -Maximum Bandwidth Limiter Rule : 32 Traditional QoS Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History |
| WAN |
Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP Internet Connection Type : • PPPoE • PPTP • L2TP • Automatic IP • Static IP • IPSec Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding • Maximum Port Forwarding Rule : 64 Port Triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
| LAN |
DHCP Server IPTV Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 128 Wake on LAN (WOL) |
| Wireless |
MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Wi-Fi Radar Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| USB application |
4G / 5G Auto Mobile Tethering File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk Download Master Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
| User Interface |
WEB: ASUSWRT APP: ASUS Router APP Operating system : ASUSWRT |
| Administration |
Configuration Backup and Restore Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
