ROG Strix X670E-F Gaming WIFI, AMD X670 Chipset, AM5, ATX Motherboard
Quantity:
- SKU: 15141095
- Manufacturer: ASUS
- MPN: ROG STRIX X670E-F GAMING WIFI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$406.34
ROG Strix X670E-F Gaming WIFI, AMD X670 Chipset, AM5, ATX Motherboard
ASUS ROG STRIX X670E-F GAMING WIFI6E motherboard built for gamers who pursue optimal in game experience with boosted power delivery and an optimized cooling design to maximize the demand for Ryzen 7000 series processors. Along with the latest Wi-Fi 6E, DDR5 Memory and PCI Express® 5.0 for superfast data transfer, memory and storage performance, ROG STRIX X670E-F GAMING WiFi is unmistakably ROG with its futuristic design elements, iridescent ROG logo, monochrome finish and Aura lighting that will give your build a subtle but vibrant look
- AMD Socket AM5(LGA 1718) for AMD Ryzen™ 7000 Series Desktop Processors
- Optimized Thermal Design: Massive VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, L-shaped heatpipe, four on board M.2 heatsinks and one M.2 backplate for the M.2_1 slot
- Overclocking technologies: Dynamic OC Switcher, Ryzen Core Flex, Asynchronous Clock and PBO Enhancement
- High-Performance Networking: Onboard WiFi 6E, Intel® 2.5 Gb Ethernet and ASUS LANGuard
- Fastest Gaming Connectivity: PCIe® 5.0, two onboard PCIe 5.0 M.2 slots, USB 3.2 Gen 2x2 front-panel connector and Thunderbolt™ header
- Industry-Leading Audio: ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, BIOS?FlashBack™, Clr CMOS Button, FlexKey, SafeSlot and SafeDIMM
- Intelligent Control: ASUS-exclusive tools including AI Cooling II, Two-Way AI Noise-Cancelation and AI Networking for easy configuration
- Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
| * Refer to www.asus.com for CPU support list. | |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
| Graphics | 1 x DisplayPort* |
| 1 x HDMI® port** | |
| * Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| **Supports max. 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 x16 slots (supports x16 mode) | |
| AMD X670 Chipset** | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| AMD X670 Chipset | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth |
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries. |
| USB | Rear USB (Total 12 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
| 9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®) | |
| 2 x USB 2.0 ports | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback |
| Audio Features | |
| - Audio Shielding | |
| - Savitech SV3H712 AMP | |
| - Gold-plated audio jacks | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Audio cover | |

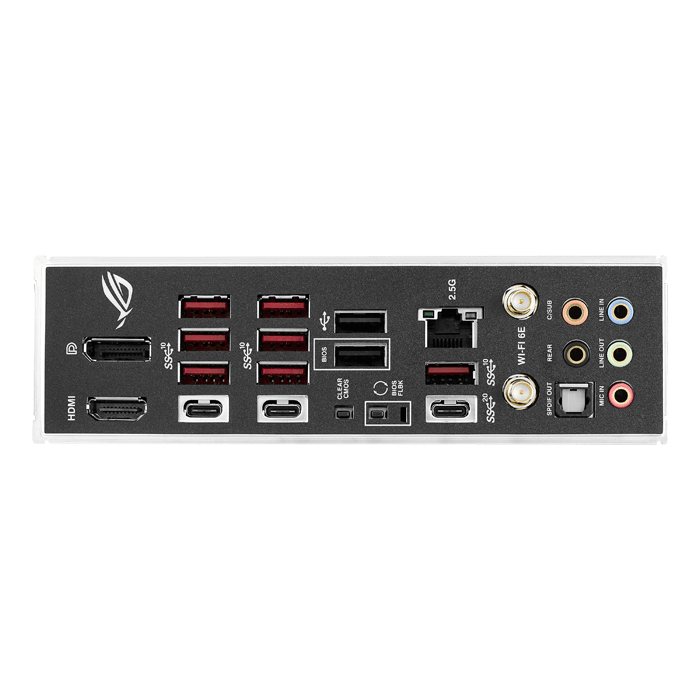

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x Type-C®) |
| 9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 x USB Type-C®) | |
| 2 x USB 2.0 ports | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Wi-Fi Module | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 5 x Gold-plated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V Power connector | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt™ header | |
| Special Features | Extreme Engine Digi+ |
| - 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsinks | |
| - M.2 heatsink backplate | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBack™ button | |
| - BIOS FlashBack™ LED | |
| - Clear CMOS button | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| Aura Sync | |
| - Aura RGB header | |
| - Addressable Gen 2 headers | |
| Software Features | ROG Exclusive Software |
| - GameFirst VI | |
| - ROG CPU-Z | |
| - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| - Sonic Radar III | |
| - DTS® Sound Unbound | |
| - Anti-virus software | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (60 days free trial) | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 4 (with AI Cooling II) | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| TPU | |
| DIGI+ VRM | |
| Turbo app | |
| PC Cleaner | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| Dynamic OC Switcher | |
| FlexKey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Additional Cooling Kit | |
| 1 x Thermal pad for M.2 | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x Cable ties pack | |
| 1 x M.2 Q-Latch package for M.2 backplate | |
| 1 x M.2 Q-Latch package | |
| 1 x ROG key chain | |
|
1 x ROG Strix stickers
B158
|
|
| 1 x ROG Strix thank you card | |
| 2 x Rubber Packages for M.2 | |
| 1 x Rubber Package for M.2 backplate | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows® 10 64-bit, Windows® 11 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
