ROG-THOR-850P2-GAMING, 80 PLUS Platinum 850W, Fully Modular, ATX Power Supply

  • SKU: 15989190
  • Manufacturer: ASUS
Starting At
ROG-THOR-850P2-GAMING, 80 PLUS Platinum 850W, Fully Modular, ATX Power Supply

ASUS ROG Thor 850W Platinum II (ROG-THOR-850P2-GAMING). Back with a vengeance, the second iteration of the ROG Thor 850W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.

  • Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth.
  • ROG heatsinks cover critical components, delivering lower temperatures and reduced noise.
  • A 135mm wing-blade fan with PWM control delivers lower noise and keeps thermals in check.
  • Built with low-ESR capacitors and other premium components to achieve 80 Plus Platinum Certification.

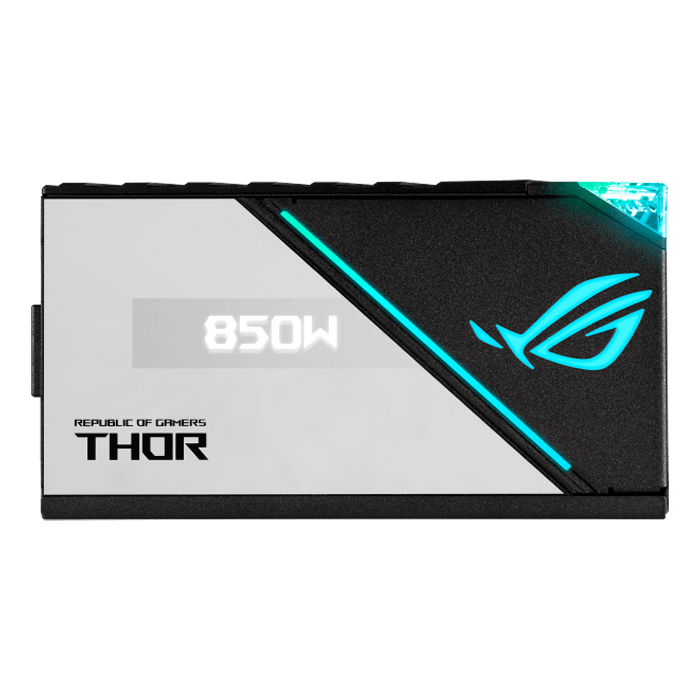

  • OLED display monitors power draw in real time.
  • Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.
Dimensions 160 x 150 x 86 mm
Efficiency 80Plus Platinum
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS
AC Input Range 100-240Vac
Thermal Features ROG Thermal Solution
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Maximum Load 20A 20A 71A 0.3A 3A
Combined Load 100W 100W 852W 3.6W 15W
Total Output 850W

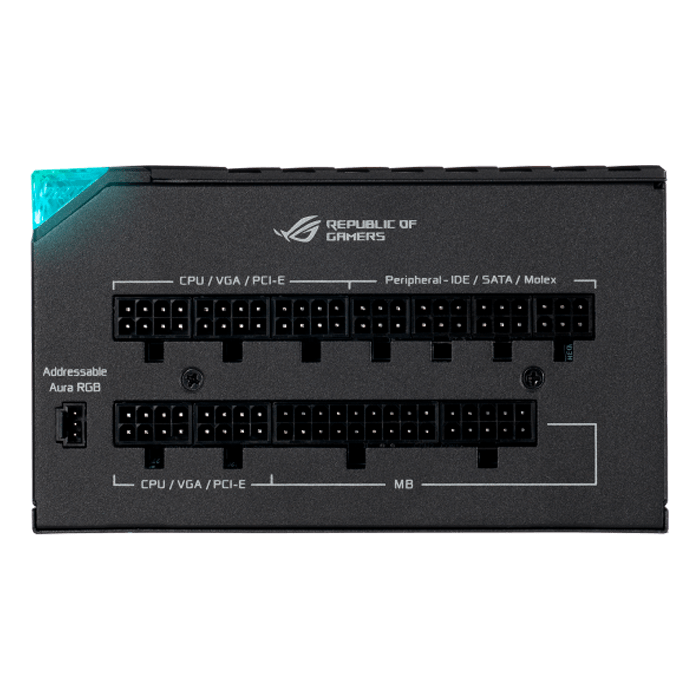

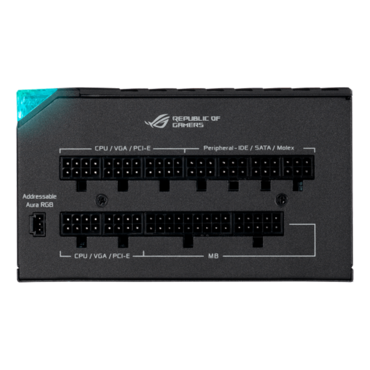

Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 3 SATA x 10 PERIPHERAL x 6
Package Contents Power Cord x 1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) PCIE Cable 16-pin x1 (675mm) PCIE 1-to-1 Cable x3 (675mm) PCIE 1-to-2 Cable x2 (675+75mm) SATA 1-to-2 Cable x1 (400+120mm) SATA 1-to-4 Cable x2 (400+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) Addressable RGB Cable x1 (800mm) ROG sticker x 1 ROG cable tie x 4 Sleeved Cable Combs (6-pin) x 2 Sleeved Cable Combs (8-pin) x 6 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 10 User Manual x 1
Weight 1.865kg (Single)
0dB Fan Button Yes
Cybenetics Noise Level Certification A++
