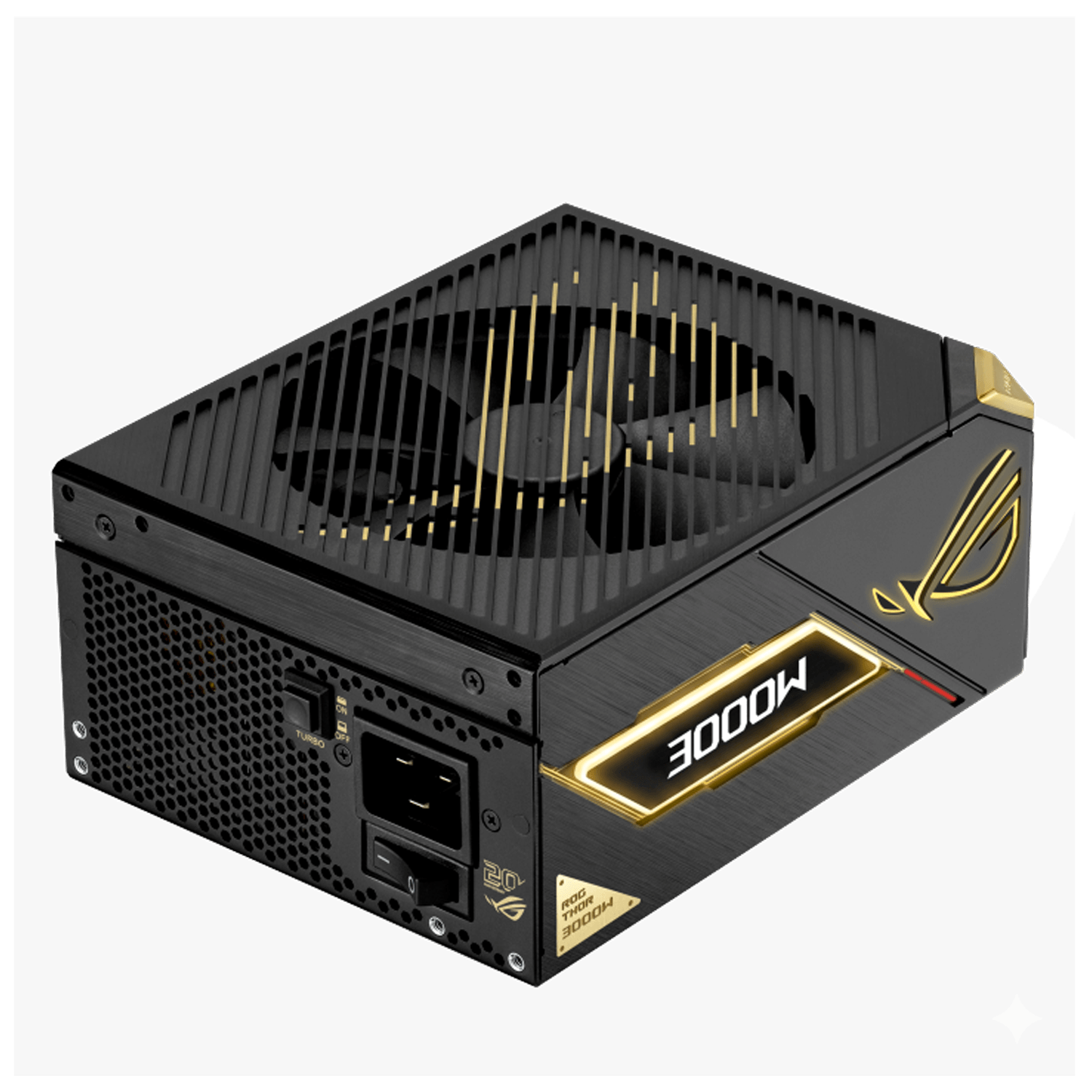

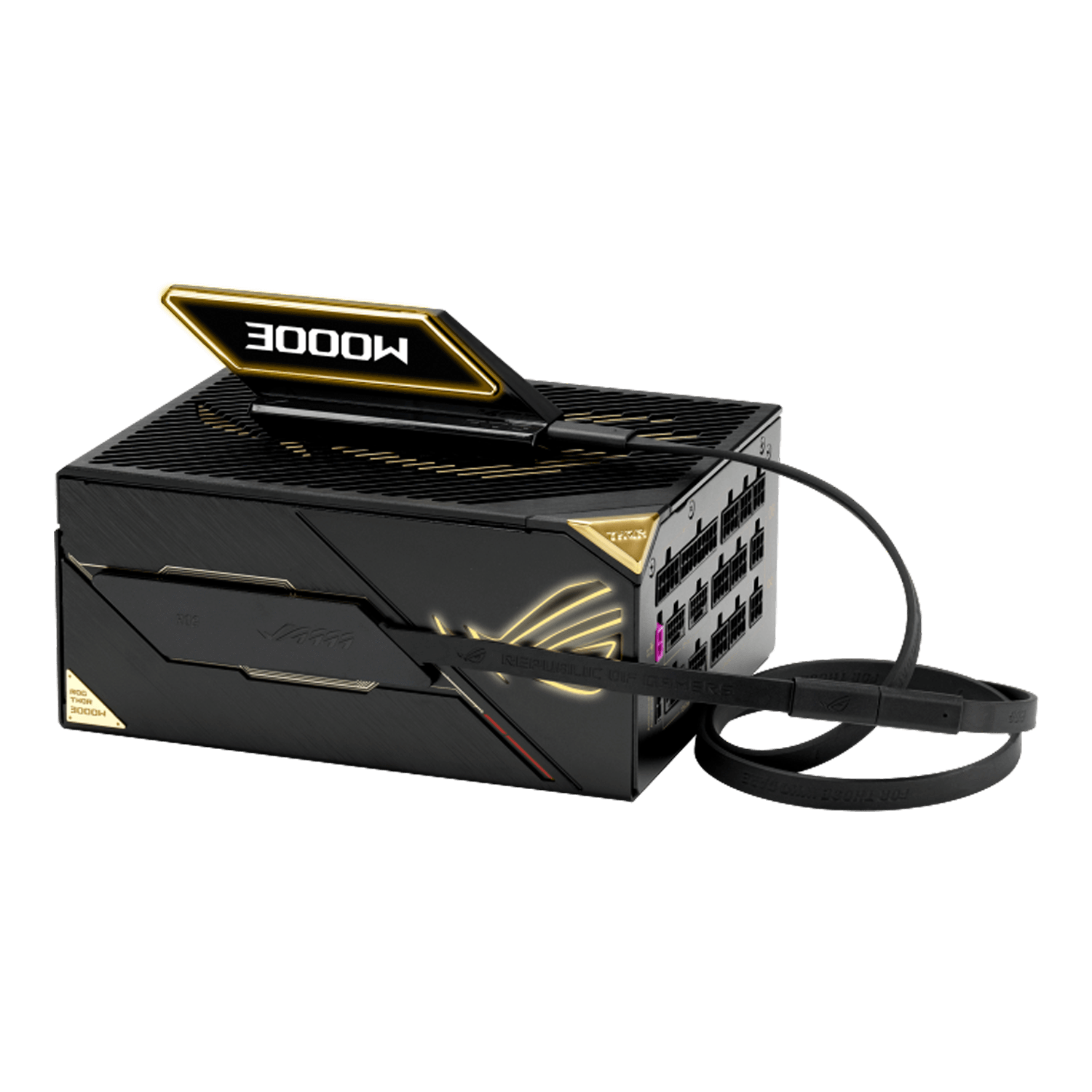

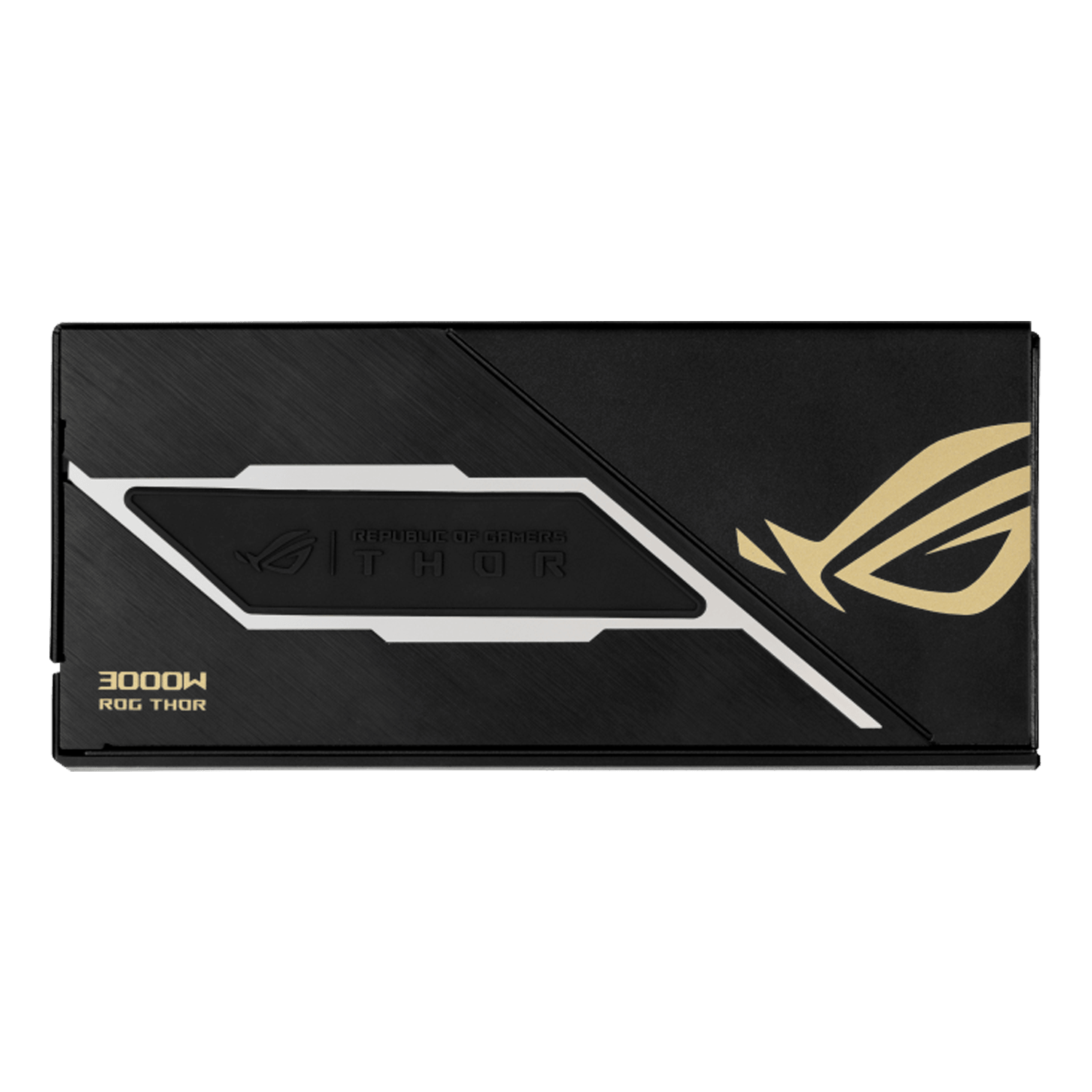

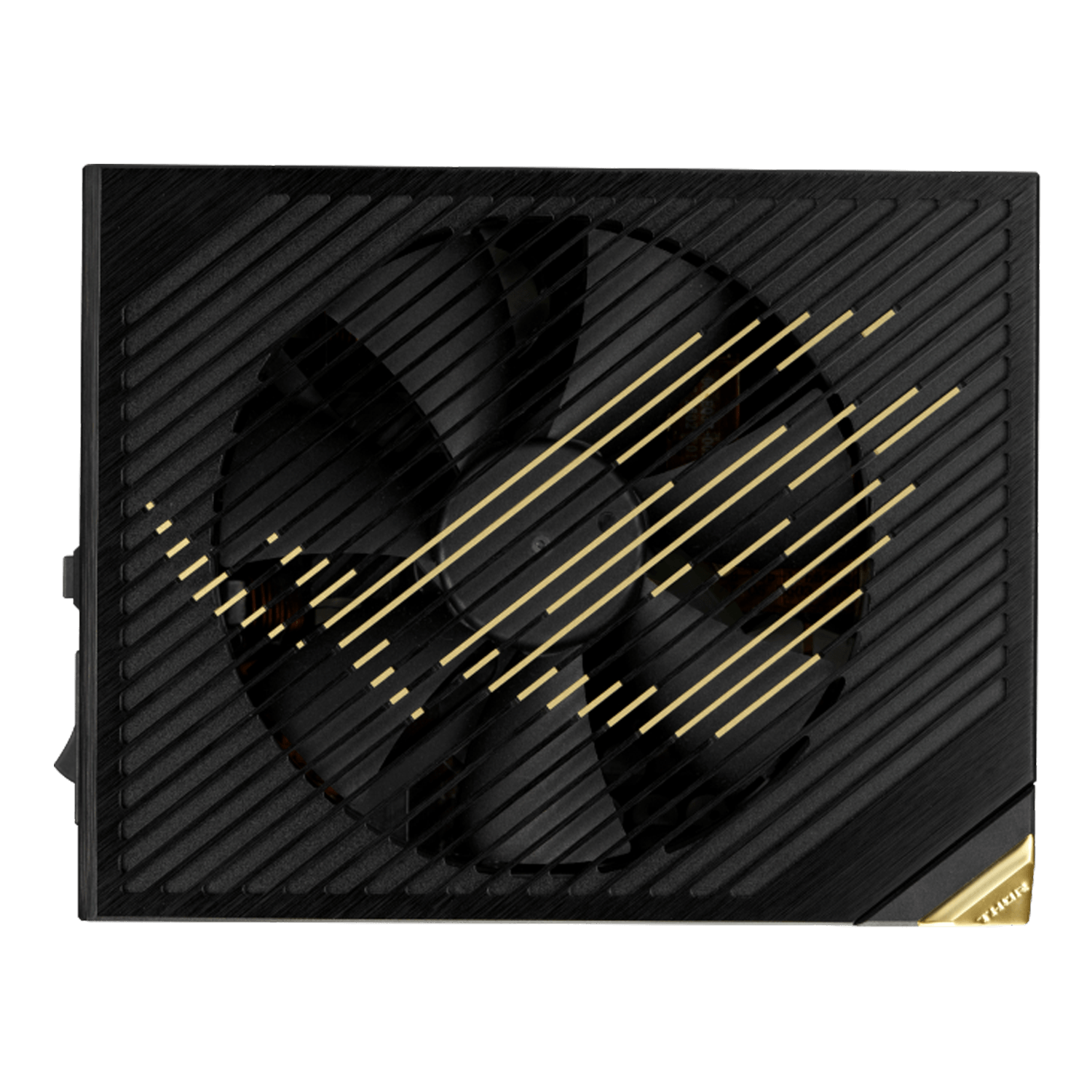

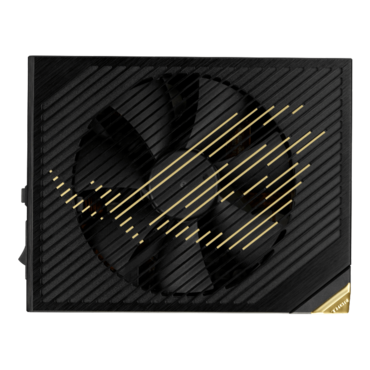

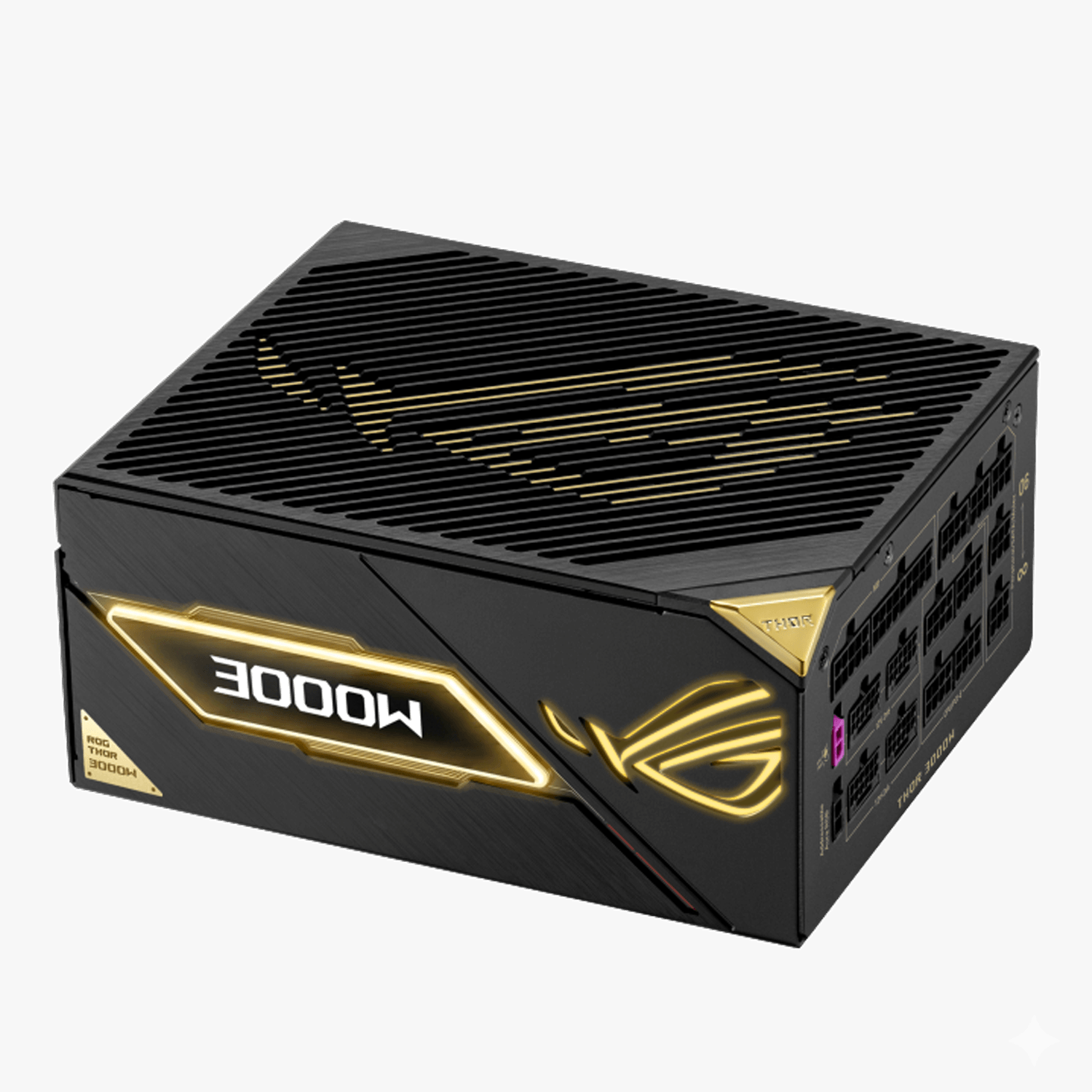

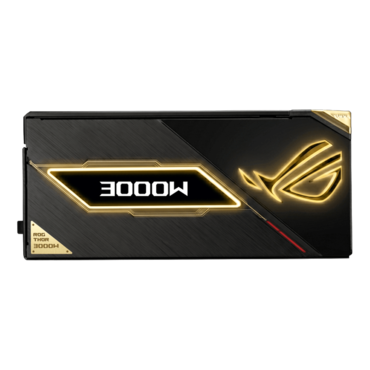

ROG Thor 3000W Titanium III Edition 20 (ROG Equalizer), 80 PLUS Titanium 3000W, Fully Modular, ATX Power Supply
- SKU: 20245068
- Manufacturer: ASUS
- MPN: ROG-THOR-3000T3-GAMING-20TH
- Availability: TEMPORARILY OUT OF STOCK
| Model | ROG Thor 3000W Titanium III Edition 20?(ROG Equalizer) |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 190 x 150 x 86 mm |
| Efficiency | 80Plus Titanium |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 220-240Vac|115-240Vac|100-115Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 30A 25A 250A 0.3A 3A|30A 25A 133.3A 0.3A 3A|30A 25A 108.3A 0.3A 3A |
| Combined Load | 125W 125W 3000W 3.6W 15W|125W 125W 1600W 3.6W 15W|125W 125W 1300W 3.6W 15W |
| Total Output | 3000W |

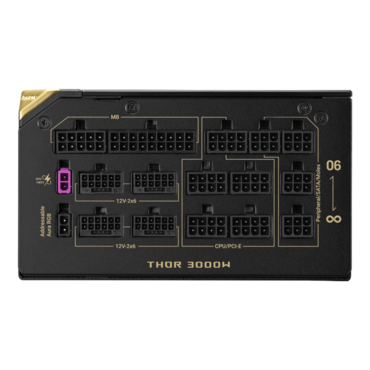

| Cable Connectors |

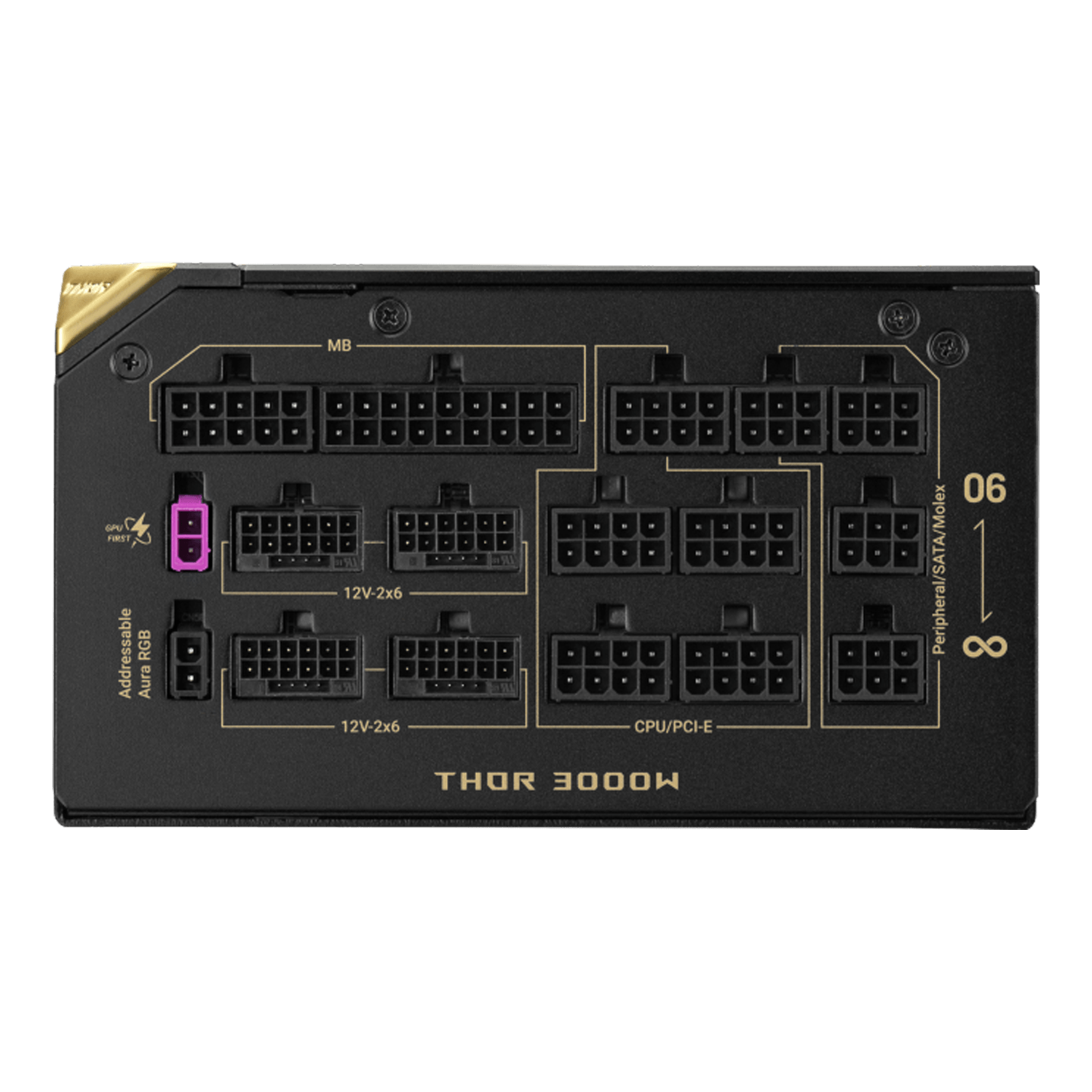

MB 24/20-pin x 1 CPU 4+4-pin x 3 PCI-E 6+2-pin x 3 PCI-E 16-pin x 4 (12V-2x6/ROG EQUALIZER) SATA x 9 PERIPHERAL x 3 |
| Package Contents |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 3 (1000mm) ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm) ROG EQUALIZER 12V-2x6 PCI-E Cable x3 (750mm) PCI-E Cable 1-to-1 x 3 (750mm) SATA Cable 1-to-3 x 3 (400+120+120mm) Peripheral 1-to-3 x 1 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG OLED stand x 1 ROG 20TH Thank You Card x 1 ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Weight | 2.5 kg (single PSU) |
| AURA SYNC | ARGB |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
