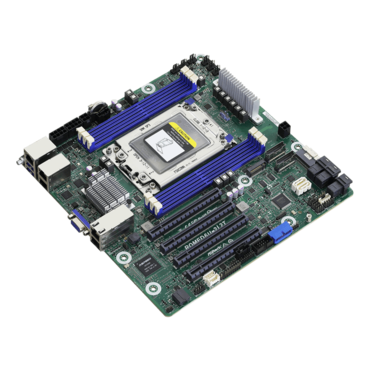

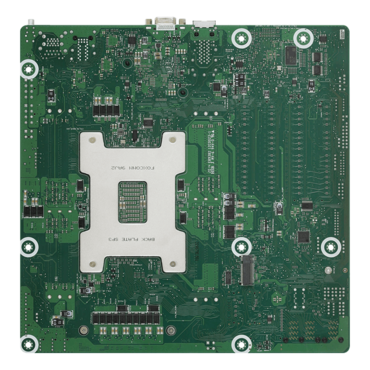

ROMED6U-2L2T, AMD SoC, SP3, DDR4-3200 1.5TB 3DS LRDIMM / 6, VGA, M.2 / 2, USB 3.2 / 2, 10GbLAN / 2, GbLAN / 2, microATX Retail
- SKU: 14039930
- Manufacturer: ASROCK
- MPN: ROMED6U-2L2T
- Availability: CONTACT US
| Physical Status | |
| Form Factor | Micro-ATX |
| Dimensions | 9.6" x 9.6" (244 mm x244 mm) |
| Processor System | |
| CPU |
Support AMD EPYC™ 7003* and 7002 Series Processors *A BIOS update is required to support AMD EPYC™ 7003 Series Processors. |
| Socket | Single Socket SP3 (LGA4094) |
| Chipset | System on Chip |
| System Memory | |
| Capacity | 6 DIMM slots (1DPC) |
| Type | Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM |
| DIMM Size Per DIMM |
RDIMM: up to 64GB LRDIMM: up to 128GB RDIMM/LRDIMM-3DS: up to 256GB NVDIMM: up to 32GB |
| DIMM Frequency |
RDIMM/ LRDIMM: max. 3200MHz NVDIMM: max. 2666MHz |
| Voltage | 1.2V |
| Expansion Slot | |
| PCIe x 16 |
SLOT7: PCIe4.0 x16 SLOT6: PCIe4.0 x16 SLOT5: PCIe4.0 x16 SLOT4: PCIe4.0 x16 |
| Storage | |
| SATA Controller |
AMD EPYC 7003/7002 (31 SATA 6Gb/s): 2 SlimSAS, 3 Mini-SAS HD, 2 SATA 7-pin, 1 M.2 |
| Slimline for U.2 |
1 SlimSAS (PCIe4.0 x8) 2 SlimSAS (PCIe4.0 x8 or 8 SATA 6Gb/s) |
| M.2 slot |
1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2280 form factor 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2260 form factor [BTO] |
| Ethernet | |
| Additional GbE Controller |
1 Intel® X710-AT2: 2 RJ45 (10GbE) 2 Intel® i210: 2 RJ45 (1GbE) |
| Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |

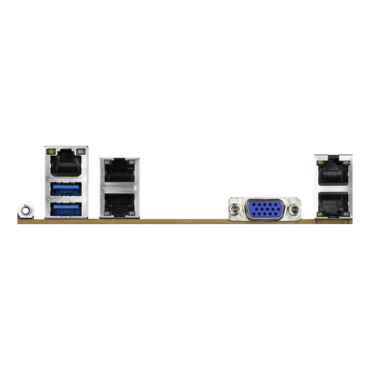

| Rear Panel I/O | |
| VGA Port | 1 DB15 |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| Lan Port | 2 RJ45 (10GbE), 2 RJ45 (1GbE) |
| Dedicate LAN | 1 dedicated IPMI |
| UID Button/UID LED | 1 |
| Internal Connector | |
| COM Header | 1 |
| Front Lan LED Connector | LAN3/LAN4 LED header |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TPM Header | 1 (17-pin, LPC) |
| Thermal Sensor Header | 1 |
| IPMB Header | 1 |
| PMBus CONN | 1 |
| Fan Header | 6 (4-pin) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| Speaker Header | 1 |
| BMC_SMB Header | 1 |
| CPU HSBP | 1 |
| Power Connector | 1(4-pin) + 2 (8-pin) support 12V DC-IN, 1 (4-pin) for HDD power |
| Clear CMOS | 1 (contact pads) |
| Onboard LED | |
| Standby PWR LED 5vsb | 1 |
| Fan Fail LED | 6 |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, LAN Temperature Sensing |
| Fan |
Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3v/5v/12v, +BAT, 3VSB, 5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
