RS-0615-F, 6 Outlets, 15-ft cord, 120V/15A, Black, Power Strip
- SKU: 1181729
- Manufacturer: TRIPP LITE
- MPN: RS-0615-F
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS

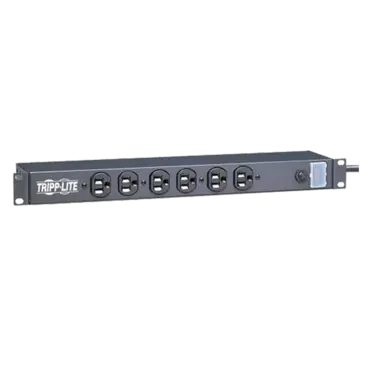

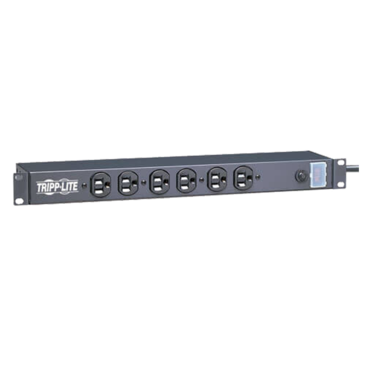

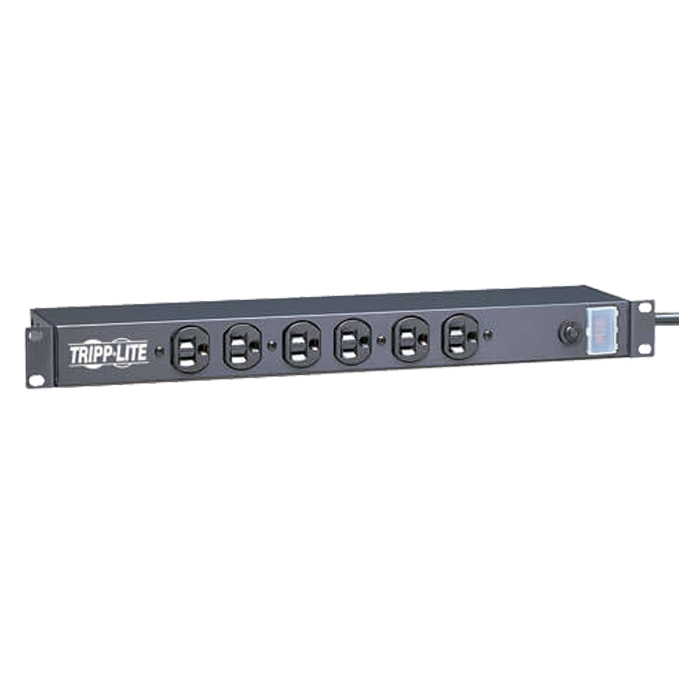

Always have outlets readily available in your rack enclosure with Tripp Lite's RS-0615-F Rackmount Power Strip. It provides six front-facing NEMA 5-15R outlets in a rugged, all-metal 1U housing guaranteed to last for life. Included mounting hardware allows for 1U or 0U (vertical) rackmount, wall-mount and under-counter installations, making the RS-0615-F ideal for a variety of uses in back office, network cabinet and network closet applications. With the extra length provided by its 15ft power cord, you don't have to install the RS-0615-F next to outlets you already have; it can be mounted in any rack position or across the room and deliver reliable service where you need it most. A lighted and covered On/Off switch helps prevent accidental shut-off, while a 15A circuit breaker guards against dangerous circuit overloads before they happen. For guaranteed peace of mind, the RS-0615-F comes backed by a lifetime warranty.
Features
- Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
- Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
- Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
- 6 front facing NEMA5-15R output receptacles
- 15 foot AC cord NEMA5-15P plug connection
- Lighted power switch confirms power on/off status
- Latching switch guard prevents accidental turn off
- 15 amp electrical capacity with circuit breaker
- 120VAC, 50/60Hz electrical compatibility
Package Includes
- RS-0615-F Power Strip
- Warranty information
- Instruction manual
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (6) 5-15R |
| Circuit Breaker (amps) | 15 |
| Nominal Input Voltage(s) Supported | 120V AC |
| Recommended Electrical Service | 15A 120V |
| Input Connection Type | NEMA 5-15P |
| Input Cord Length (ft.) | 15 |
| Voltage Compatibility (VAC) | 120 |
| Switches | Red illuminated 2 positon switch controls power to all outlets |
| Locking Switch Cover | Transparent locking switch cover prevents accidental shutoff |
| Unit Dimensions (hwd / in.) | 1.75 x 17.5 x 4.5 |
| Unit Weight (lbs.) | 5.50 |
| Material of Construction | Sheet metal |
| Receptacle Color | Black |
| Color (AC Line Cord) | Black |
| Form Factors Supported | 1U rackmount, wall-mount and undercounter installation supported |
| Outlets Measurement (Center to Center) | Distance between grouped outlets = 38.90mm; Distance between groups = 44.45mm; Distance between duplex outlets = 83.35 |
| TVSS Grounding | Back panel nut and bolt grounding lug |
| NOM (Mexico) | NOM |
| UL1363 (Power Tap) | UL1363 (UR status) |
| cUL / CSA (Canada) | cUL |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
