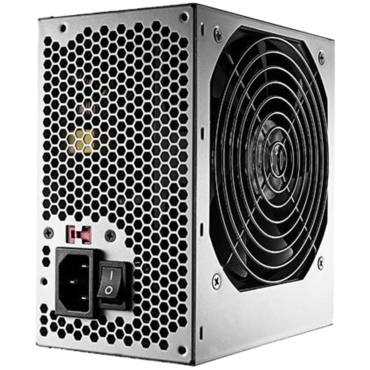

RS460-PSARJ3-US, 460W, No Modular, ATX Power Supply
- SKU: 3471093
- Manufacturer: COOLER MASTER
- MPN: RS460-PSARJ3-US
- Availability: CONTACT US
Elite power supplies deliver value while providing a durable power source for everyday computing. Using high performance components, Elite power supplies are compliant with most international standards including ATX 12V V2.3. Powerful dual +12V rails provide ample power for additional hard drives, and components. It features Compliance with the newest Intel standard ATX 12V V2.3, More than 70% efficiency at typical load operation, High performance components design for better reliability, Green power design to meet Energy Star and Blue Angel requirements, Multiple protection design (OVP/OCP/OPP/SCP), Support dual +12V1 and +12V2 outputs for higher power usage, One 4+4 pin +12V CPU connector for high-end CPU and EMI & Noise filter built in design.
- Compliance with the newest Intel standard ATX 12V V2.3
- More than 70% efficiency at typical load operation/li>
- High performance components design for better reliability
- Green power design to meet Energy Star and Blue Angel requirements
- Multiple protection design(OVP/OCP/OPP/SCP)
- Support dual +12V1 and +12V2 outputs for higher power usage
- One 4+4 pin +12V CPU connector for high-end CPU
- EMI and Noise filter built in design
| Model | RS460-PSARJ3-US |
| Type | Intel Form Factor ATX 12V V2.31 |
| Dimension | 150 x 86 x 140 mm |
| Input Voltage | 110~120V/220~240V (Selectable) |
| Input Current | |
| Input Frequency Range | 47 ~ 63 Hz |
| PFC | None PFC |
| Power Good Signal | 100 ~ 500 ms |
| Hold Up Time | > 17 ms |
| Efficiency | >70% Typically |
| MTBF | >100,000 hrs |
| Protection | OVP / OCP / OPP / SCP |
| Output Capacity | 460 Watts |
| Operation Temperature | 0~40 °C (Nominal Input Voltage) |
| Regulatory | CE / GOST / C-tick / UL |
| Fan | 120mm fan |
| Connector | M/B 20+4 Pin x 1 CPU 4+4 Pin x 1 4 Pin Peripheral x 3 SATA x 4 4 Pin Floppy x 1 6 Pin PCI-e Connector x 1 |
| Warranty | 2 years |
