RS501A-E12-RS4U-16TWH, 1U, AMD SoC, 4x 2.5" NVMe/SATA/SAS Hotswap, 24x DDR5, 2x 1GbLAN, (1+1) 1600W Rdt PSU
- SKU: 19072908
- Manufacturer: ASUS
- MPN: RS501A-E12-RS4U-16TWH
- Availability: CONTACT US
Price
$2,422.18
| Processor / System Bus |
1 x Socket SP5 (LGA 6096) 5th Generation AMD EPYC Processors or4th Generation AMD EPYC Processors AMD EPYC™ 9005/9004 Series Processors (Air cool with EVAC up to 450W) |
| Memory |
24 x DIMM slots with AMD EPYC™ 9005 series processors DDR5 6400/5600 RDIMM/3DS RDIMM Maximum 2,304GB 2DPC (1 of 2) up to 5200 with "6400 RDIMM", other 4800 2DPC (2 of 2, 1R+1R ) up to 4400, with "6400 RDIMM", other 4000 2DPC (2 of 2, 2R+2R ) up to 4000, with "6400 RDIMM", other 3600 with AMD EPYC™ 9004 series processors DDR5 4800 RDIMM/ 3DS RDIMM Maximum2,304GB 2DPC (1 of 2) up to 4800, 2DPC (2 of 2, 1R+1R ) up to 4000 2DPC (2 of 2, 2R+2R ) up to 3600 * Refer to support page for more information |
| Expansion Slots |
Up to 3 PCIe Gen5 slots + 1 OCP3.0 1 x PCIe x16 slot (Gen5 x16 link, FH, HL) 1 x PCIe x16 slot (Gen5 x16 link, LP, HL) 1 x PCIe x16 slot (Gen5 x8 link, LP, HL) 1 x OCP3.0 socket (Gen5 x16 link) |
| Storage |
Storage Controller: CPU Integrated Optional kits Controller: ASUS PIKE II 3008-8i 8-port SAS 12G HBA card |
| Drive Bays |
Front bays: 4 x 2.5” Hot-swap Storage Bays 4 x SATA/SAS/NVMe* *SAS support only from optional SAS HBA/RAID card 2 x M.2 connectors |
| Networking |
1 x Dual Port Intel I350-AM2 GbE LAN Controller 1 x Management Port |
| Graphic | Up to 2 single-slot GPU cards |
| Multi-GPU Support | Please find the latest GPU support from https://servers.asus.com/support/GPU |

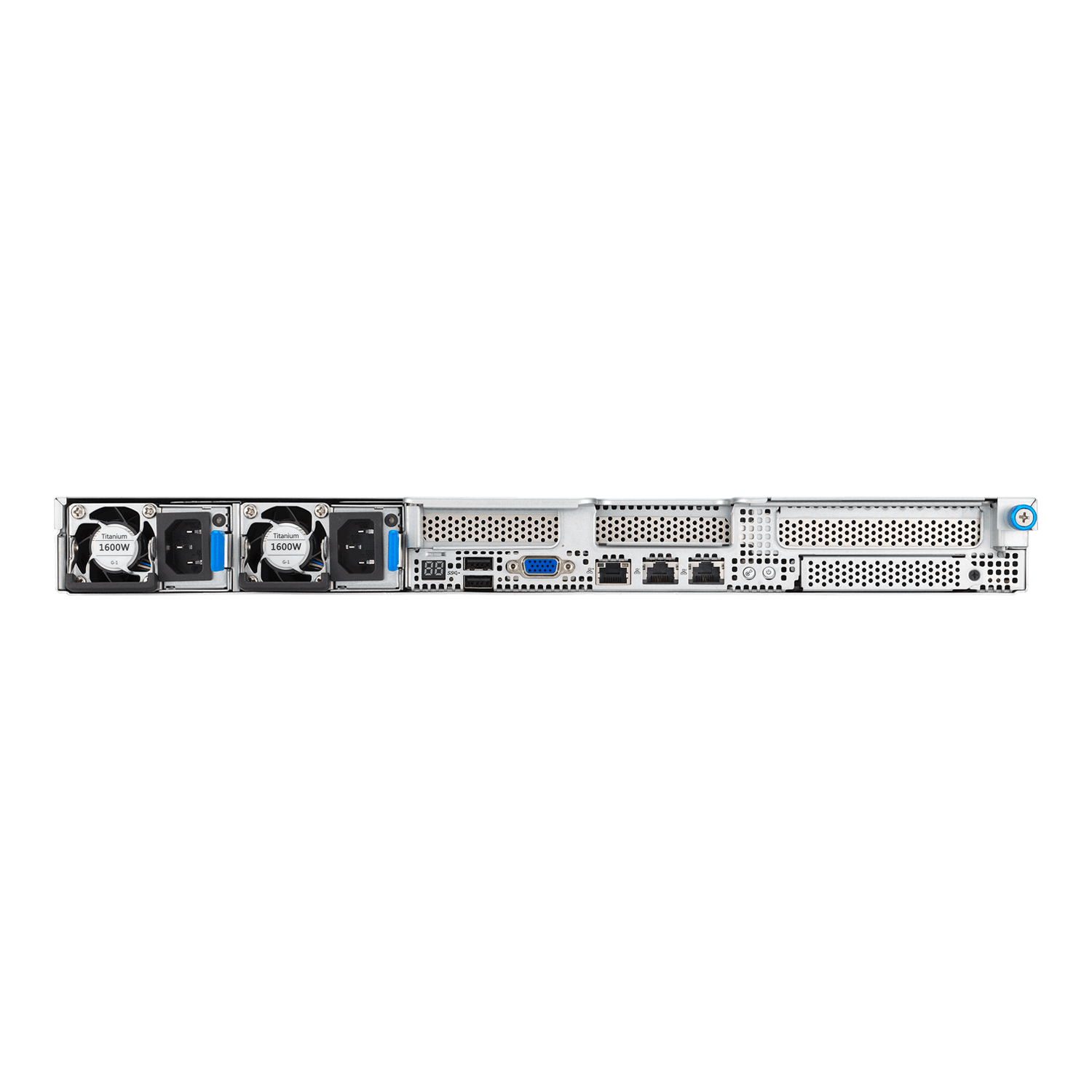

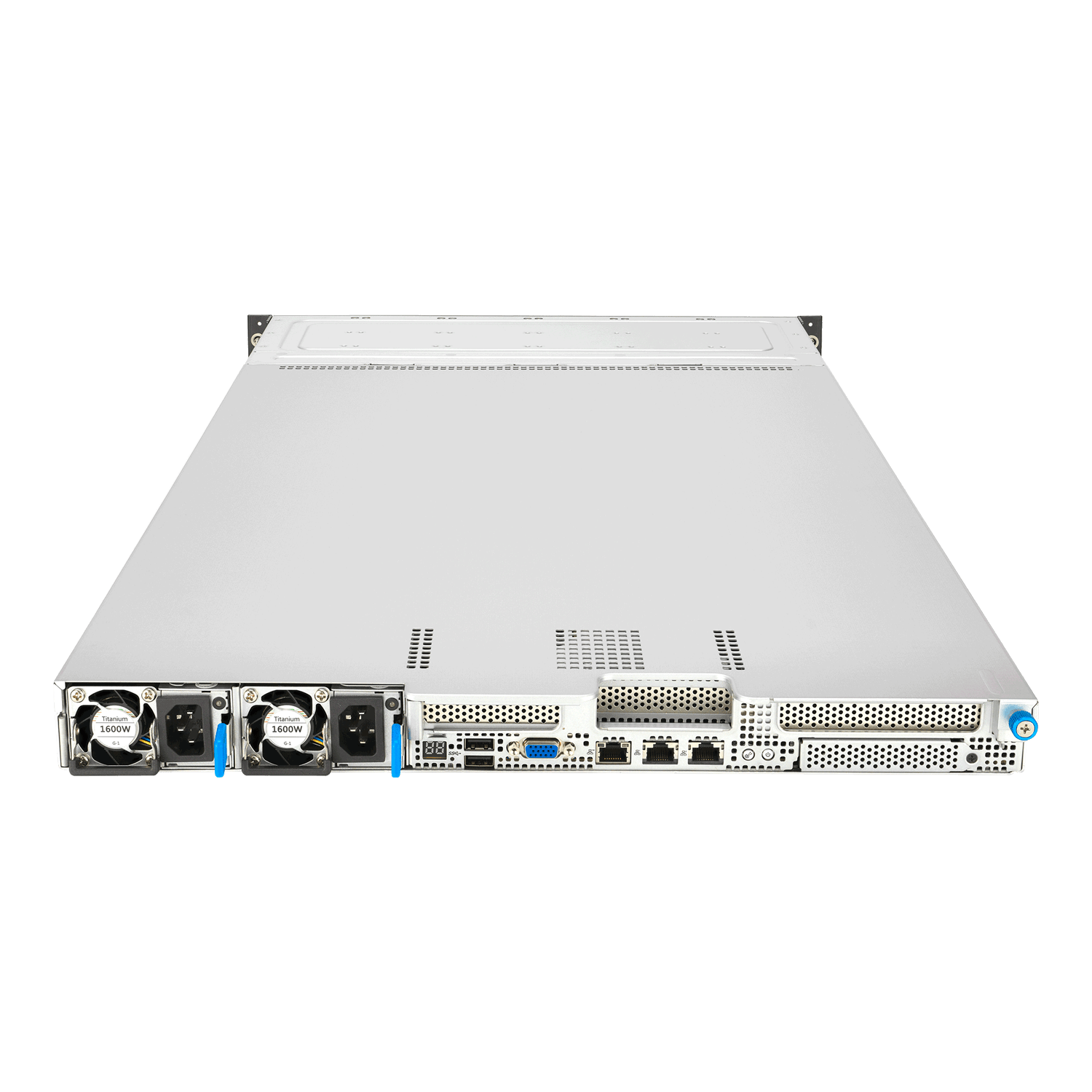

| Rear I/O Ports |
2 x USB 3.2 Gen1 ports 1 x VGA port 1 x Management port 2 x 1GbE LAN ports |
| Switch/LED |
Front: 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED LAN 1-2 LED Rear: 1 x Port80 LED (Q-Code) 1 x Power Button/LED 1 x Location Button/LED 1 x Message LED |
| OS Support |
Please find the latest OS support from: https://servers.asus.com/support/os |
| Management Solution |
ASUS Control Center ASUS ASMB11-iKVM (on-board) |
| Regulatory Compliance | BSMI, CB, CE, RCM, FCC(Class A),ENERGY STAR® |
| Dimensions |
842.5mm x 449mm x 43.85mm (1U) 33.17" x 17.68" x 1.73" |
| Form Factor | 1U |
| Weight |
(approximate) Net Weight: 14.16 kg Gross Weight: 19.16 kg |
| Power Supply |
1+1 Redundant 1600W 80 PLUS Titanium Power Supply 1+1 Redundant 1200W 80 PLUS Platinum Power Supply |
| Environment |
Operating temperature: 10°C – 35°C Non operating temperature: -40°C – 70°C Non operating humidity: 20% – 90% (Non condensing) Note Operating Temperature based on configurations |
| Optional Items |
Rail Kit: Tool-less Friction Rail Kit 1.2m Half Extension Ball bearing Type Rail Kit 1m Half Extension Ball bearing Type Rail Kit 1U Height Full Extension Ball bearing Type Rail Kit *Please consult sales if cable arm needed. 1U Front Bezel |
| Note | Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization. |
