RT-AX3000, IEEE 802.11ax, Dual-Band 2.4 / 5GHz, 574 / 2402 Mbps, 4xRJ45, USB 3.1, Wireless Router

SKU: 13230618

Manufacturer: ASUS

MPN: RT-AX3000

Availability: Available


Price: $187.89
or as low as $6/month
Quantity:

ASUS RT-AX3000 (RT-AX3000). AX3000 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Pro network security powered by Trend Micro™, compatible with ASUS AiMesh WiFi system.

  • Next-Gen Wi-Fi Standard - Supporting the latest Wi-Fi standard 802.11AX (Wi-Fi 6) and 160MHz bandwidth for better capacity and efficiency.
  • Ultra-fast Wi-Fi Speed – RT-AX3000 supports 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band.
  • Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
  • Commercial-grade Security - lifetime free AiProtection, powered by Trend Micro™, blocks internet security threats for all your connected smart devices.
  • Better Partner with Mesh System - Compatible with ASUS AiMesh Wi Fi system for seamless whole-home coverage.
Network Standard IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6
Product Segment AX 3000 (2402Mbps+574Mbps)
Coverage Large homes
Data Rate 802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11ac : up to 867 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHz) : up to 2402 Mbps
Antenna External antenna x 4
Transmit/Receive 2.4 GHz 2 x 2
5 GHz 2 x 2
Processor 1.5 GHz tri-core processor
Memory 256 MB Flash
512 MB RAM
Wi-Fi Technology OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency 2.4 GHz / 5 GHz
Encryption WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
Firewall & Access Control Firewall: SPI intrusion detection, DoS protection
Access control:Parental control, Network service filter, URL filter, Port filter
Management UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
VPN Support IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
WAN Connection Type Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

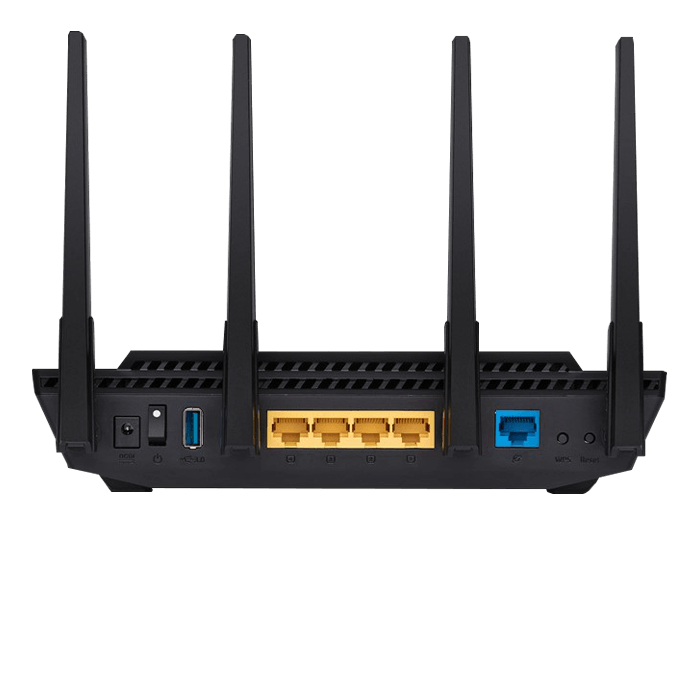

Ports RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.1 Gen 1 x 1
Features Router app
MU-MIMO
Traffic Analyzer
Adaptive QoS
AiProtection Pro
Parental Control
Guest Network :
VPN server : PPTP Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
IPTV support
Roaming Assist
OFDMA
Beamforming
Button WPS Button, Reset Button, Power Switch
LED Indicator Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
Power Supply AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
OS Support Windows® 10
Windows® 8
Windows® 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Dimensions 224 x 154 x 160 mm (LxWxH)
Weight 538 g
Operation mode Wireless router mode
Access point mode
Media bridge mode
