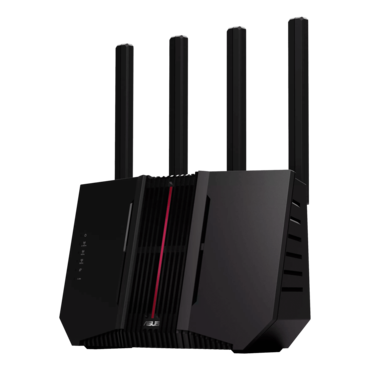

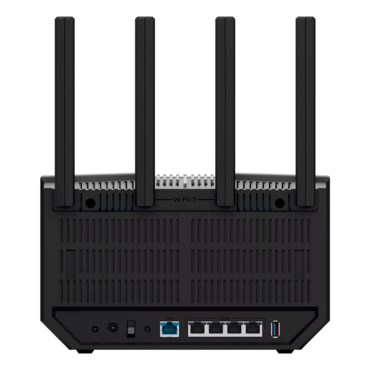

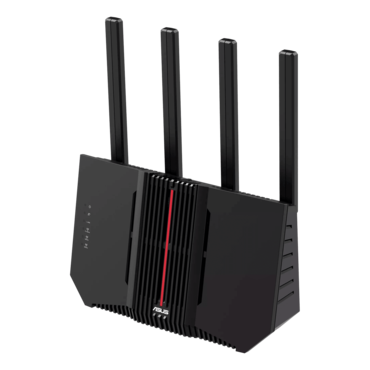

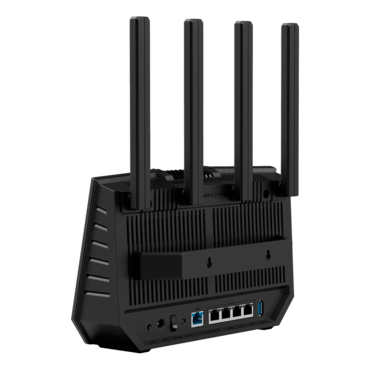

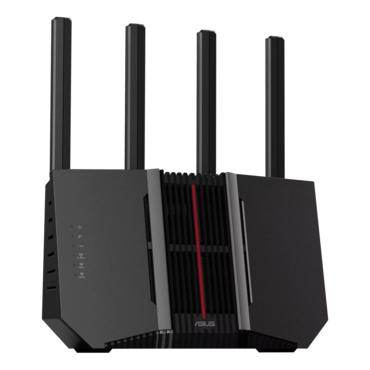

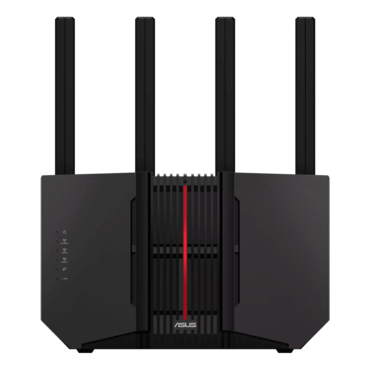

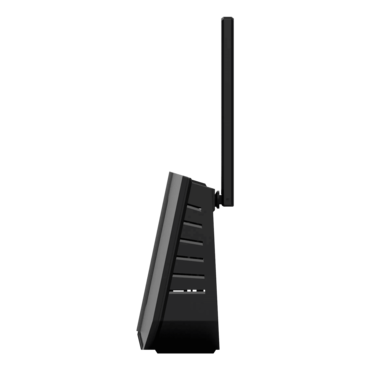

RT-BE92U, IEEE 802.11be, Tri-Band 2.4GHz / 5GHz / 6GHz, 1032 / 2882 / 5764 Mbps, 5xRJ45, 1 x USB 3.2 Gen 1, Retail Wireless Router
- SKU: 18059197
- Manufacturer: ASUS
- MPN: RT-BE92U
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
RT-BE92U, IEEE 802.11be, Tri-Band 2.4GHz / 5GHz / 6GHz, 1032 / 2882 / 5764 Mbps, 5xRJ45, 1 x USB 3.2 Gen 1, Retail Wireless Router
The ASUS RT-BE92U boasts cutting-edge WiFi 7 technology with superior 6 GHz band. Enjoy next-generation speeds and connected experiences and cloud computing, including 8K streaming, HDR gaming, content creation and AI networking.
| Model | ASUS RT-BE92U |
| Network Standard |
IPv6 IPv4 WiFi 7 (802.11be) WiFi 6E (802.11ax) WiFi 6 (802.11ax) WiFi 5 (802.11ac) WiFi 4 (802.11n) IEEE 802.11g IEEE 802.11b IEEE 802.11a |
| Product Segment | BE9700 ultimate BE performance : 1032+2882+5764 Mbps |
| WiFi Data Rate |
WiFi 7 (802.11be) (6GHz): up to 5764 Mbps WiFi 7 (802.11be) (5GHz): up to 2882 Mbps WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps |
| Antenna | External antenna x 4 |
| Transmit / Receive | 6GHz 2x2 5GHz 2x2 2.4GHz 3x3 |
| Processor | 2.0GHz quad-core processor |
| Memory | 256 MB Flash and 1 GB DDR4 RAM |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth |
| Operating Frequency | 6 GHz 5 GHz 2.4 GHz |
| Operating Mode |
Repeater Mode Media Bridge Mode Access Point Mode AiMesh Node Mode Wireless Router Mode |
| I/O Ports | 1 x 10Gbps for WAN/LAN 1 x 2.5Gbps for WAN/LAN 3 x 2.5 Gbps for LAN USB 3.2 Gen1 x1 |
| Buttons | WPS Button, Reset Button, Power Switch |
| LED Indicator | Power x1 WAN x1 LAN x1 2.4GHz x1 5GHz x1 6GHz x1 |
| Power Supply | AC Input: 110V~240V(50~60Hz) DC Output: 12 V with max. 3 A current |
| Package Content |
RT-BE92U WiFi 7 Tri-band Router Wall Mount Kit RJ-45 cable Power Adapter Quick Start Guide Warranty Card |
| Product Dimensions | 247.18 x 101.59 x 287.47 mm / 9.73 x 4.00 x 11.32 inch |
| AiMesh | AiMesh, • Primary AiMesh Router, • AiMesh Node |
| Parental Control | Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64 |
| Guest Network | "The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3, Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-Personal |
| Security |
AiProtection, VPN, WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64 |
| AiProtection | AiProtection, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS |
| VPN | Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark |
| Traffic Control | Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History |
| WAN |
• IPSec • Static IP • Automatic IP • L2TP • PPTP • PPPoE Internet Connection Type :, Dual WAN, 3G / 4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, • PPPoE Relay • SIP Pass-Through • H.323 Pass-Through • RTSP Pass-Through • IPSec Pass-Through • L2TP Pass-Through • PPTP Pass-Through NAT Passthrough : |
| LAN | DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 128, Wake on LAN (WOL) |
| Wireless | MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming |
| USB application |
4G / 5G Auto Mobile Tethering, • ext4 • ext3 • ext2 • vFAT • NTFS • HFS+ File System :, Safely Remove Disk, Download Master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges |
| User Interface | WEB: ASUSWRT, APP: ASUS Router APP |
| Administration | Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update |
