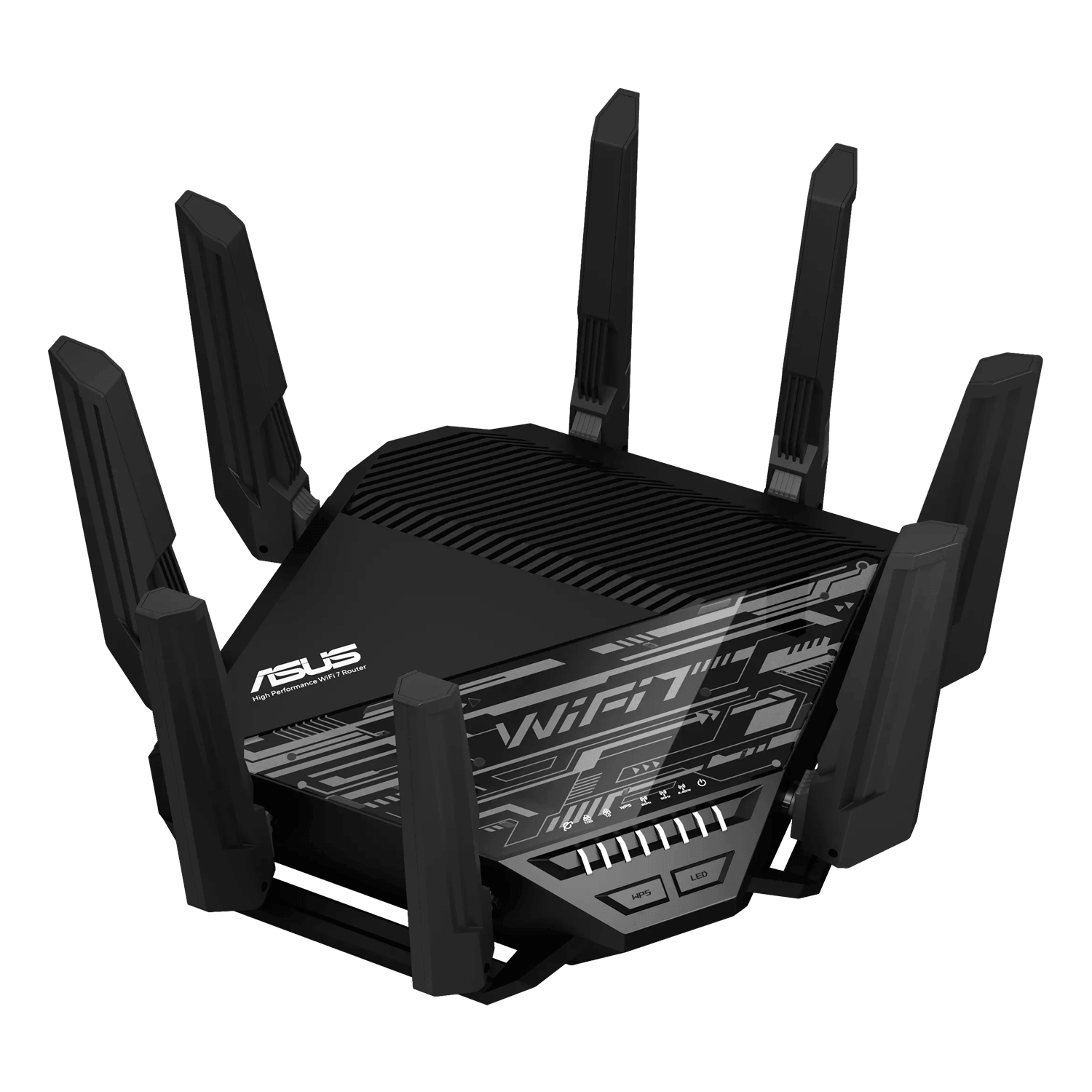

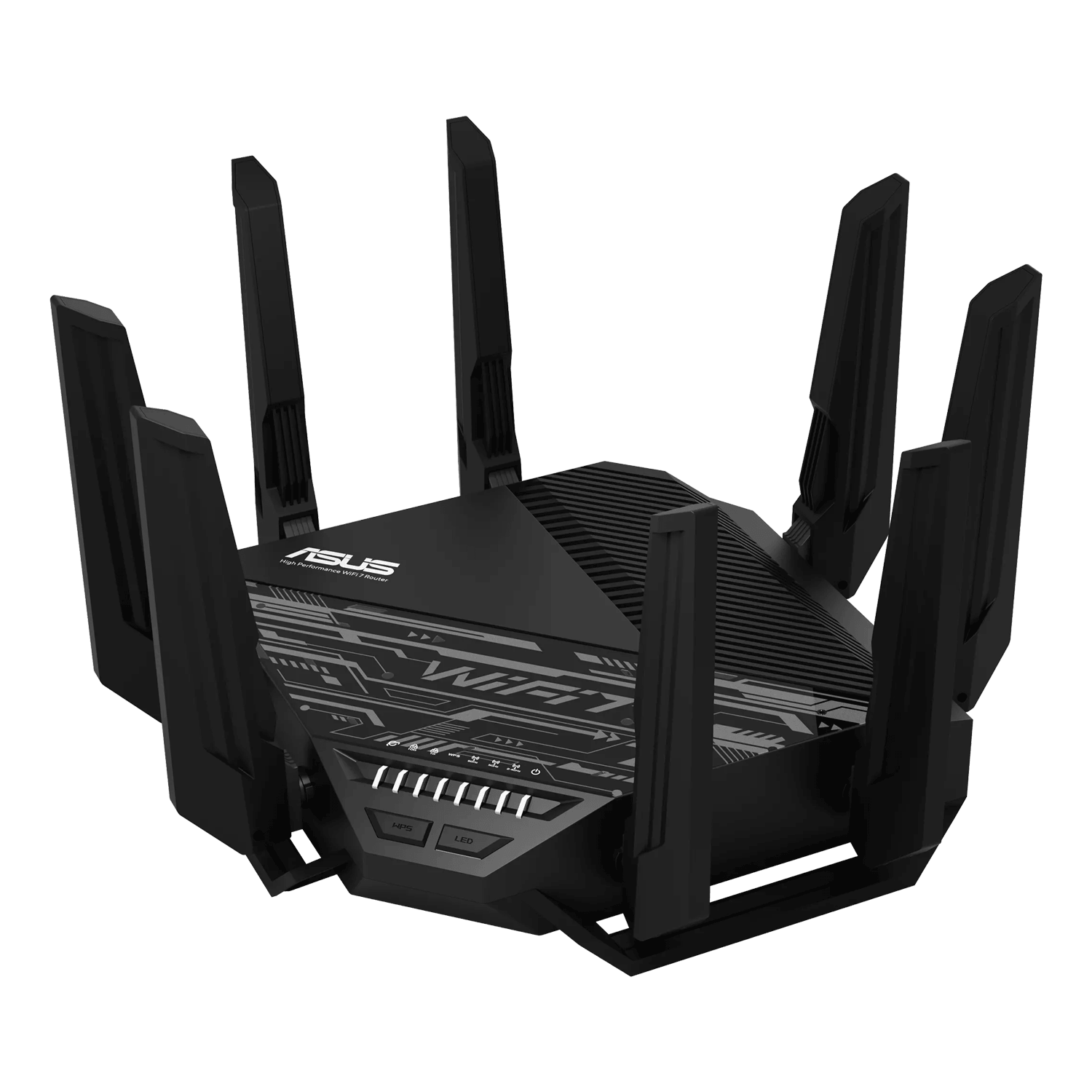

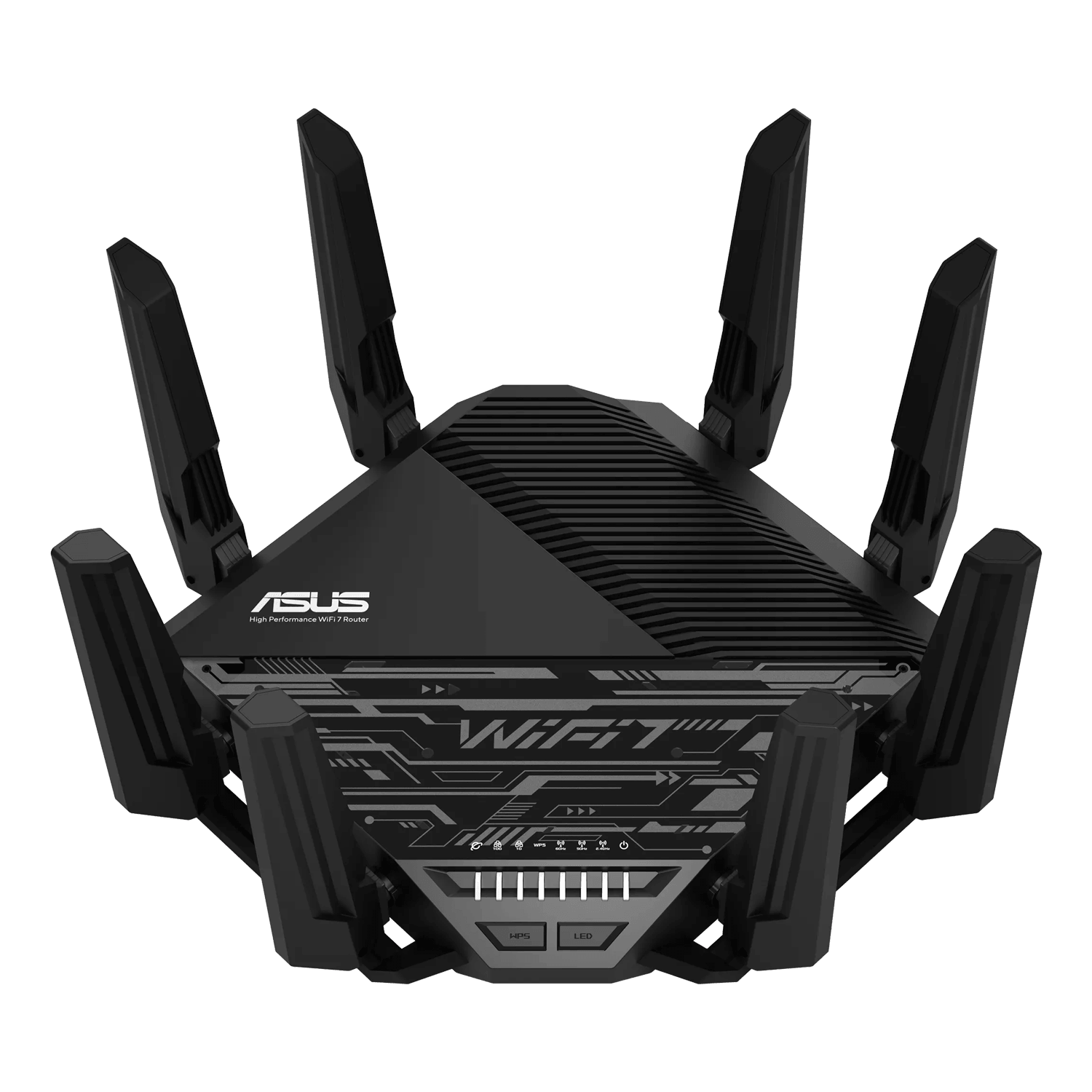

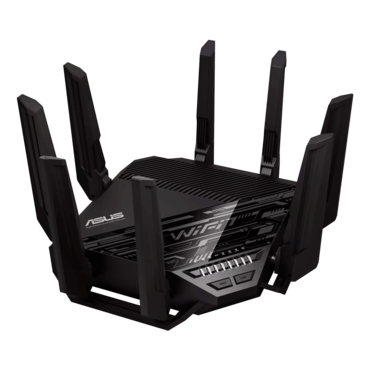

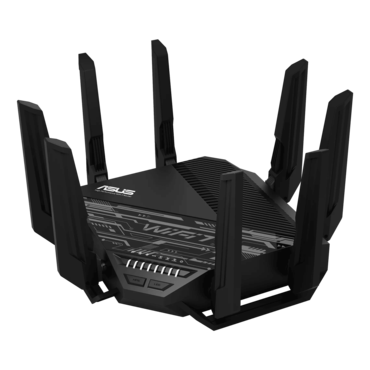

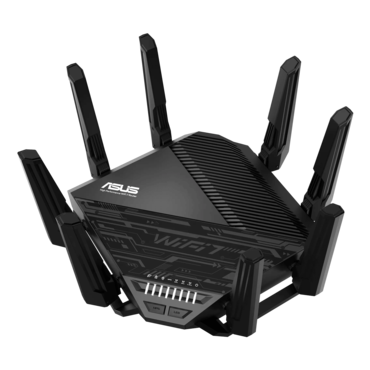

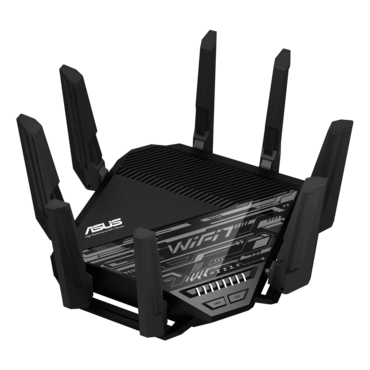

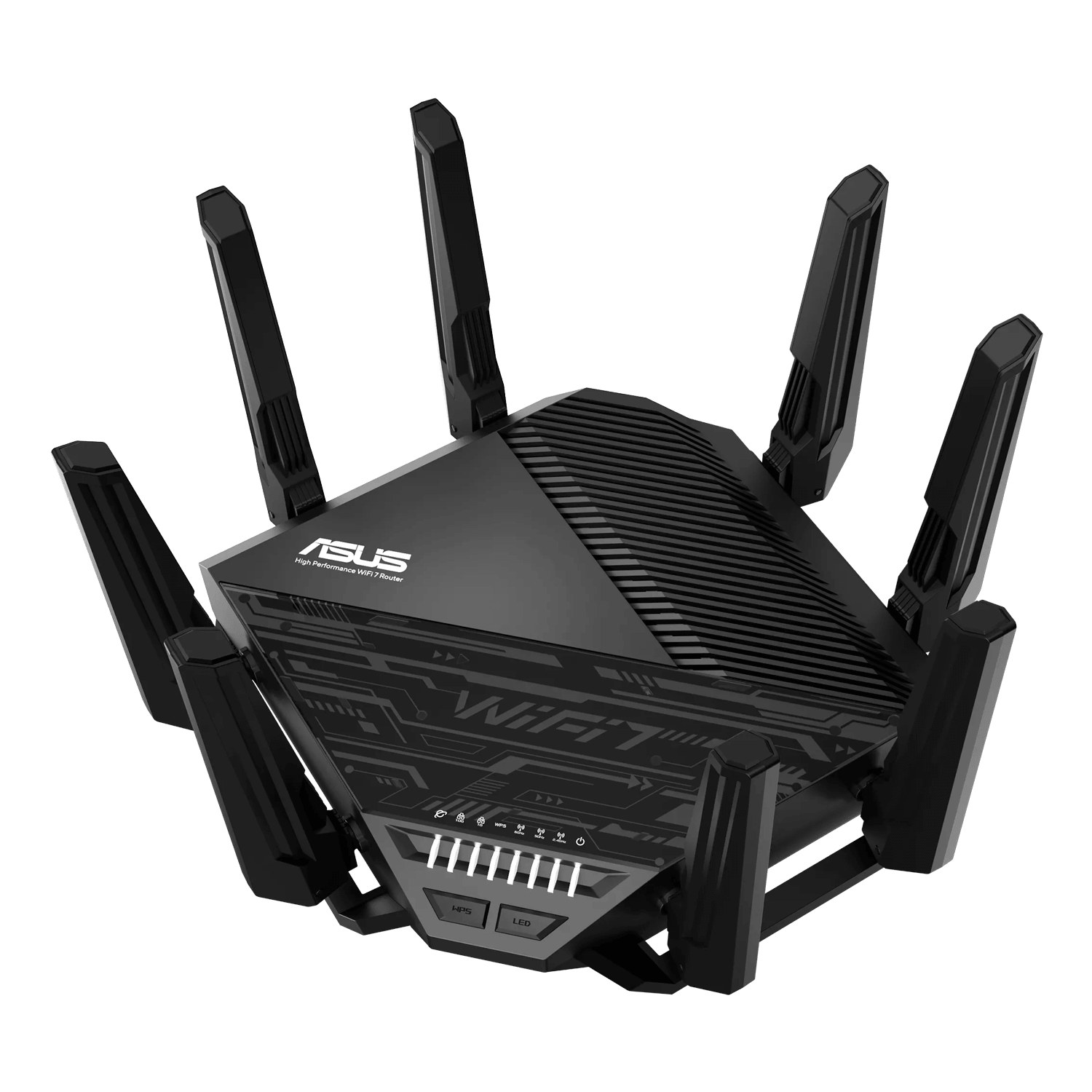

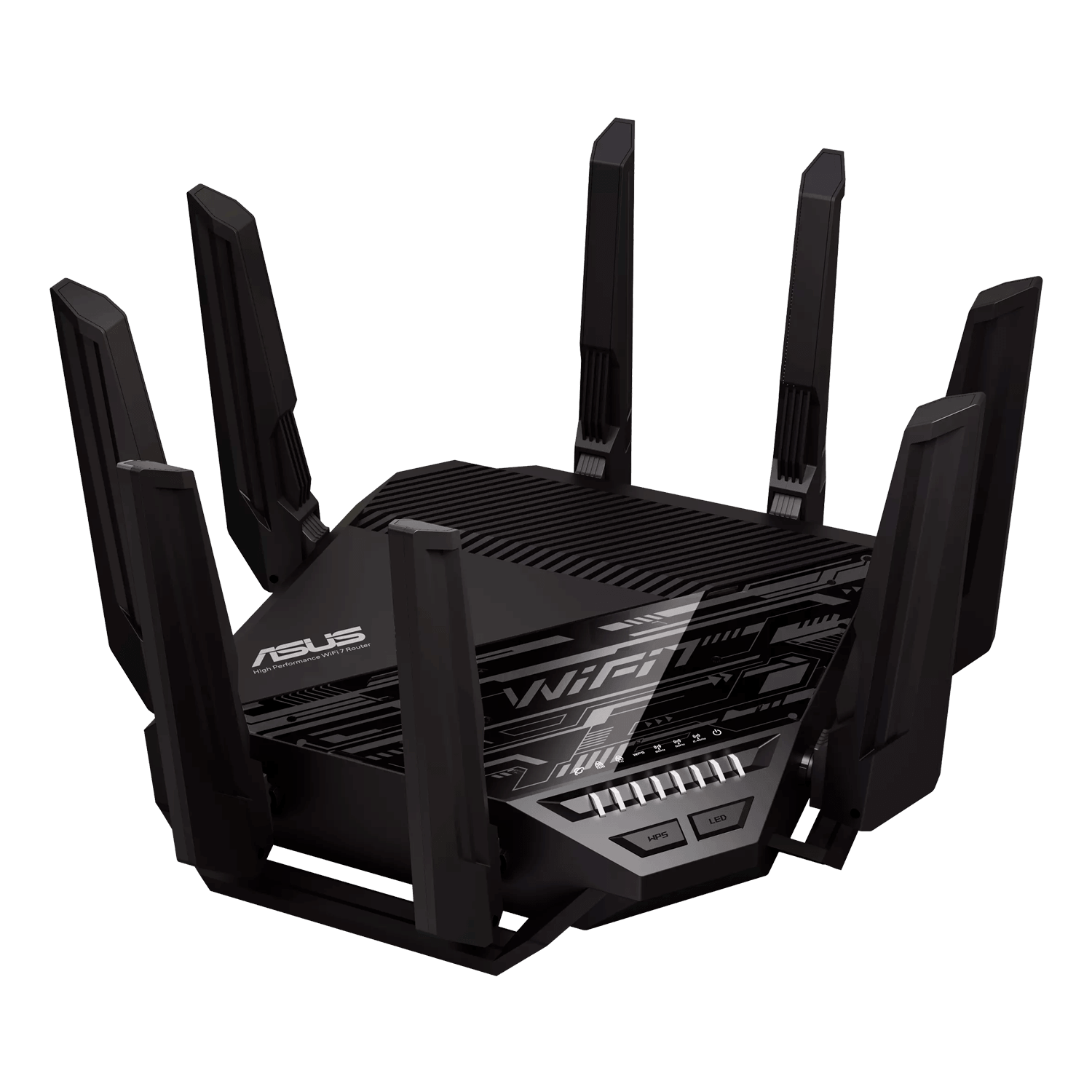

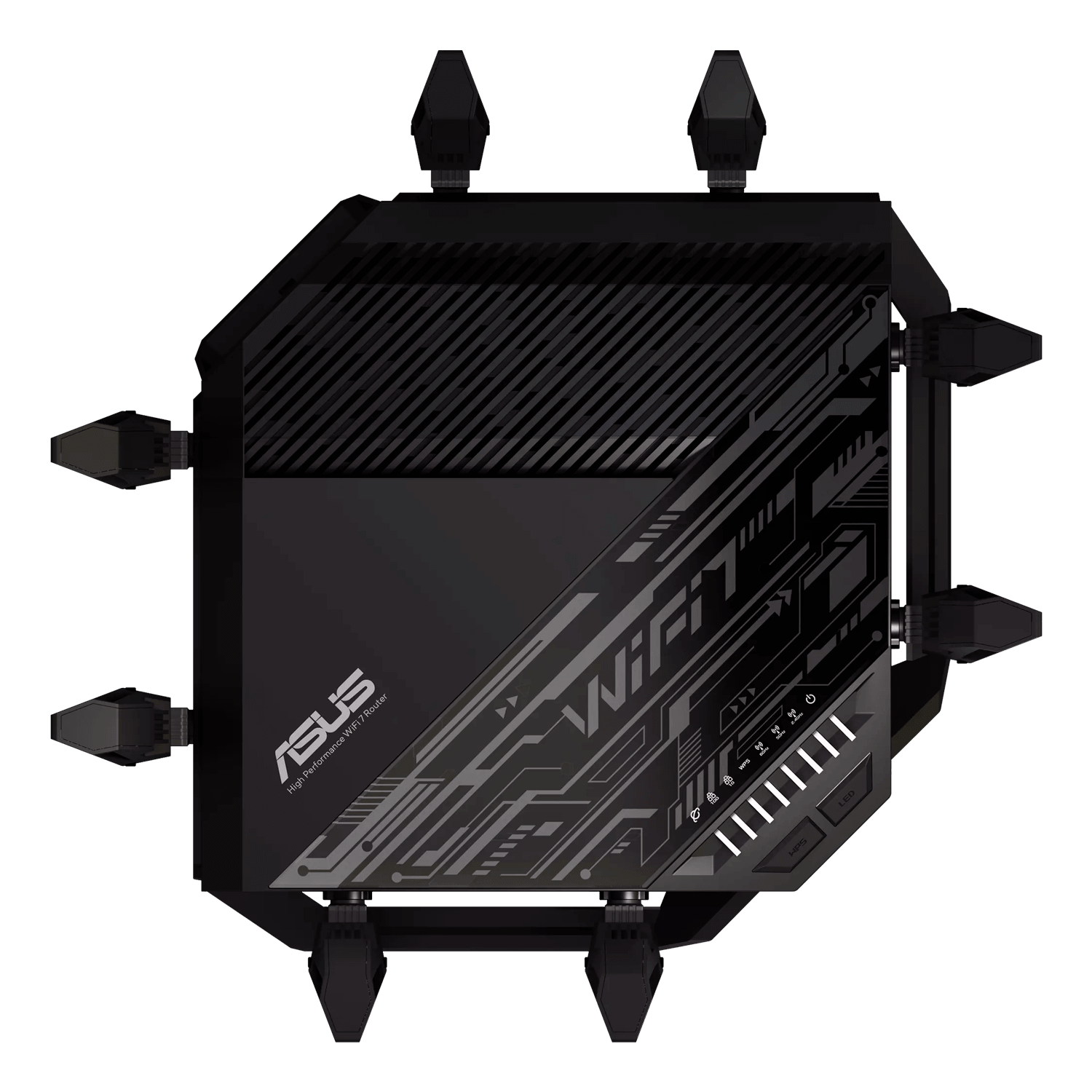

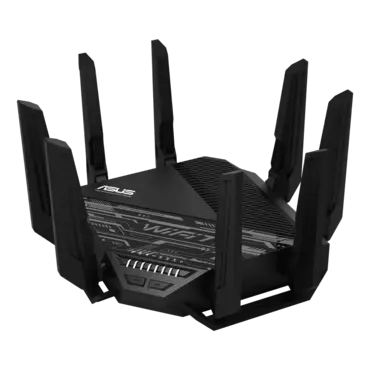

RT-BE96U, IEEE 802.11be, Tri-Band 2.4GHz / 5GHz / 6GHz, 1376 / 5764 / 11529 Mbps, 6xRJ45, 1 x USB 3.2 Gen 1, 1 x USB 2.0, Retail Wireless Router
- SKU: 16479460
- Manufacturer: ASUS
- MPN: RT-BE96U
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
RT-BE96U, IEEE 802.11be, Tri-Band 2.4GHz / 5GHz / 6GHz, 1376 / 5764 / 11529 Mbps, 6xRJ45, 1 x USB 3.2 Gen 1, 1 x USB 2.0, Retail Wireless Router
ASUS RT-BE96U. WiFi 7* introduces all-new ultrawide 320 MHz channels**, doubling data transmission capacity. You can think of networking as a virtual freeway and the doubled bandwidth as a doubling of the number of lanes. Now larger vehicles are allowed to get on the freeway and can pack more data than ever before.
- Next-gen WiFi Standard – Beyond-fast WiFi 7 (802.11be) with new 320MHz channels in the 6 GHz band and 4096-QAM significantly increases network capacity and throughput, with speeds of up to 19 Gbps
- Multi-link Operation – Links to multiple bands at the same time to ensure stable internet connections and efficient data transfers
- Dual 10 Gbps Ports – Maximized wired connectivity and flexible network port configuration for ultra-fast backhaul applications with dual 10G ports
- Subscription-free Network Security?– With commercial-grade AiProtection Pro powered by Trend Micro™, plus a one-tap security scan and Safe Browsing
- Advanced Parental Controls?– Protect your kids online with instant monitoring, content filters and customized settings for every connected device
- Comprehensive VPN Features – Including the Instant Guard mobile app for secure connection over public WiFi
- AiMesh Extendable Router – Enables whole home seamless roaming with rich, advanced features
| Model | RT-BE96U |
| Network Standard |
IPv6 IPv4 WiFi 7 (802.11be) WiFi 6E (802.11ax) WiFi 6 (802.11ax) WiFi 5 (802.11ac) WiFi 4 (802.11n) IEEE 802.11g IEEE 802.11b IEEE 802.11a |
| Product Segment | BE19000 ultimate BE performance : 1376+5764+11529 Mbps |
| WiFi Data Rate |
WiFi 7 (802.11be) (6GHz): up to 11529 Mbps WiFi 7 (802.11be) (5GHz): up to 5764 Mbps WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps |
| Antenna | External antenna x 8 |
| Transmit / Receive | 6GHz 4x4 5GHz 4x4 2.4GHz 4x4 |
| Processor | 2.6GHz quad-core processor |
| Memory | 256 MB Flash and 2 GB RAM |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth |
| Operating Frequency | 6 GHz 5 GHz 2.4 GHz |
| Operating Mode |
Repeater Mode Media Bridge Mode Access Point Mode AiMesh Node Mode Wireless Router Mode |
| I/O Ports |

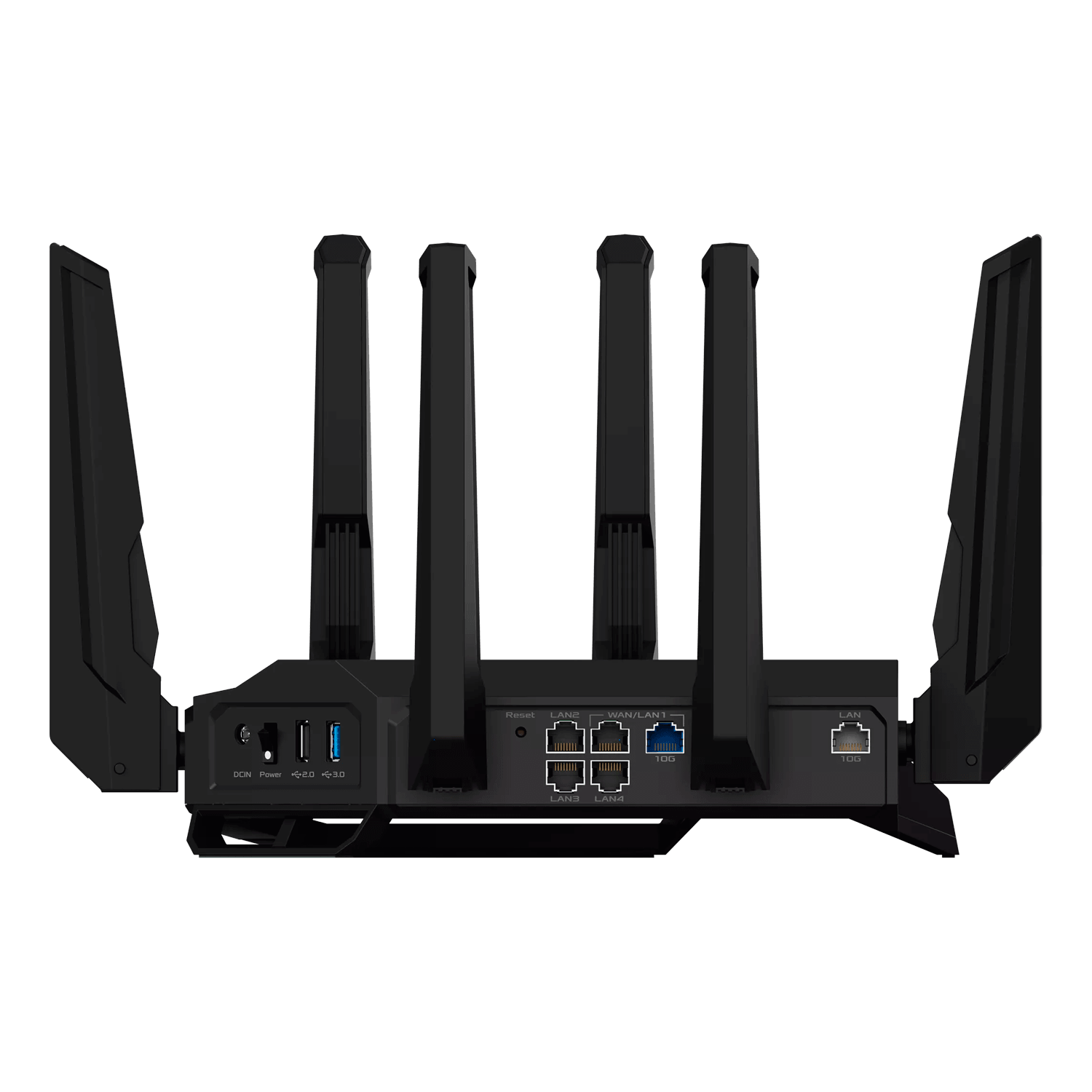

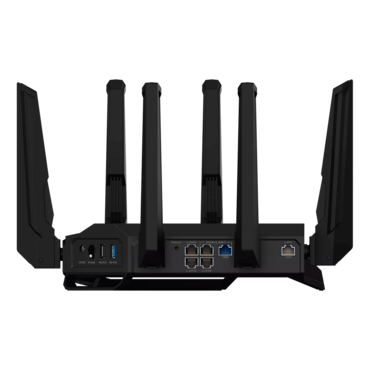

1 x 10Gbps for WAN/LAN + 1 x RJ45 10/100/1000Mbps for WAN/LAN 3x RJ45 10/100/1000Mbps for LAN, 1 x 10Gbps for LAN USB 3.2 Gen1 x1, 2.0 x1 |
| Buttons | WPS Button, Reset Button, Power Switch, LED on/off Button |
| LED Indicator |
WAN x1 10G LAN x1 1G LAN x1 WPS x1 6GHz x1 5GHz x1 2.4GHz x1 Power x1 |
| Power Supply | AC Input : 110V~240V(50~60Hz)DC Output : 19 V with max. 3.42 A current ; 19.5 V with max. 3.33 A current |
| Package Content | RT-BE96U WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 1870 g |
| Product Dimensions | 350.6*350.6*217.6 |
| AiMesh | AiMesh, • Primary AiMesh Router, • AiMesh Node |
| Game | Mobile Game Mode, Gear Accelerator, OpenNAT (Game Profile) |
| Parental Control | "Allow you to block access to unwanted websites and apps.", Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64, • Maximum Parental Control Content Filter Rule : 64 |
| Guest Network | "The Guest Network provides Internet connection for guests but restricts access to your local network.", • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5, Guest Network Connection Time Limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal |
| Security |
AiProtection, VPN, WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64 |
| AiProtection | AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking |
| VPN | Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion |
| Traffic Control | Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History |
| WAN |
• Automatic IP • L2TP • PPTP • PPPoE Internet Connection Type :, Dual WAN, WAN Aggregation, 3G / 4G LTE dongle, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, • PPPoE Relay • SIP Pass-Through • H.323 Pass-Through • RTSP Pass-Through • IPSec Pass-Through • L2TP Pass-Through • PPTP Pass-Through NAT Passthrough : |
| LAN | DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 128, Wake on LAN (WOL) |
| Wireless | MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming |
| USB application |
• ext4 • ext3 • ext2 • vFAT • NTFS • HFS+ File System :, Safely Remove Disk, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges |
| User Interface | WEB: ASUSWRT, APP: ASUS Router APP |
| Administration | Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update |
