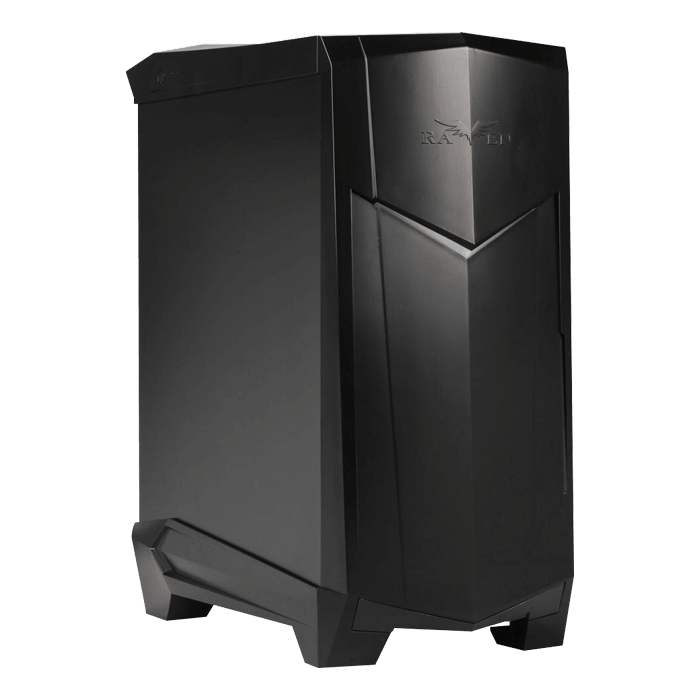

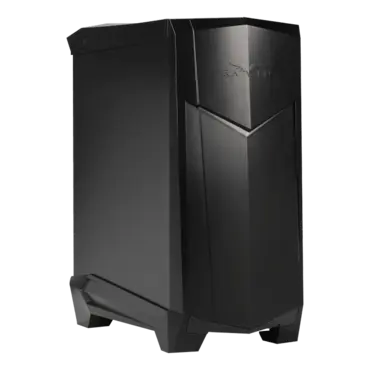

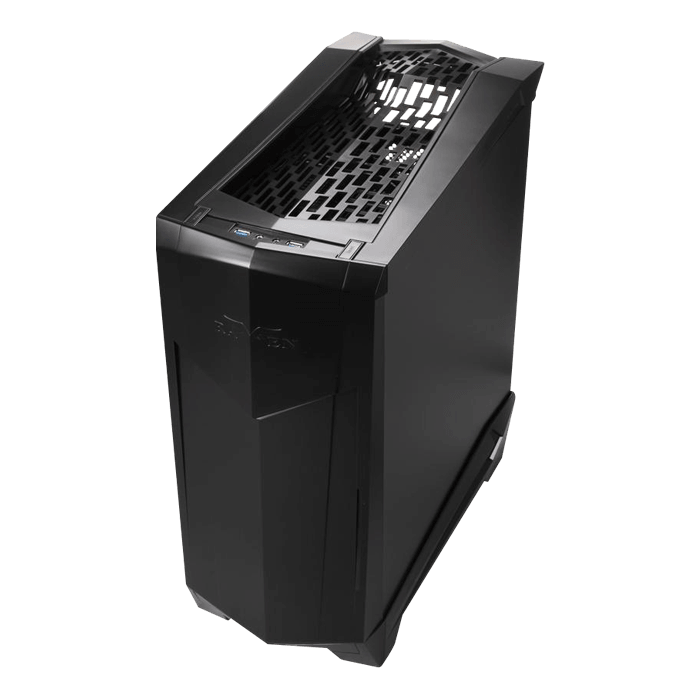

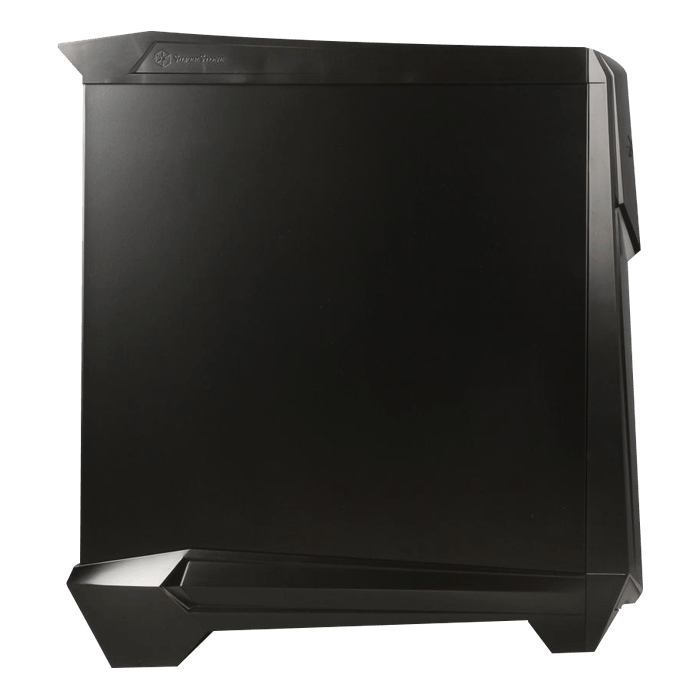

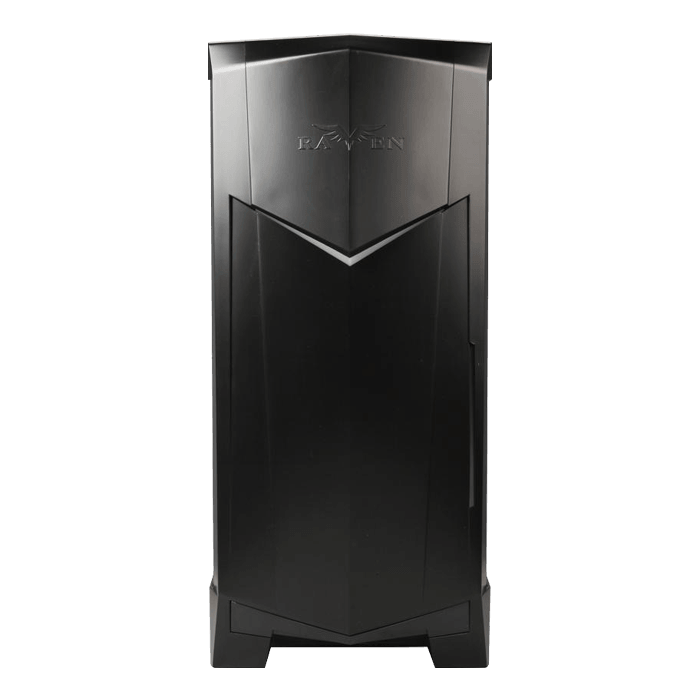

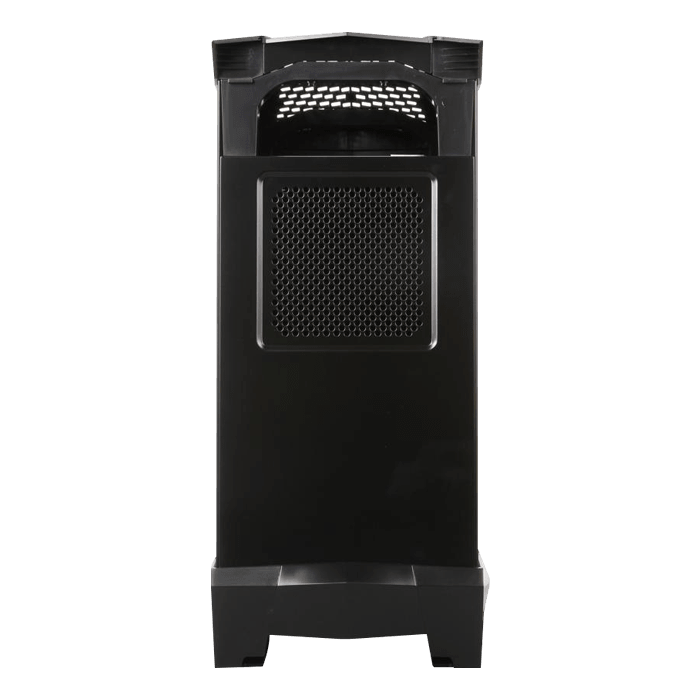

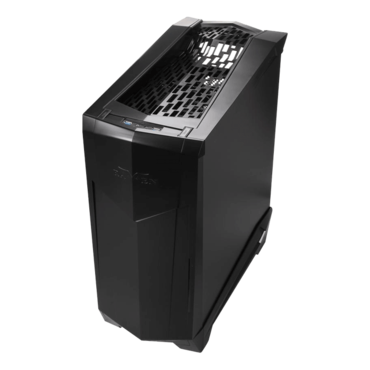

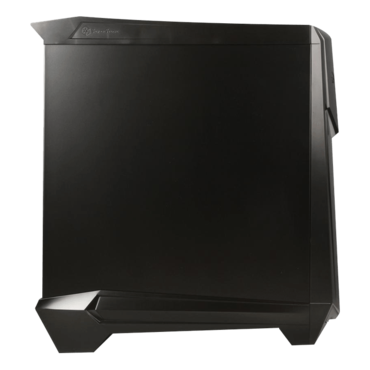

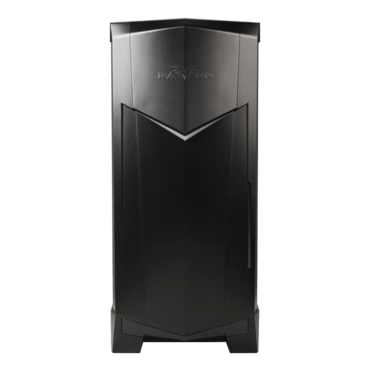

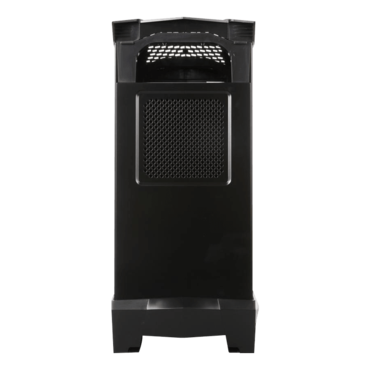

RV05, No PSU, ATX, Black, Mid Tower Case
Quantity:
- SKU: 8679685
- Manufacturer: SILVERSTONE
- MPN: SST-RV05B
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$117.01
- SilverStone RV05
- Signature RAVEN styling touches
- Revolutionary 90 degree motherboard mounting from RAVEN RV01
- Breakthrough 5.25 inch bay-free design for unprecedented power to size ratio
- Two Air Penetrator fans included for great performance and quietness
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Quick-release latch for fast side panel removal
- Front access to main filter for easy maintenance
- Supports for various liquid cooling radiator sizes
| Model No. | SST-RV05B (black) | |
| Material | Plastic outer shell, steel body | |
| Motherboard | SSI-CEB, ATX, Micro-ATX | |
| Drive bay | External | Slim slot-loading optical x 1 |
| -- | ||
| Internal | 3.5" x 2, 2.5" x 2 | |
| Cooling system | Front | -- |
| Rear | -- | |
| Side | -- | |
| Top | 120mm fan slot x 1 | |
| Bottom |
180mm AP fan x 2, 600/900/1200rpm, 17/25/34dBA Downward compatible with 120mm fan x 3, or 140mm fan x 2 |
|
| Internal | -- | |
| Radiator support | Front | N/A |
| Rear | 120mm x 1 | |
| Top | 120mm x 1 | |
| Bottom | 120mm x 3 / 140mm x 2 / 180mm x 2 | |
| Expansion slot | 7 | |
| Front I/O port |
USB 3.0 x 2 Audio x 1 MIC x 1 |
|
| Power supply | Optional  PS2(ATX) | |
| Expansion card | Compatible up to 12.3" (312mm) long, width restriction-6.57" (166mm) | |
| Limitation of CPU cooler | 162mm | |
| Net weight | 7.6kg | |
| Dimension |
242mm (W) x 529mm (H) x 498mm (D), 63.8 liters 9.53" (W) x 20.83" (H) x 19.61" (D), 63.8 liters |
|
