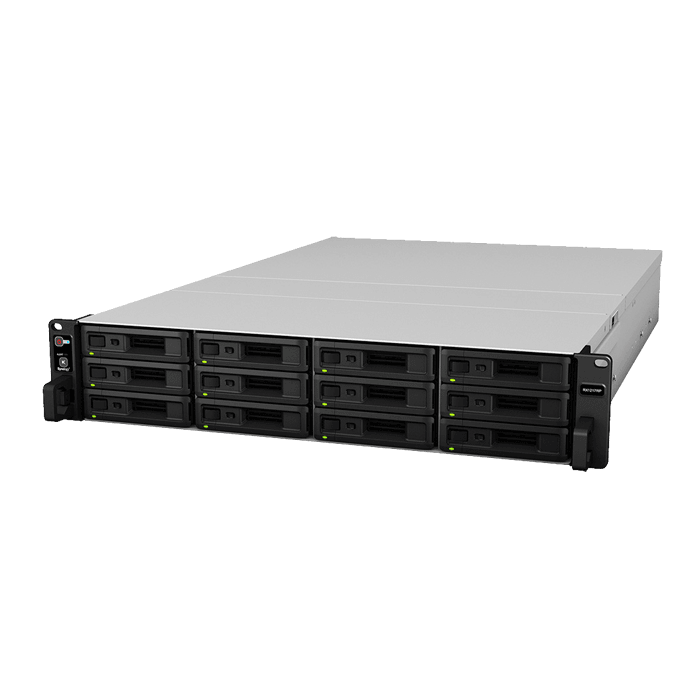

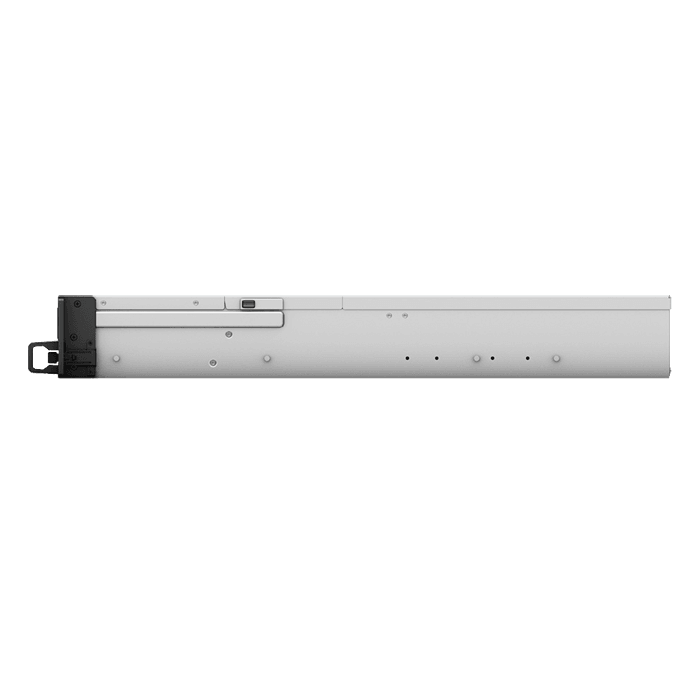

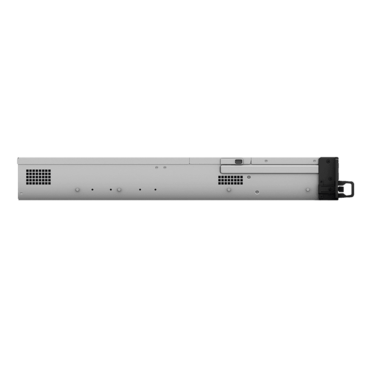

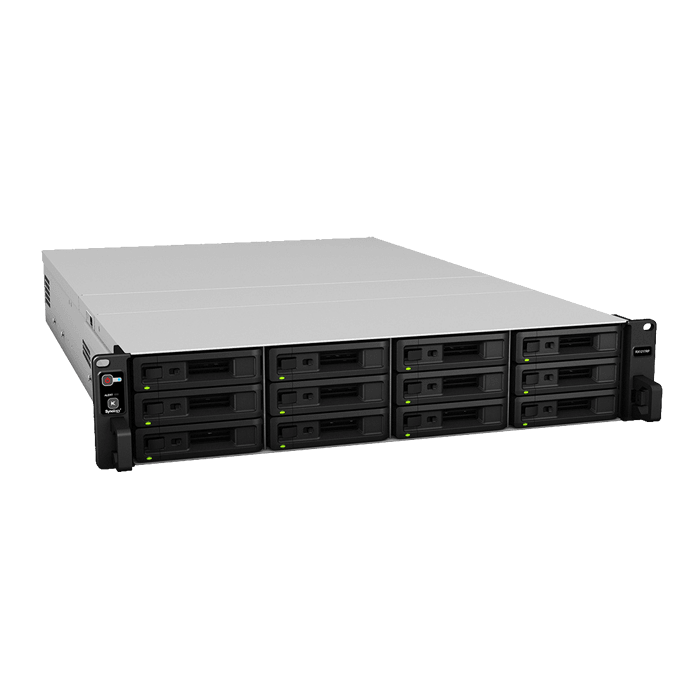

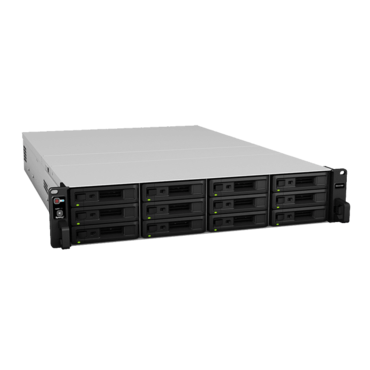

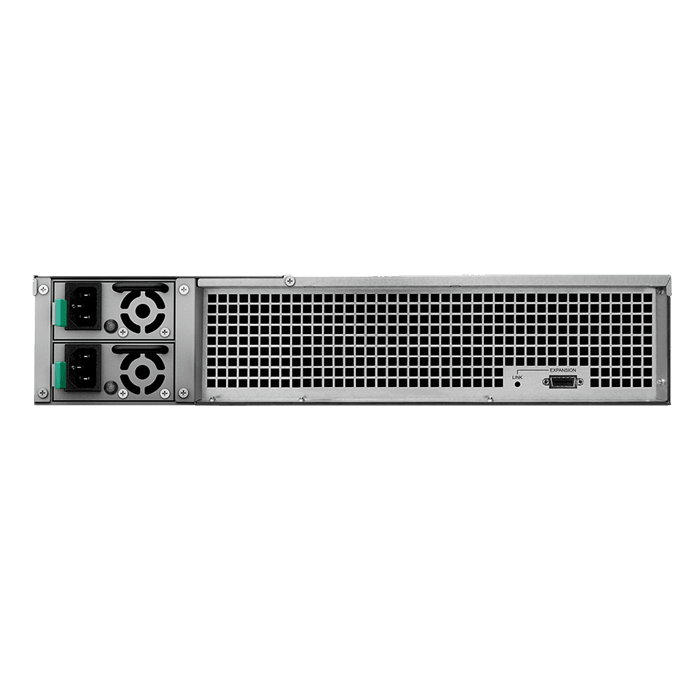

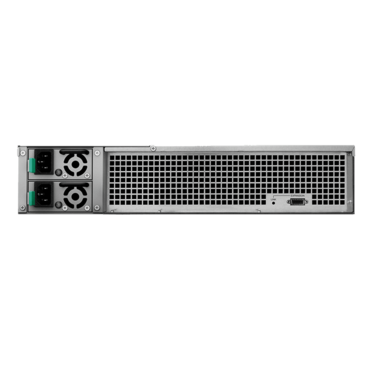

RX1217 2U SATA RAID Expansion Enclosure, SATA3 / 12, 500W PSU

Quantity:
  • SKU: 10739413
  • Manufacturer: SYNOLOGY
  • MPN: RX1217
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,547.04
Quantity:
Hardware Specifications
Applied Models RS3617xs
Note DSM version requirement: 6.0.1-7393 or later version
Storage
Drive Bay(s) 12
Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 120 TB (10 TB HDD x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
Infiniband port 1
Appearance
Size (Height x Width x Depth) 88 mm x 430.5 mm x 664 mm
88 mm x 430.5 mm x 692 mm (for RP model)
Weight 12.7 kg
13.4 kg (for RP model)
Power
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 500W
2 X 500W (for RP model)
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 68.60 W (Access)
27.45 W (HDD Hibernation)
71.32 W (Access, for RP model)
31.20 W (HDD Hibernation, for RP model)
British Thermal Unit 234.23 BTU/hr (Access)
93.73 BTU/hr (HDD Hibernation)
243.52 BTU/hr (Access, for RP model)
106.53 BTU/hr (HDD Hibernation, for RP model)
Note Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Redundant Power Supply (for RP model)
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Others
System Fan 80 mm x 80 mm x 3 pcs
Easy Replacement System Fan
Noise Level* 54.6 dB(A)
54.2 dB(A) (for RP model)
Note Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
Certification
  • FCC Class A
  • CE Class A
  • BSMI Class A
Warranty 5 Years
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • AC Power Cord X 2 (for RP model)
  • Expansion Cable: Infiniband X 1
  • Quick Installation Guide X 1
Optional Accessories Synology RKS1317 - Rail Kit Sliding
