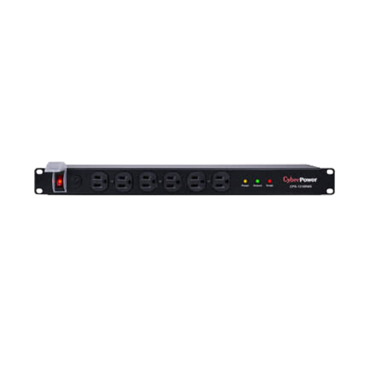

Engineered for the most demanding applications, the professional-grade Rackbar™ CPS1215RMS safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the CPS1215RMS also performs superbly for home office use, providing 1800 joules of protection, 15-Amp electrical capacity with circuit breaker, and 12 surge-protected outlets (6 front, 6 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. The CPS1215RMS has a 1U racksize and can be mounted vertically or horizontally.
Input | |
---|---|
Voltage | 120 V |
Plug Type | NEMA 5-15P |
Plug Style | Straight |
Cord Length | 15 ft |
Switch | Lighted On/Off |
Output | |
Outlet Type | NEMA 5-15R |
Outlets - Front | 6 |
Outlets - Rear | 6 |
Outlets - Total | 12 |
Surge Protection & Filtering | |
Surge Suppression | 1,800 joules |
Clamping Voltage | 330 V |
EMI/RFI Filtration | 150 KHz – 150 MHz |
Physical | |
Rack Size | 1U |
Dimensions - W×H×D (in) | 17.25 × 1.75 × 4.75 inches |
Weight (lbs) | 5.0 lbs |
Environmental | |
Operating Temperature | -4 – 115 °F (-20 – 46 °C) |
Operating Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
Maximum Operating Elevation | 10,000 ft (3,000 m) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
Certifications | |
Safety | UL Recognized |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | Limited Lifetime |
Connected Equipment Guarantee | None |
