Radeon™ Pro W6600, 8GB GDDR6, Graphics Card

  • SKU: 14559481
  • Manufacturer: AMD
  • MPN: 100-506208
Starting At
Radeon™ Pro W6600, 8GB GDDR6, Graphics Card

AMD Radeon™ Pro W6600 (100-506208). Delivering 8 GB of High-Performance Memory, Hardware Raytracing, Optimizations for 4 Ultra-HD HDR Displays, Accelerated Software Multi-Tasking, PCIe® 4.0 for Advanced Data Transfer Speeds, and Certifications for Many Popular Applications.

GPU Specifications
Hardware Raytracing Yes
Lithography TSMC 7nm FinFET
Ray Accelerators 28
Stream Processors 1792
Compute Units 28
Peak Half Precision (FP16) Performance 20.8 TFLOPs
Peak Single Precision (FP32) Performance 10.4 TFLOPs
Transistor Count 11.06 Billion
OS Support Windows 10 - 64-Bit Edition
Linux x86_64

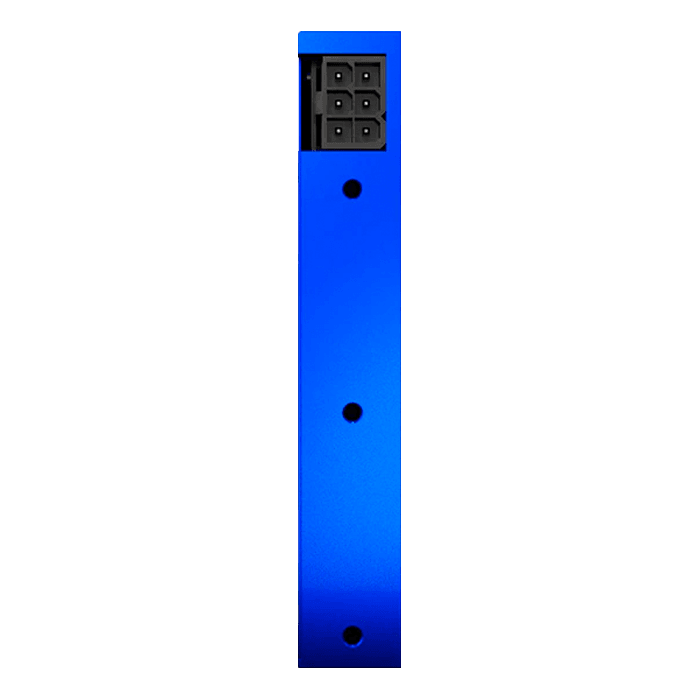

External Power Connectors 1x PCIe® 6-pin
Total Board Power (TBP) 130W Peak
PSU Recommendation 350W Minimum
GPU Memory
Dedicated Memory Size 8 GB
Dedicated Memory Type GDDR6
Infinity Cache 32 MB
Memory Interface 128-bit
Peak Memory Bandwidth Up to 224 GB/s
Memory ECC Support No
Board Specifications
Form Factor PCIe® Add-in Card
Bus Type PCIe® 4.0 x8
Cooling Active
Display Outputs
DisplayPort™ 4x DisplayPort™ 1.4 with DSC
Display Configurations 4x @ 5120x2880px (5K)
1x @ 7680x4320px (8K)
HDR Support Yes
8K Support Yes
Board Height Full Height
Board Length 9.5" (241 mm)
Board Width Single Slot
Additional Features
Supported Rendering Formats 4K H264 Encode and Decode
AV1 Decode
H265/HEVC Encode and Decode
Supported Technologies AMD Remote Workstation
AMD Radeon™ Media Engine
AMD Radeon™ PRO Software
AMD Radeon™ VR Ready Creator
AMD Eyefinity Technology (Professionals)
AMD Radeon™ ProRender
3D Stereo Support Yes
Software API Support
DirectX® 12.0 (feature level 12_1)
OpenGL® 4.6
OpenCL™ 2.1
Product Basics
Product Family AMD Radeon™ Pro
Product Line AMD Radeon™ PRO W6000 Series
Platform Desktop
Launch Date 06/08/2021
