The ROG Strix Radeon™ RX 6600 XT amps Full HD frame rates to meet the demands of the latest high-speed displays. Dual Axial-tech fans efficiently blast air through a large heatsink to keep the GPU chilled, and top-shelf capacitors, chokes, and MOSFETs deliver the perfect amount of clean power. A host of creature comforts, including a Dual BIOS switch, 0dB mode, and metal backplate up the ante to make this beast the ideal choice for your next gaming rig.
|Graphic Engine||Radeon RX 6600 XT|
|Bus Standard||PCI Express 4.0|
|Video Memory||8GB GDDR6|
OC mode : up to 2607 MHz (Boost Clock)/up to 2448 MHz (Game Clock)
Gaming mode : up to 2607 MHz (Boost Clock)/up to 2428 MHz (Game Clock)
|Memory Speed||16 Gbps|
|Resolution||Digital Max Resolution 7680 x 4320|

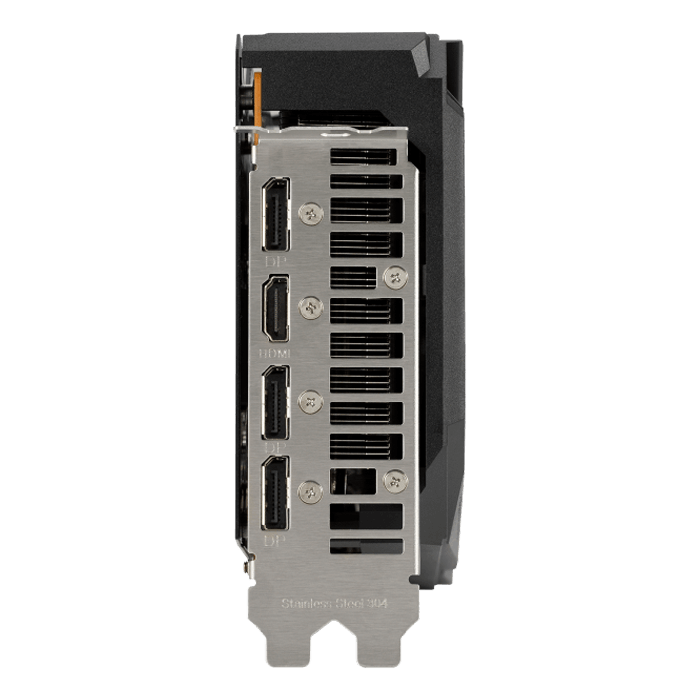

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
|Maximum Display Support||4|
|NVlink/ Crossfire Support||Yes|
1 x ROG Velcro Hook & Loop
1 x Collection card
1 x Speedsetup Manual
|Software||ASUS GPU Tweak II & Drivers: please download all software from the support site.|
243 x 134 x 52 mm
9.6 x 5.3 x 2.0 inch
|Power Connectors||1 x 8-pin|
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page:
* Crossfire Support for DirecX® 12 and Vulkan®
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
