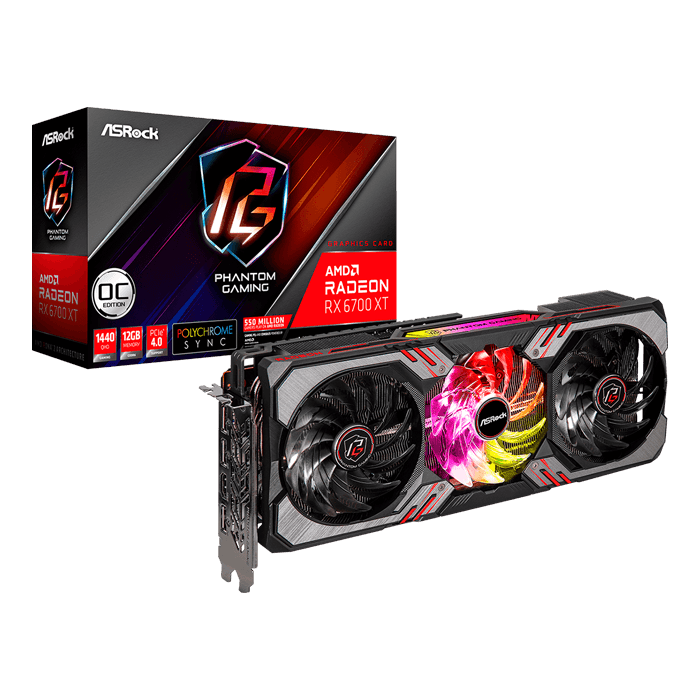

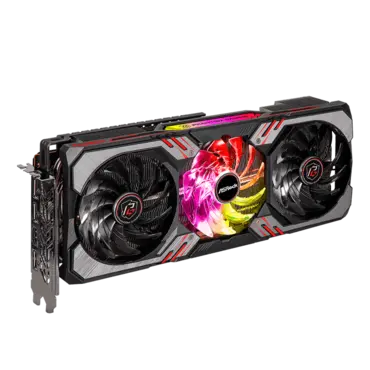

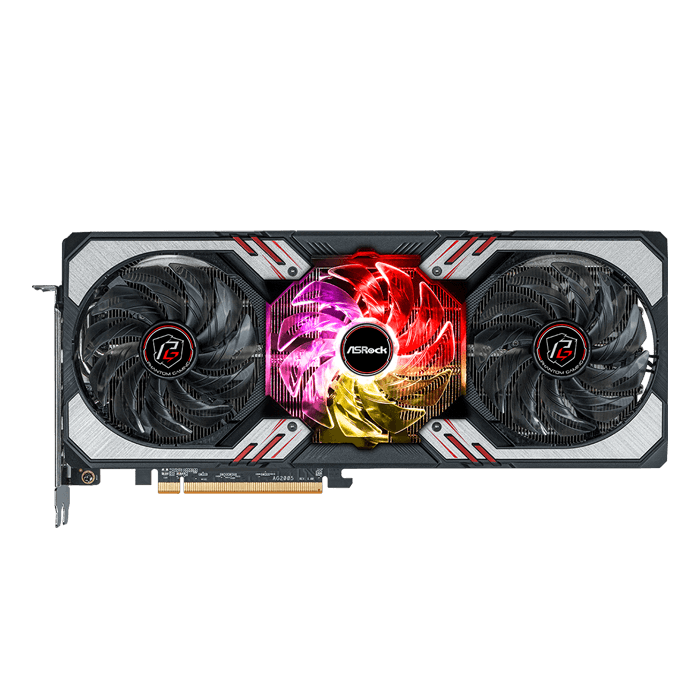

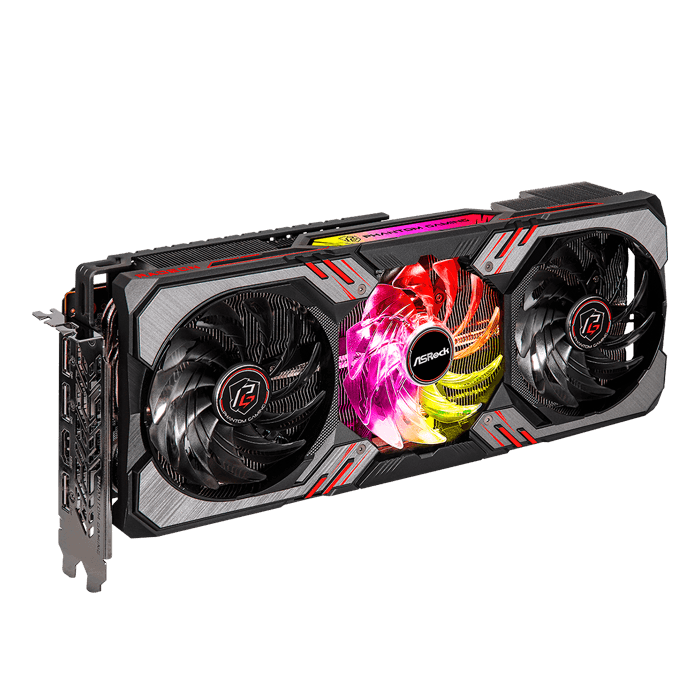

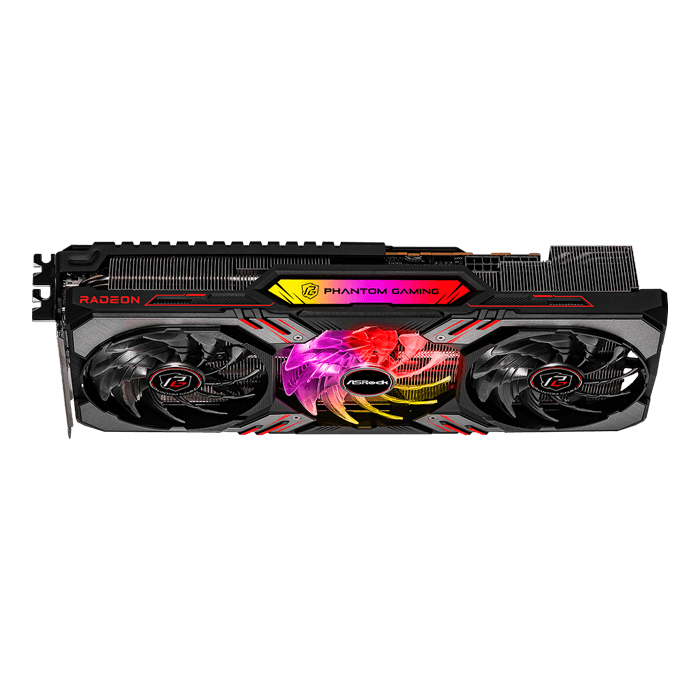

Radeon™ RX 6700 XT Phantom Gaming D 12GB OC, 2457 - 2622MHz, 12GB, GDDR6, Graphics Card
ASRock Radeon™ RX 6700 XT Phantom Gaming D 12GB OC (RX6700XT PGD 12GO). Striped Axial Fan. Designed For Enhanced Airflow. ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
-
Clock: GPU / Memory
Boost Clock: Up to 2622 MHz / 16 Gbps
Game Clock: 2548 MHz / 16 Gbps
Base Clock: 2457 MHz / 16 Gbps -
Key Specifications
7nm AMD Radeon™ RX 6700 XT Graphics
12GB 192-bit GDDR6
AMD RDNA™ 2 Architecture
DirectX 12 Ultimate
PCI® Express 4.0 Support
2 x 8-pin Power Connectors
3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR -
Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame

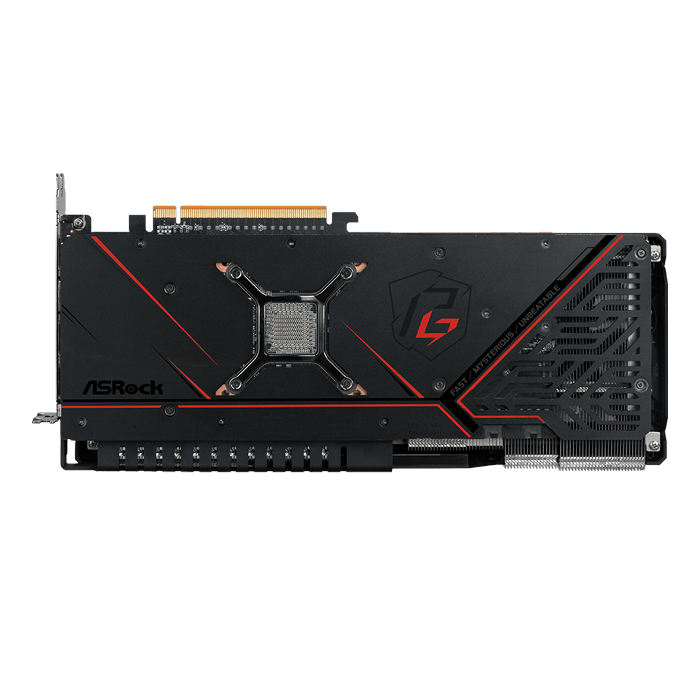

Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card
Graphics Engine | - AMD Radeon™ RX 6700 XT Graphics |
Bus Standard | - PCI® Express 4.0 x16 |
DirectX | - 12 Ultimate |
OpenGL | - 4.6 |
Memory | - GDDR6 12GB |
Engine Clock |
- Boost Clock: Up to 2622 MHz - Game Clock: 2548 MHz - Base Clock: 2457 MHz |
Stream Processors | - 2560 |
Memory Clock | - 16 Gbps |
Memory Bus | - 192-bit |
Resolution | - Digital Max Resolution: 7680x4320 |
Interface |

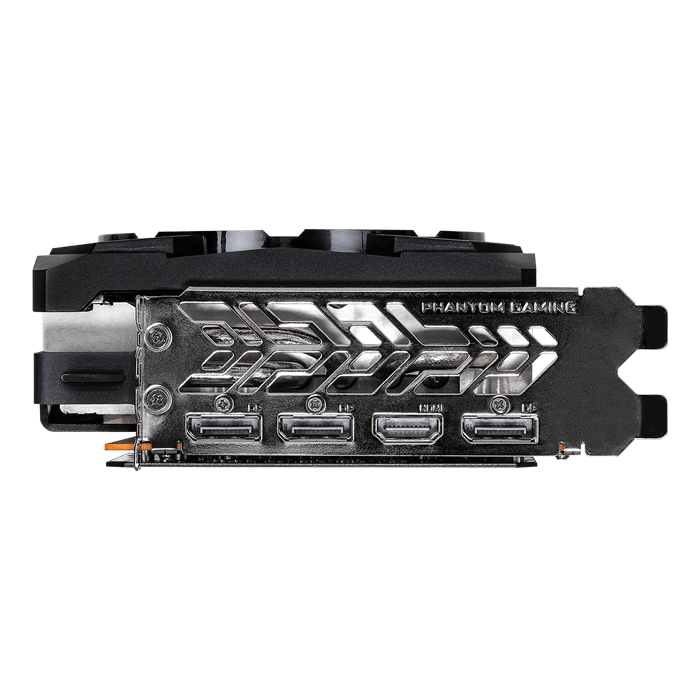

- 3 x DisplayPort™ 1.4 with DSC - 1 x HDMI™ 2.1 VRR |
HDCP | - Yes |
Multi-view | - 4 |
Recommended PSU | - 700W |
Power Connector | - 2 x 8-pin |
Accessories | - 1 x Quick Installation Guide |
Dimensions | - 305 x 131 x 55 mm, 2.75-slot |
Net Weight | - 1187g |
