The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

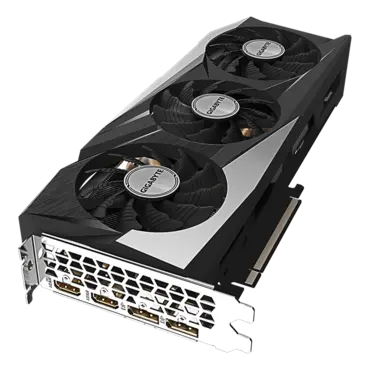

Graphics Processing | Radeon™ RX 6750 XT |
Core Clock | Boost Clock* : up to 2623 MHz (Reference card: 2600 MHz) Game Clock* : up to 2533 MHz (Reference card: 2495 MHz) |
Stream Processors | 2560 |
Process Technology | 7 nm |
Memory Clock | 18000 MHz |
Memory Size | 12 GB |
Memory Type | GDDR6 |
Memory Bus | 192 bit |
Memory Bandwidth (GB/sec) | 432 GB/s |
Card Bus | PCI-E 4.0 |
Digital max resolution | 7680x4320 |
Multi-view | 4 |
Card size | L=281 W=115 H=49 mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 650W |
Power Connectors | 8 Pin*1, 6 Pin*1 |
Output | DisplayPort 1.4a *2 HDMI 2.1 *2 |
Accessories | Quick guide |
Note | * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
